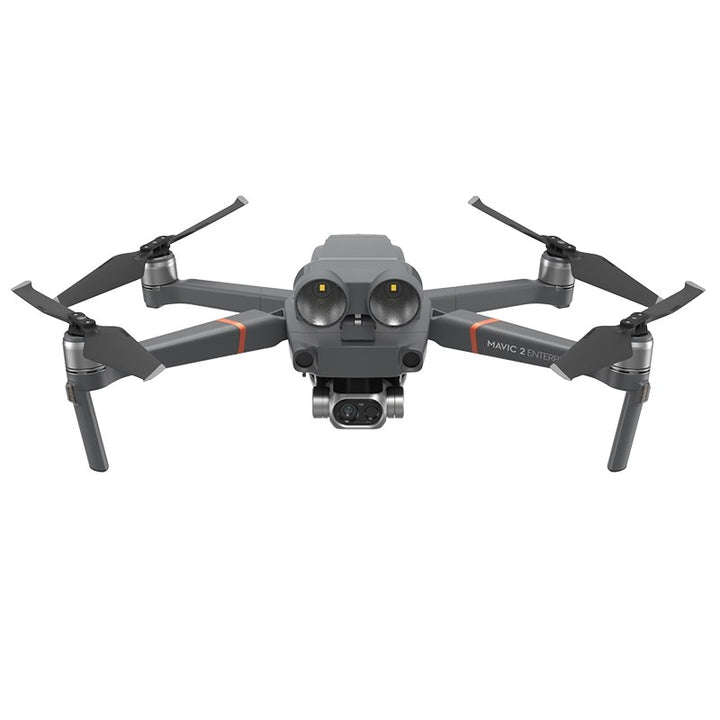

Developed in partnership with FLIR Systems, the Mavic 2 Enterprise Dual features the compact design of DJI’s Mavic 2 Series drones with the same array of advanced controls and accessories found in the Mavic 2 Enterprise. The Mavic 2 Enterprise Dual allows users to measure temperatures and conveniently store images and temperature data for efficient reporting and analysis, adding immediate value to a range of industrial or time-sensitive operations today from utility inspections to emergency response.
R 74,995.00
This product is EOL. Please see the following alternative product:
DJI Mavic 2 enterprise Dual + 2 Extra Batteries
- Visible & Thermal Imagery
- Integrated Radiometric FLIR® Thermal Sensor
- Adjustable Parameters
- For Emissivity & Reflective Surfaces
- Multiple Display Modes:
- FLIR MSX™, Infrared & Visible
Expand your capabilities in close range operations with the Mavic 2 Enterprise – your on-hand tool that is ready to be deployed at the whim of your disposal – anywhere, anytime.
Specifications
| M2ED THERMAL CAMERA |
|
Uncooled VOx Microbolometer
|
|
HFOV: 57°Aperture: f/1.1
|
|
160×120
|
|
12 μm
|
|
8-14 μm
|
|
640×480 (4:3);640×360 (16:9)
|
|
Single shotBurst shooting: 3/5/7 frames
|
|
640×360 @8.7fps
|
|
High Gain: Max ±5% (typical)Low Gain: Max ±10% (typical)
|
|
High Gain: -10° to +140°CLow Gain: -10°to +400°C
|
|
JPEG
|
|
MP4, MOV (MPEG-4 AVC/H.264)
|
| AIRCRAFT |
|
905 g
|
|
Folded： 214×91×84 mmUnfolded: 322×242×84 mmUnfolded+Spotlight：322×242×114 mmUnfolded+Beacon：322×242×101 mmUnfolded+Speaker：322×242×140 mm
|
|
354 mm
|
|
5 m/s (S-mode)4 m/s (P-mode)4 m/s (S-mode with accessories)4 m/s (P-mode with accessories)
|
|
3 m/s (S-mode)3 m/s (P-mode)
|
|
72 kph (S-mode，without wind)50 kph (P-mode，without wind)
|
|
6000 m
|
|
31 min (at a consistent speed of 25 kph)
|
|
29 min27 min (with beacon turned on)28 min (with beacon turned off)22 min (with spotlight turned on)26 min (with spotlight turned off)25 min (with speaker turned on)26 min (with speaker turned off)
|
|
29–38 kph
|
|
35° (S-mode, with remote controller)25° (P-mode)
|
|
200°/s（S-Mode）100°/s（P-Mode）200°/s（S-Mode）100°/s（P-Mode）
|
|
-10°C to 40°C
|
|
GPS+GLONASS
|
|
Vertical:±0.1 m (with Vision Positioning)±0.5 m (with GPS Positioning)Horizontal: ±0.3m (with Vision Positioning)±1.5 m (with GPS Positioning)
|
|
2.400 - 2.4835 GHz5.725 - 5.850 GHz
|
|
2.400 - 2.4835 GHzFCC：≤26 dBmCE：≤20 dBmSRRC：≤20 dBmMIC：≤20 dBm5.725-5.850 GHzFCC：≤26 dBmCE：≤14 dBmSRRC：≤26 dBm
|
|
24 GB
|
| SENSING SYSTEM |
|
Omnidirectional Obstacle Sensing [2]
|
|
Precision Measurement Range:0.5 - 20 mDetectable Range: 20 - 40 mEffective Sensing Speed: ≤ 14m/sFOV: Horizontal: 40°, Vertical: 70°
|
|
Precision Measurement Range: 0.5 - 16 mDetectable Range: 16 - 32 mEffective Sensing Speed: ≤ 12m/sFOV: Horizontal: 60°, Vertical: 77°
|
|
Precision Measurement Range: 0.1 - 8 m
|
|
Precision Measurement Range: 0.5 - 11 mDetectable Range: 11 - 22 m
|
|
Precision Measurement Range:0.5 - 10 mEffective Sensing Speed: ≤ 8m/sFOV: Horizontal: 80°, Vertical: 65°
|
|
Forward, Backward and Sides:Surface with clear pattern and adequate lighting (lux > 15)Upward:Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)Downward:Surface with clear pattern and adequate lighting (lux > 15)Detects diffuse reflective surfaces (>20%)(walls, trees, people, etc.)
|
| REMOTE CON TROLLER |
|
2.400 - 2.483 GHz; 5.725 - 5.850 GHz
|
|
2.400 - 2.483 GHz; 5.725 - 5.850 GHzFCC: 8000 mCE: 5000 mSRRC: 5000 mMIC: 5000 m
|
|
0℃ to 40℃
|
|
2.4 - 2.4835 GHzFCC：≤26 dBm；CE：≤20 dBm；SRRC：≤20 dBm MIC：≤20 dBm5.725 - 5.850 GHzFCC：≤26 dBm；CE：≤14 dBm；SRRC：≤26 dBm
|
|
3950mAh
|
|
2 hours 15 min
|
|
1800mA ⎓ 3.83V
|
|
Thickness Supported:6.5-8.5 mm，Max length: 160 mm
|
|
Folded： 145×80×48 mm (L×W×H)Unfolded: 190×115×100 mm (L×W×H)
|
|
Lightning, Micro USB (Type-B), USB Type-C™
|
| M2E SPOTLIGHT |
|
68x60x41 mm
|
|
USB Micro-B
|
|
30 m
|
|
Max 26W
|
|
FOV17°, Max：11lux @ 30m Straight
|
| M2E BEACON |
|
68x40x27.8 mm
|
|
USB Micro-B
|
|
Avg. 1.6W
|
|
5000 m
|
|
Min Angle：55 cd；Light intensity：157 cd
|
| M2E SPEAKER |
|
68x55x65 mm
|
|
USB Micro-B
|
|
Max 10W
|
|
100 db @ 1 meter distance
|
|
16 kbps
|
| FOOTNOTE |
|
[1] Remote controller required.[2] Omnidirectional Obstacle Sensing includes left/right, up/down, and forward/backward obstacle sensing. Sensing for left/right directions is only available in ActiveTrack or Tripod Mode. Omnidirectional Obstacle Sensing does not fully cover the circumference of a 360-degree arc. And left and right obstacle sensing system only works in specific modes and environments. DJI warranty does not cover any loss caused by crashing when flying left or right, even when ActiveTrack or Tripod mode is activated. Please be aware of your surroundings and App notifications when operating the Mavic 2 to ensure safety. These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended."[3]These specs have been determined through tests conducted with the latest firmware. Firmware updates can enhance performance, so updating to the latest firmware is highly recommended."
|
