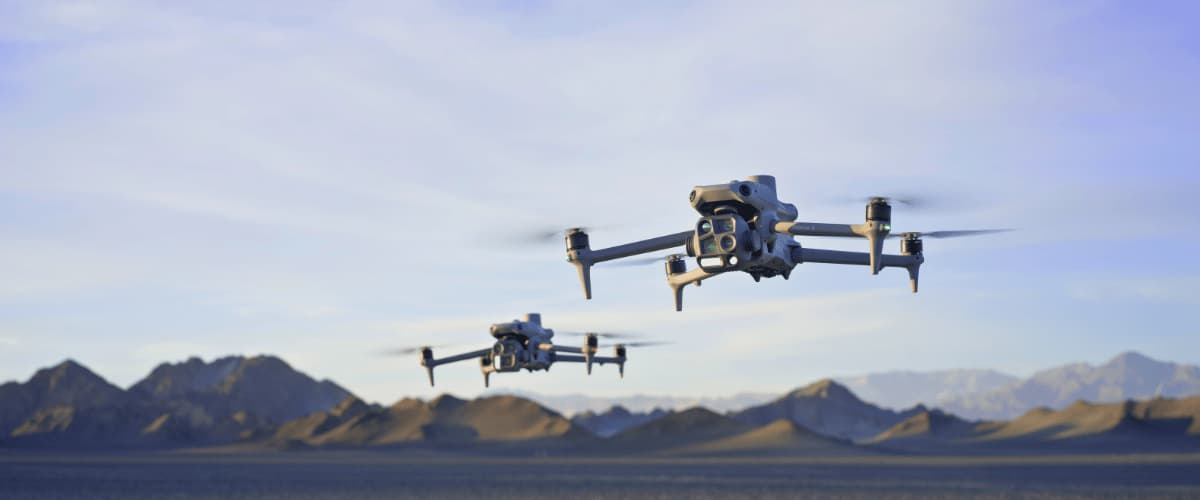

DJI Matrice 4 Series

DJI Matrice 4 Series

DJI Matrice 4 Series

Flagship Intelligent Multi-Sensor Compact Drone

Experience the next generation of intelligent aerial operations with the DJI Matrice 4 Series—a compact, cutting-edge multi-sensor drone series designed for enterprise applications. This flagship lineup includes the Matrice 4T and Matrice 4E, both equipped with advanced features such as AI-powered smart detection and measurement capabilities, enhanced by a built-in laser rangefinder.

With improved sensing technology, these drones offer safer, more reliable flight operations tailored to industry-specific needs. The Matrice 4 Series also boasts significantly upgraded accessories to enhance performance and versatility.

The Matrice 4T is ideal for industries like energy, emergency response, public safety, and forestry conservation, while the Matrice 4E is purpose-built for geospatial applications such as surveying, mapping, construction, and mining.

A new era in intelligent aerial operations begins now.

Two Models, Countless Applications

Wide-Angle Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/1.7, Format Equivalent: 24 mm

Medium Tele Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera

1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

Laser Range Finder

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

Infrared Thermal Camera

Resolution 640 × 512, f/1.0, Equivalent Focal Length: 53 mm, Uncooled VOx Microbolometer, Supports High-Res Mode

NIR Auxiliary Light

FOV: 6°, Illumination Distance: 100 m

Wide-Angle Camera

4/3 CMOS, 20MP Effective Pixels , f/2.8-f/11, Format Equivalent: 24 mm, Mechanical Shutter

Medium Tele Camera

1/1.3″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 70 mm

Tele Camera

1/1.5″ CMOS, 48MP Effective Pixels, f/2.8, Format Equivalent: 168 mm

Laser Range Finder

Measurement Range: 1800 m (1 Hz); Oblique Incidence Range (1:5 Oblique Distance): 600 m (1 Hz) Blind Zone: 1 m; Range Accuracy (m): ± (0.2 + 0.0015 × D)

DJI Matrice 4 Key Features

All You Need to Know About the DJI Matrice 4 Series

The DJI Matrice 4 Series Offers Intelligent Operations With AI

AI Power for Smarter Operations

The integrated AI model is designed to detect vehicles, vessels, and subjects during search and rescue missions or regular flights. It also offers the flexibility to switch to other AI models, broadening the scope of potential applications. Furthermore, it supports high-resolution grid photography and boasts advanced tracking capabilities.

Laser Range Finder, Precise Measurement

The laser range finder provides real-time accurate measurements, enabling tasks such as pinpointing target locations, drawing lines, and calculating areas with ease. This functionality is ideal for applications like marking inspection targets or determining the size of a wildfire. Users can also share information seamlessly with relevant teams through the DJI Pilot QR code or FlightHub 2, improving collaboration and streamlining workflows.

Observation Range Recording

DJI Pilot 2 enhances situational awareness by highlighting the camera frame's center and the observed ground area. It also maps the surveyed region, making it particularly valuable for patrols and rescue operations in mountainous areas where clear landmarks are lacking.

Efficient Flight, Intelligent Operations

Activate cruise control mode to pilot the drone in a specific direction without constantly pressing the control sticks, making long-distance flights easier.

In emergencies or disasters, the drone can automatically adjust its flight path and speed based on the surrounding environment, allowing it to reach a designated location without manual adjustments.

Smart Track allows for precise subject positioning and automatic zoom adjustments, allowing you to switch between subjects easily. It can automatically reacquire a subject even if obscured briefly.

POI enables continuous observation and 3D modeling of buildings while flying around a designated area, greatly enhancing the efficiency of fixed-point observation and modeling tasks.

The DJI Matrice 4 Series Excels In Low-Light Environments

Night Scene Mode

The Matrice 4 series introduces an enhanced night mode, featuring Full-Color night vision with three modes and two levels of advanced noise reduction. With an IR Cut Filter and NIR auxiliary light, it overcomes darkness effortlessly, making search and rescue subjects highly visible.

Smart Low-Light Photo

The DJI Matrice 4 series cameras feature larger apertures and intelligent low-light capabilities, significantly enhancing performance and improving operations during dusk and nighttime.

NIR Auxiliary Light

The DJI Matrice 4T features new NIR illumination hardware, enabling lighting distances of up to 100 meters. This ensures clear visibility of objects in dark environments, making it ideal for applications like wildlife protection.

Thermal Imaging

The DJI Matrice 4T supports infrared High-Res Mode, with image resolutions up to 1280 × 1024. It also offers Ultra-High Resolution, revealing small temperature details for various operations. Each device undergoes temperature accuracy calibration and utilizes an onboard temperature sensor to provide real-time temperature measurements.

Low-Light Fisheye Omnidirectional Sensing

The DJI Matrice 4 series has six high-definition low-light fisheye vision sensors, significantly enhancing visual low-light positioning and obstacle avoidance capabilities. This allows for automatic obstacle avoidance, intelligent rerouting, and safe return in urban low-light environments.

Crystal Clear Vision with the DJI Matrice 4 Series: See Every Detail

Capture Every Detail at A Distance

Enhanced Medium Telephoto

The DJI Matrice 4 Series features a medium telephoto camera, making it ideal for medium-range inspection tasks. Whether inspecting power lines or bridges, it can detect screws and cracks from up to 10 meters away and clearly capture instrument readings at substations.

Super Resolution Telephoto

The DJI Matrice 4 Series' telephoto camera offers significantly enhanced clarity with its 48 MP resolution, allowing it to capture fine details from signs up to 250 meters away. Additionally, the Matrice 4T includes an IR-Cut Filter, enabling seamless 24/7 operation.

Foreground Stabilization for Telephoto Imagery

The enhanced telephoto stabilization ensures that foreground subjects remain steady and clear, even at 10x zoom or higher. This improvement makes it easier to capture detailed visuals in critical scenarios like public safety operations and inspections.

Electronic Dehazing, Clear as Ever

In conditions such as smog or atmospheric humidity, Electronic Dehazing supports three modes (Low, Medium, High) to improve the imaging clarity of the Matrice 4 series to match different operational environments and requirements.

Precision Mapping with the DJI Matrice 4 Series – Effortless and Time-Saving

Rapid 0.5-Second Interval Shooting

The DJI Matrice 4E wide-angle camera supports rapid 0.5-second interval shooting in both orthophoto and oblique photography modes, allowing for high-speed aerial surveying from various angles. Its mapping flight speed can reach up to 21 meters per second, greatly boosting work efficiency.

Multi-Directional Capture, Efficiency Multiplied

5-Directional Oblique Capture

The Matrice 4 series supports advanced 5-directional oblique capture. The gimbal can intelligently rotate and capture at various angles based on the survey area, enabling multiple shots in a single flight—an improvement over previous models, greatly enhancing the efficiency of small drone oblique photography.

3-Directional Ortho Capture

The Matrice 4E supports 3-directional ortho capture, allowing for lateral capturing during ortho collection tasks, which minimizes lateral overlap. A single flight can complete mapping for an area of 2.8 square kilometers. No additional elevation optimization flight is needed to achieve improved elevation accuracy. When paired with DJI Terra’s new capabilities, it further boosts reconstruction efficiency while maintaining high-quality results.

Smart 3D Capture & Precision Modeling
with the DJI Matrice 4 Series

The DJI Matrice 4E supports Smart 3D Capture, enabling users to capture and create a rough model directly on the remote controller. Using this rough model, it quickly generates precise mapping routes that closely follow building surfaces, allowing for detailed measurements and modeling of irregular structures. It also provides the option to display virtual flight paths and waypoint photos, making it easy to assess route safety and coverage area.

Safe Flight, Worry-Free Operation

Fusion Positioning, Safe Return-to-Home

The Matrice 4 series comes equipped with an integrated DJI RTK module, supporting the extended L5 frequency band and featuring a GNSS+Vision Fusion Positioning and Navigation System. This enables visual positioning to update the return-to-home point, allowing for quick takeoff within just 15 seconds. Even in areas without GNSS signals, it can successfully complete the return-to-home procedure, effectively overcoming signal obstructions and interference commonly encountered in urban environments.

Intelligent Guidance, Unobstructed Flight

When the DJI RC Plus 2 Enterprise remote controller is connected to the internet, it can load terrain elevation maps and preload detailed maps. This enables automatic path planning for obstacle avoidance, effectively managing scenarios such as flying at night or through mountainous areas, ensuring the safety of flight operations. The drone has a 5-directional vision assist view system along with downward vision, which aids in providing comprehensive visibility for enhanced protection.

Achieve New Heights in Video Transmission

The O4 Enterprise video transmission system sets a new benchmark in challenging environments. With its 8-antenna system on the Matrice 4 Series and the high-gain antenna on the remote controller, it can achieve up to 25 kilometers of transmission range. Additionally, the system enhances image transmission with a download bandwidth of 20MB/s, more than double the bitrate of the Mavic 3 Enterprise Series, ensuring clearer and more stable image uploads and material downloads.



The Matrice 4 series also supports an optional DJI Cellular Dongle 2. By combining 4G image transmission with the aircraft’s antennas, signal stability is further improved.

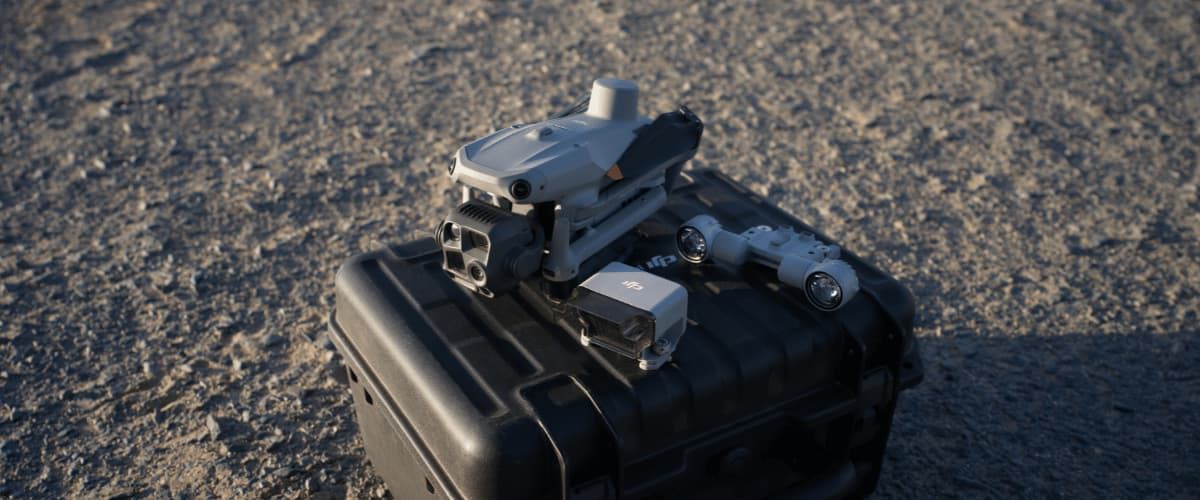

DJI Matrice 4

DJI Matrice 4 Series Offers Enhanced Accessories & Unmatched Performance

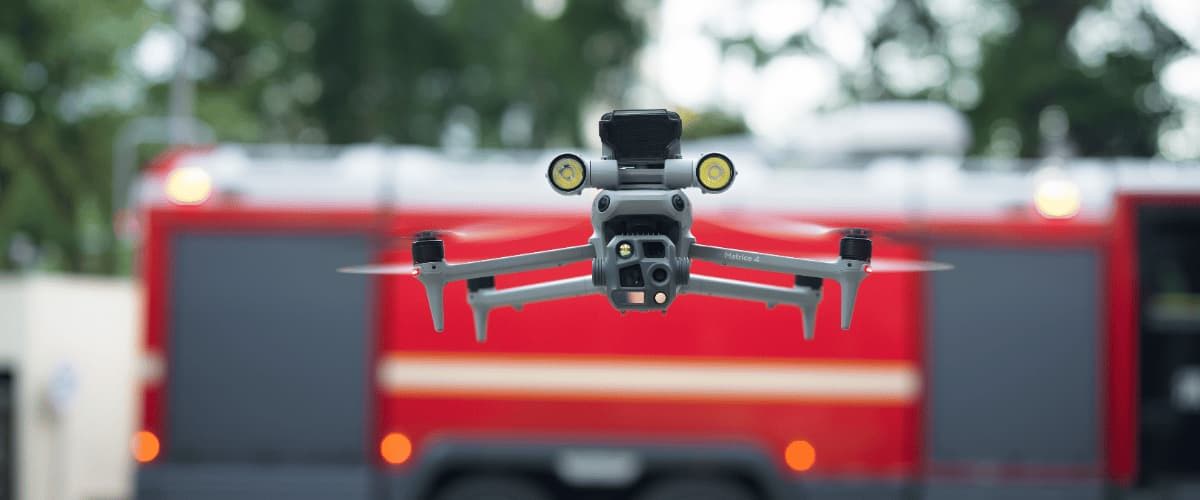

Gimbal-Following Spotlight

The DJI AL1 Spotlight features two modes: always-on and strobe, providing clear illumination of subjects from up to 100 meters away. It intelligently links with the gimbal, synchronizing with the camera's movements to ensure the illuminated area aligns with the camera's view. Additionally, it offers a wide FOV lighting mode for broader coverage in wide-angle settings. The spotlight and speaker can function independently or together, catering to a variety of operational scenarios.

Gimbal-Following Spotlight

The DJI AS1 Speaker delivers louder volume and greater reach, achieving 114 decibels at 1 meter with a broadcast range of up to 300 meters. It supports recorded messages, media imports, and text-to-speech conversion, along with real-time broadcasting and echo suppression. The spotlight and speaker can operate independently or together, adapting to a wide range of operational needs.

Integrated Broadcasting and Lighting

The spotlight or speaker can funtion independently or together, adressing various operational scenarios

High-Precision D-RTK 3 Multifunctional Station

The new D-RTK 3 Multifunctional Station combines high-performance antennas and receiver modules, enabling it to track and process data from major global satellite navigation systems. It supports multiple data transmission links and utilizes a built-in high-performance inertial measurement unit to determine device position and orientation. With these advanced capabilities, it functions as a base station to deliver centimeter-level positioning for multiple drones simultaneously or extend drone operational range in relay station mode. Additionally, the new rover station mode, integrated with the DJI ENTERPRISE app and DJI Terra, provides a comprehensive solution for high-precision aerial surveying applications.

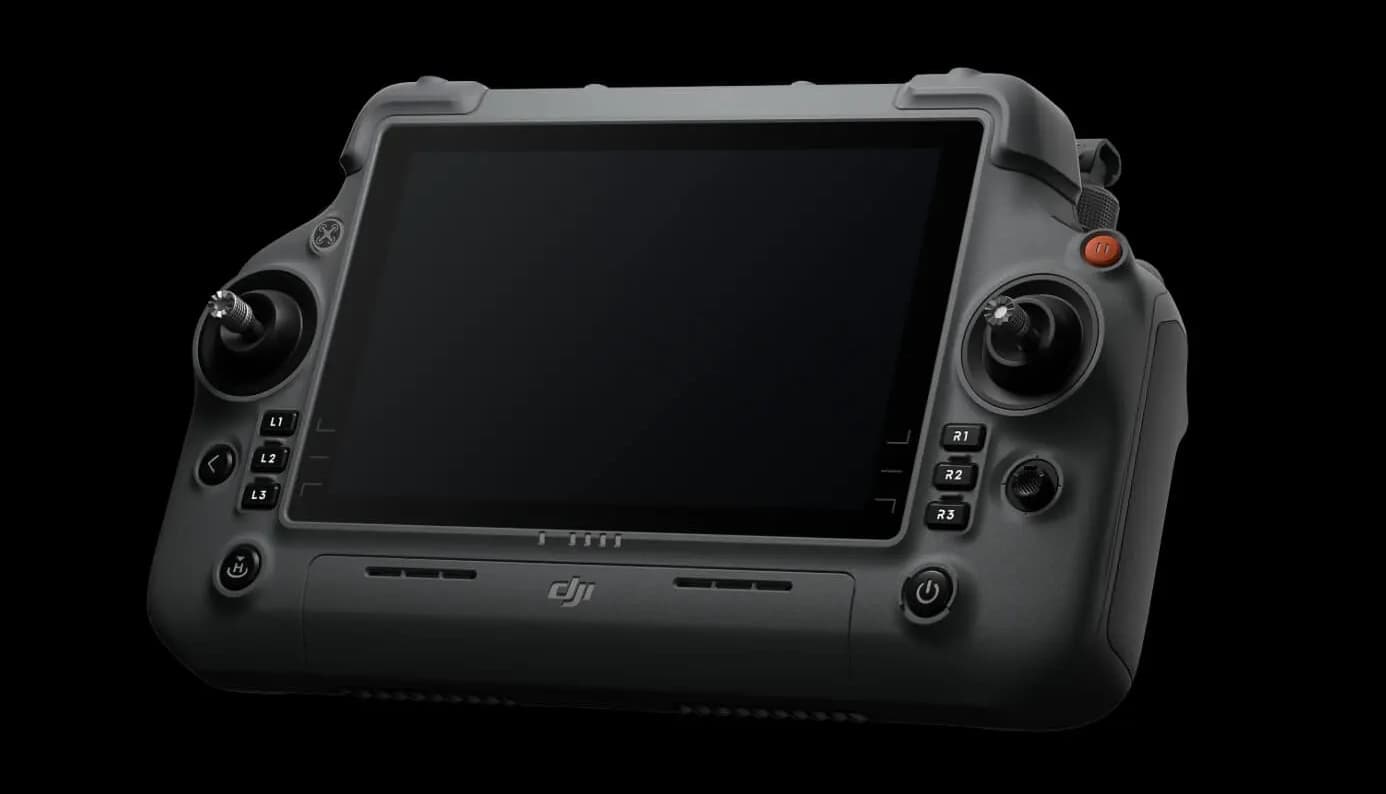

DJI RC Plus 2

DJI RC Plus 2 Enterprise

The DJI RC Plus 2 Enterprise features a high-bright display for clear visibility even in strong sunlight. Built with durability in mind, it boasts an IP54 protection rating and operates reliably in temperatures ranging from -20°C to 50°C (-4°F to 122°F). Equipped with the powerful O4 Enterprise video transmission, a built-in high-gain antenna array, and support for SDR and 4G hybrid transmission, it ensures a stable and smooth video feed in both urban and mountainous environments.

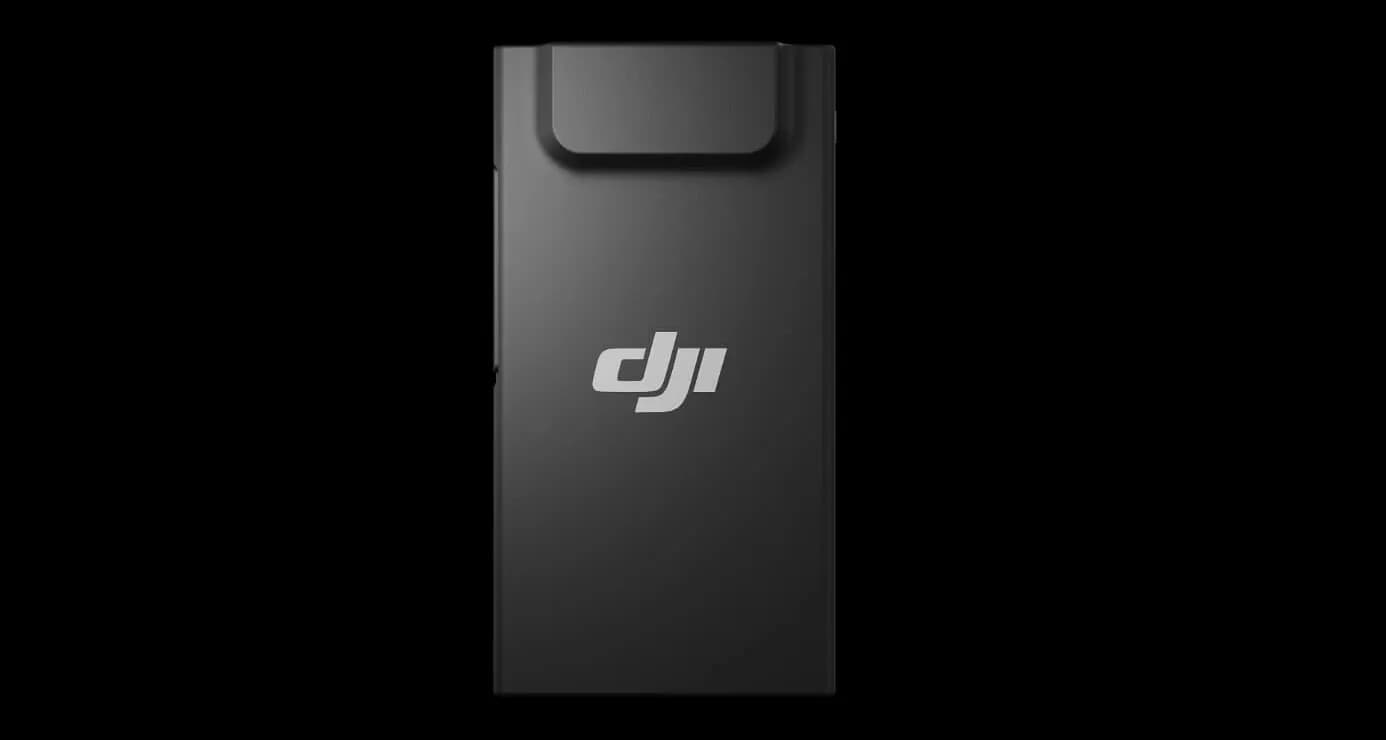

DJI Cellular Dongle 2

DJI Cellular Dongle 2

The Cellular Dongle 2 can connect your DJI equipment to 4G networks. It offers stable high-speed connectivity services, allowing you to experience multiple features like Enhanced Transmission.

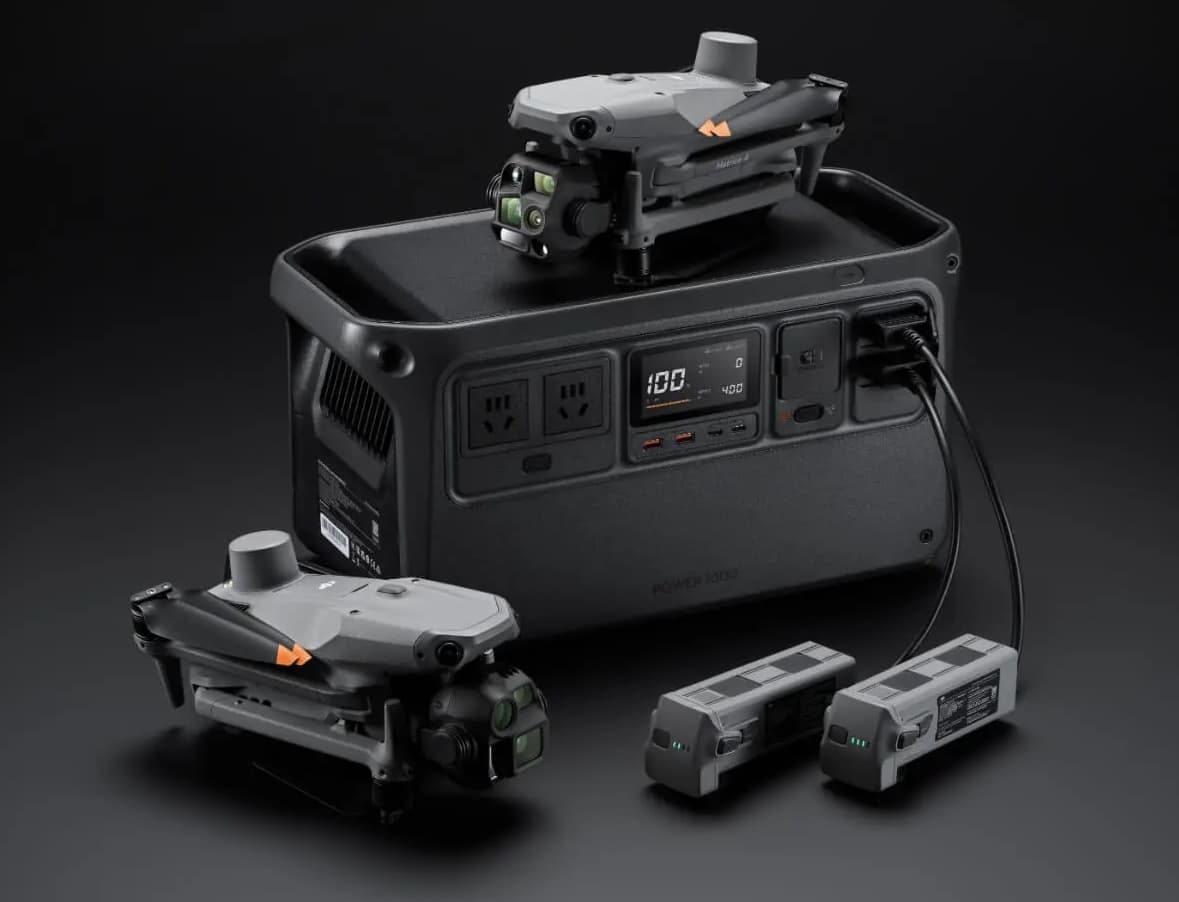

DJI Power 1000

DJI Power 100

DJI Power 1000 has a battery capacity of 1024 Wh and can provide a stable output at 2200 W until battery runs out. It has a max output power of 2600 W and a peak output of 4400 W.

DJI Matrice 4

Get 1 Year of DJI Care Enterprise Plus or 1 Year of Official Extended Warranty Service for Free

DJI Care Enterprise Plus

Comprehensive Protection | Professional Quality Assurance | Exclusive Service | Service Starts with Activation

Free Repairs

Unlimited number of free repairs within the coverage limit.

Flyaway Coverage

1 time/year, worry-free operation

Coverage for Your Whole Fleet

Shared limit for maximum protection

Free Shipping

Free Mail-in Repairs, Hassle-Free Service

Extended Warranty Service

During the service period, the main parts remain covered by the official warranty, bringing longer protection for your product.
