DJI Dock 3

DJI Dock 3 Automated Drone Solution

Rise to Any Challenge

The DJI Dock 3 is DJI’s first “Drone in a Box” solution with vehicle-mounted deployment for 24/7 remote operations. Designed for industries like public safety, emergency response, infrastructure inspection, and construction, it streamlines aerial missions, reducing costs and improving efficiency.

Equipped with high-performance Matrice 4D and 4TD drones, Dock 3 ensures reliable operation in extreme environments. The Matrice 4D is ideal for all surveying and mapping needs, delivering high-precision imaging and terrain accuracy. Meanwhile, the Matrice 4TD excels in thermal inspections, security, and surveillance with its advanced thermal capabilities and night vision, ensuring clear visibility in low-light and challenging conditions. Both drones offer enhanced flight performance, IP-rated protection, and can pair with the DJI RC Plus 2 Enterprise for flexible standalone missions.

Dock 3 supports both fixed and mobile deployment, making it ideal for emergency teams, utility companies, and large-scale inspections. Integrated with DJI FlightHub 2, it enables intelligent automation and seamless mission planning.

Built for precision, reliability, and adaptability, the DJI Dock 3 transforms remote drone operations across land, sea, and challenging terrains.

DJI Dock 3 Key Features

➥

➥

➥

➥

➥

ADAPTABILITY

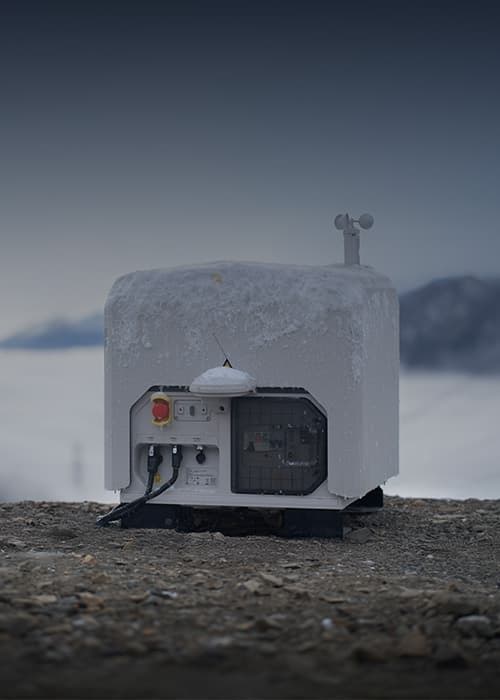

Master All Environments

Heat Resistant

Built to withstand extreme heat, DJI Dock 3 operates and charges seamlessly even in temperatures soaring up to 50° C (122° F), ensuring efficient operations.

50° C

Highest Operating Temperature

Cold Resistant

Perform critical tasks reliably despite frigid temperatures in environments where temperatures can plunge below -20°C (-4°F). After preheating, it can operate stably in harsh environments as low as -30° C (-22° F).

-30° C

Lowest Operating Temperature

Wind Resistance

Both Matrice 4D and 4TD demonstrate remarkable flight performance. In winds as strong as 12 m/s, they can achieve stable takeoff and landing, and stay in the air for up to 32 minutes. [1]

12m/s

Max Wind Speed Resistance

Rugged and Dependable

Dock 3's design safeguards its internal systems from external conditions by encapsulating electronic components, allowing for seamless operations even in harsh environments.

IP56

DJI Dock 3

IP55

DJI Matrice 4D/4TD

Low-Noise and Anti-Ice Propellers

Standard equipped with low-noise anti-ice propellers, the Matrice 4D and 4TD drones can maintain stable flight even in freezing rain. The silent design reduces noise during operations.

DEPLOYMENTS

DJI DOCK 3

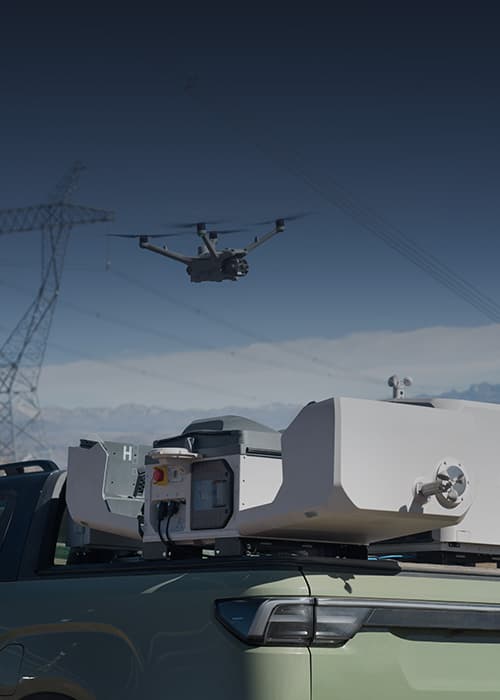

Flexible Deployment, Ultra-Long Transmission

DJI Dock 3 can be flexibly deployed, redefining the paradigm of operations. For fixed deployments, signal quality can be enhanced by installing the next-gen D-RTK 3 Relay at elevated locations, allowing for flexible site selection of the dock. With the new DJI Enterprise app, deployment can be completed using just a smartphone. [3] Additionally, for the first time, a DJI Dock supports vehicle-mounted deployment, enabling more efficient dispatch during urgent operations and long-distance inspections.

Fixed-Mounted Deployment

The new D-RTK 3 Relay Fixed Deployment Version [4] offers superior anti-interference performance for video transmission and satellite acquisition. Installing it at elevated locations can effectively address RTK and video transmission signal issues caused by obstructions, extending the maximum transmission distance to 25 km. This capability allows for flexible site selection of Dock 3 based on actual operational needs.

Near High-Rise Buildings

Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.

Near Communication Towers

Deploying the D-RTK 3 Relay on a nearby communication tower can significantly enhance signal quality during Dock 3 operations, ensuring safe takeoffs and landings even in environments with interferences from the communication tower.

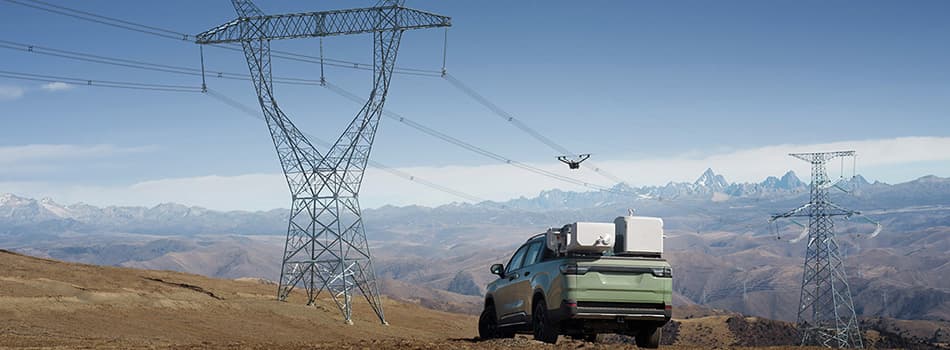

Mobile Vehicle-Mounted Deployment

Installing the D-RTK 3 Relay on rooftops can significantly enhance signal quality, allowing Dock 3 to be deployed next to high-rise buildings or substation walls.

During mobile operations, indoor personnel can use DJI FlightHub 2 to remotely set the dock's location and assign tasks on the cloud, thereby enhancing personnel and scheduling efficiency.

Two docks can be deployed on a single vehicle simultaneously, achieving a significant efficiency boost. DJI Dock 3 employs a special take-over pattern to avoid drone-to-drone collisions and ensure operational safety, allowing the two docks to alternate tasks in an orderly manner.

Automated hovering rotation of two drones enables continuous real-time aerial footage transmission. In emergency scenarios, a spotlight can be equipped to provide full-time illumination.

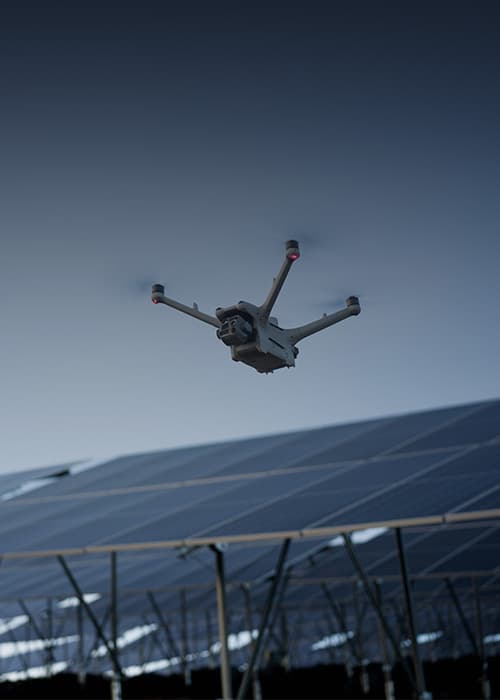

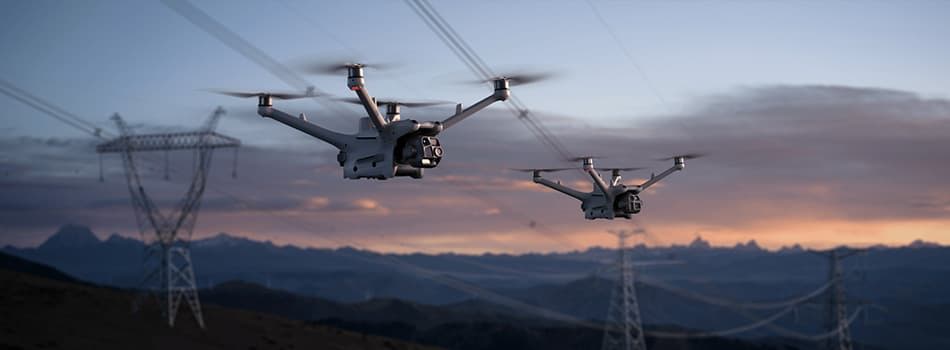

DRONES

DJI Matrice 4D & DJI Matrice 4DT

High-Performance Drones

The all-new water and dust-resistant DJI Matrice 4D and 4TD are built for seamless integration with DJI Dock 3, offering extended flight times and the ability to pair with the DJI RC Plus 2 Enterprise for standalone use. Both drones feature a wide-angle camera, medium telephoto camera, telephoto camera, and a Laser Range Finder. The Matrice 4D excels in professional high-precision mapping and detailed surface inspections. The Matrice 4TD, equipped with an infrared thermal camera and a new NIR auxiliary light, is ideal for a broad range of applications, including infrastructure inspections, emergency response, and public safety.

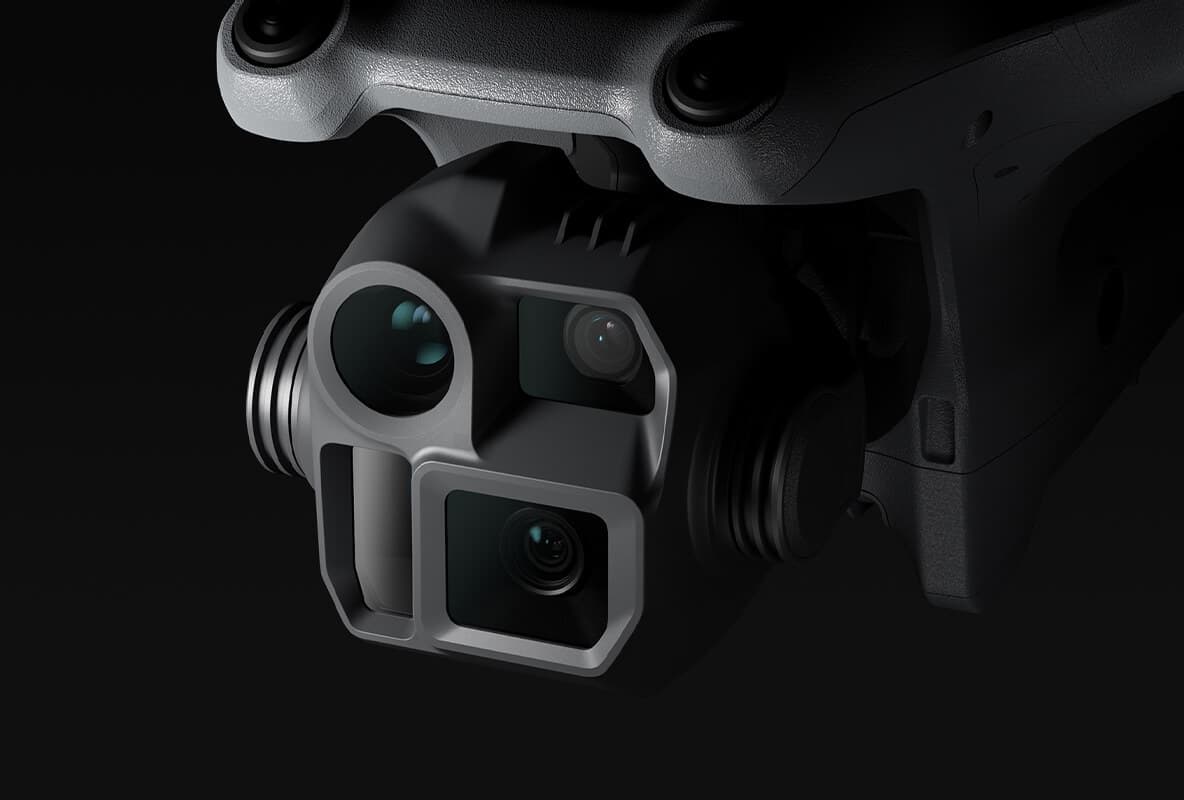

DJI Matrice 4D
DJI Matrice 4D Surveingdrone

DJI Matrice 4D

Surveying Drone

Wide-Angle Camera

4/3 CMOS
20MP Effective Pixels
f/2.8-f/11
24mm Format Equivalent
Mechanical Shutter

Medium Tele Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent

Laser Range Finder

Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)

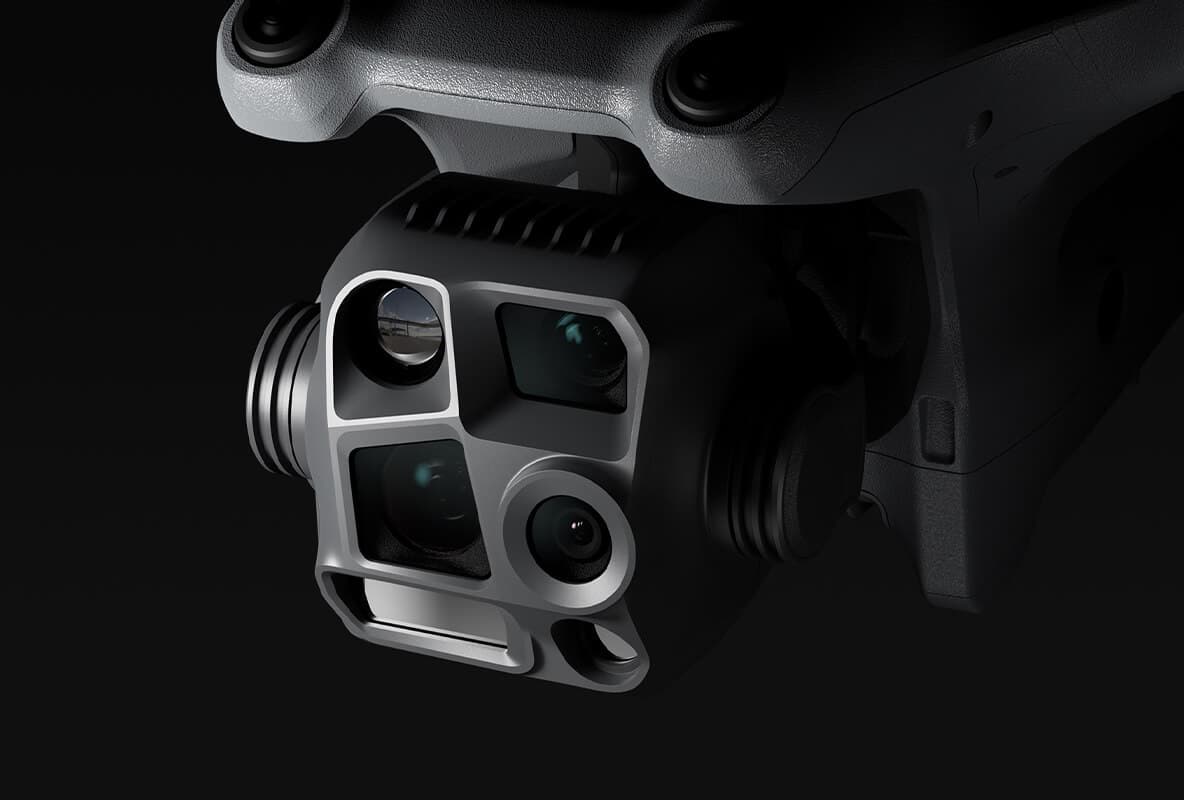

DJI Matrice 4DT
DJI Matrice 4DT Thermal Security Drone

DJI Matrice 4DT

Thermal Drone

Wide-Angle Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/1.7
24mm Format Equivalent

Medium Tele Camera

1/1.3-inch CMOS
48MP Effective Pixels
f/2.8
70mm Format Equivalent

Tele Camera

1/1.5-inch CMOS
48MP Effective Pixels
f/2.8
168mm Format Equivalent

Laser Range Finder

Measurement Range: 1800 m (1 Hz);
Oblique Incidence Range (1: 5 Oblique Distance): 600 m (1 Hz)
Blind Zone: 1 m
Range Accuracy (m): ± (0.2 + 0.0015 × D)

Infrared Thermal Camera

640×512 Resolution
f/1.0
53mm Format Equivalent
Uncooled VOx Microbolometer
Supports UHR Infrared Image mode

NIR Auxiliary Light

6° FOV, 100m Illumination Distance

Longer Flight Time, Robust Protection

With a full charge, the Matrice 4D/4TD offers an impressive 47 minutes of flight time at a speed of 15 m/s, delivering a 37% increase in operational time. At a range of 10 km, these drones can operate for 18 minutes. Both models are built to withstand tough environments, boasting an IP55 rating for dust and water resistance.

54 Minute

Forward Flying

47 Minute

Hovering

IP55

Protection

Obstacle Sensing for Safe Operation

The Obstacle Sensing Module for the Matrice 4D/4TD integrates rotating LiDAR and millimeter-wave radar technologies, enabling precise 12mm wire-level obstacle avoidance at speeds of up to 15 m/s during complex power line crossings. It also enhances positioning in low-light conditions, ensuring operational safety in diverse environments, such as power distribution networks and the intricate layouts of substations.

Unmatched Clarity and Precision for Any Task, Anytime

The Obstacle Sensing Module for the Matrice 4D/4TD integrates rotating LiDAR and millimeter-wave radar technologies, enabling precise 12mm wire-level obstacle avoidance at speeds of up to 15 m/s during complex power line crossings. It also enhances positioning in low-light conditions, ensuring operational safety in diverse environments, such as power distribution networks and the intricate layouts of substations.

Excels in Low-Light Environments

The Matrice 4D Series drones are equipped with four high-resolution, low-light fisheye lenses, significantly enhancing visual positioning and obstacle sensing in low-light conditions. The new Night Scene mode enables full-color night vision, while the Matrice 4TD adds an IR-Cut Filter for black-and-white night vision and 24/7 operations. It also features a new NIR auxiliary light, capable of illuminating distances up to 100 meters. Additionally, the Matrice 4TD’s infrared thermal camera supports UHR Infrared Image mode with resolutions up to 1280 × 1024, along with a High-Res mode for precise temperature readings.

Clear Vision and Stable Images

The Matrice 4D Series drones feature medium telephoto and telephoto cameras with advanced foreground stabilization. The medium tele camera excels in mid-range inspections, detecting pins and cracks from 10 meters away and clearly reading instrument data at substations. The 48 MP telephoto camera captures fine details, such as signage, from distances of up to 250 meters. When hovering in a windless environment, the Matrice 4TD’s telephoto camera allows the gimbal to tilt upwards by 80 degrees, providing a clear view of bridge undersides for defect inspections. Enhanced stabilization ensures sharp, detailed images even at 10x zoom or higher.

High-Precision Surveying

The Matrice 4D Series drones are designed for high-precision mapping, featuring a new 5-direction oblique photography function, 3-direction orthophoto photography, and real-time terrain following to accommodate diverse mapping needs.

DJI FlightHub 2 has been enhanced for Matrice 4D/4TD operations, introducing advanced flight route planning options such as Smart 3D Capture routes, geometric routes, and slope routes. These upgrades improve efficiency while ensuring precise and detailed modeling.

Seamless Airborne Relay for Mountainous Terrains with the DJI Dock 3

The Obstacle Sensing Module for the Matrice 4D/4TD integrates rotating LiDAR and millimeter-wave radar technologies, enabling precise 12mm wire-level obstacle avoidance at speeds of up to 15 m/s during complex power line crossings. It also enhances positioning in low-light conditions, ensuring operational safety in diverse environments, such as power distribution networks and the intricate layouts of substations.

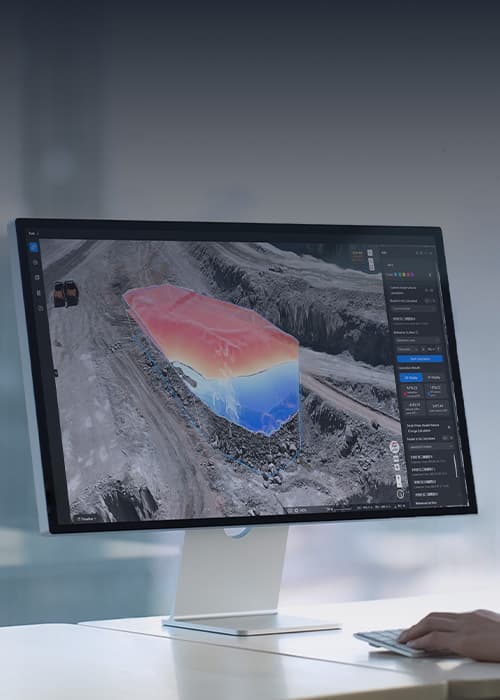

DJI FlightHub 2
Intelligent Features

When integrated with DJI FlightHub 2, Dock 3 significantly boosts the intelligence and efficiency of remote operations.

Intelligent Flight and Control

The new automated flight route is useful across various scenarios, including public safety and inspections. Once a flight route is established, the drone can automatically detect and capture images or videos of subjects like vehicles and vessels and infrared temperature anomalies, and send notifications to the operators.

The new intelligent change detection feature enables efficient periodical analysis of changes in an area, assisting operators in environmental protection, natural disaster relief and crack detection for more effective and informed decision making.

Operators can utilize the powerful auto-zoom capabilities of the Matrice 4D Series to quickly track a subject, such as a vehicle or a vessel for efficient follow-up review.

The Virtual Cockpit remote control interface has been significantly enhanced with the introduction of the new Mouselook feature. This enhancement allows the drone to adjusts its attitude and gimbal orientation automatically, enabling rapid and precise centering of the frame, thus achieving "point and see."

Maximize Efficiency with DJI Dock 3's Seamless Operations

Take off quickly and arrive at the emergency site to improve situational awareness. After enabling optimal route planning, use FlyTo Tasks to reach a designated point 1 km away and at 100m height within 100 seconds.

Engine upgrade significantly reduces live view latency on FlightHub 2, providing reliable support for real-time decision-making.

In emergency scenarios, real-time data transmission and rapid modeling can be achieved during flight. Data transfer can be completed immediately upon landing, and a rough model can be quickly generated via the cloud, significantly enhancing efficiency.

Security Compliance

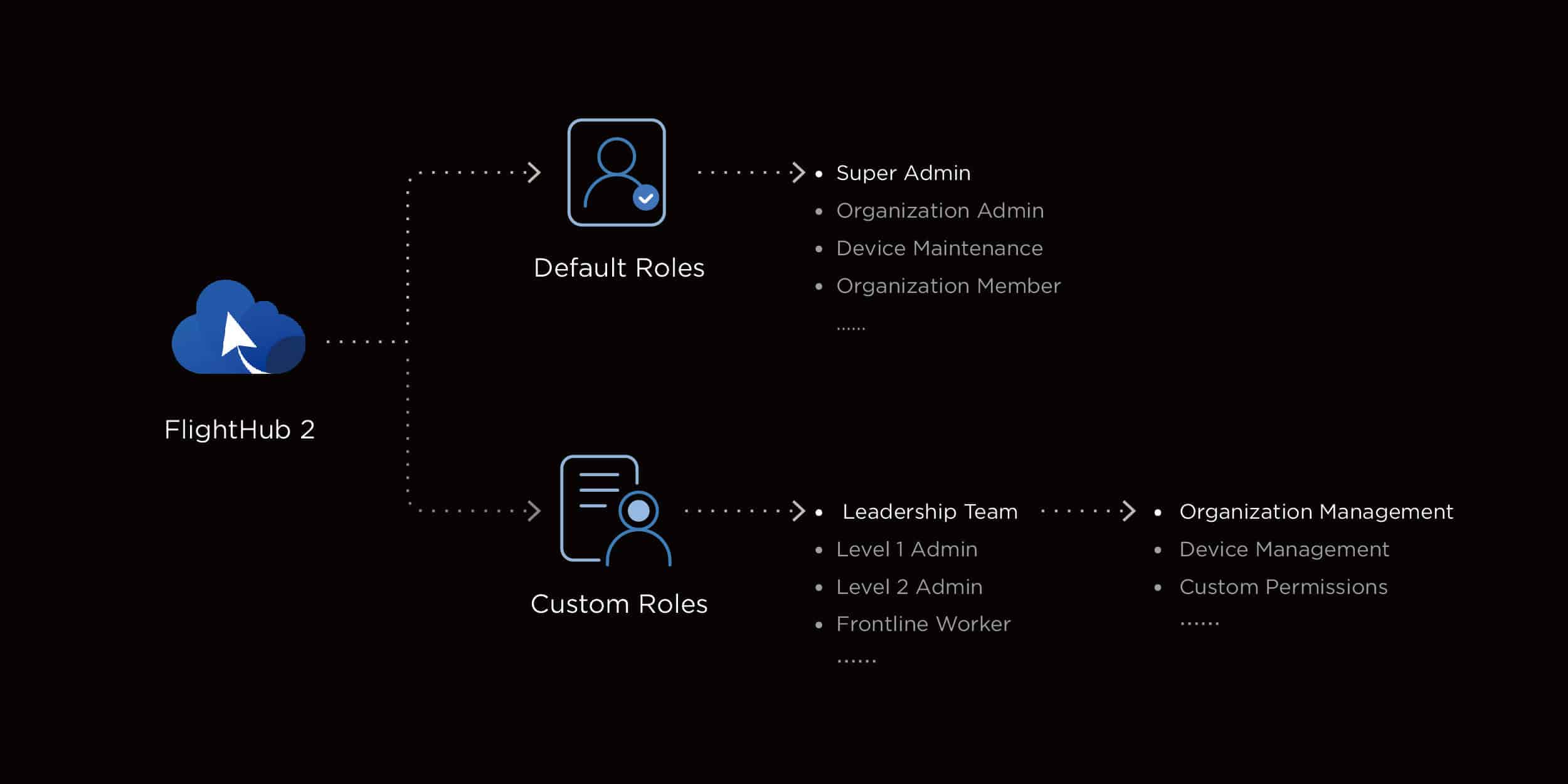

FlightHub 2 has upgraded its permission management, allowing users to configure management permissions according to actual needs.

FlightHub 2 uploads, stores and manages data on Amazon Web Services (AWS) cloud servers, which are also ISO/IEC 27001 certified, ensuring secure and compliant data processing.

With DJI Cellular Dongle 2, the aircraft can connect to 4G networks. In complex operational environments, the 4G network works in tandem with O4+ video transmission system to ensure a stable transmission and enhance flight safety. 4G enhanced video transmission service can be privately deployed and used in conjunction with the FlightHub 2 on-premises version to further enhance the stability and security of data transmission.

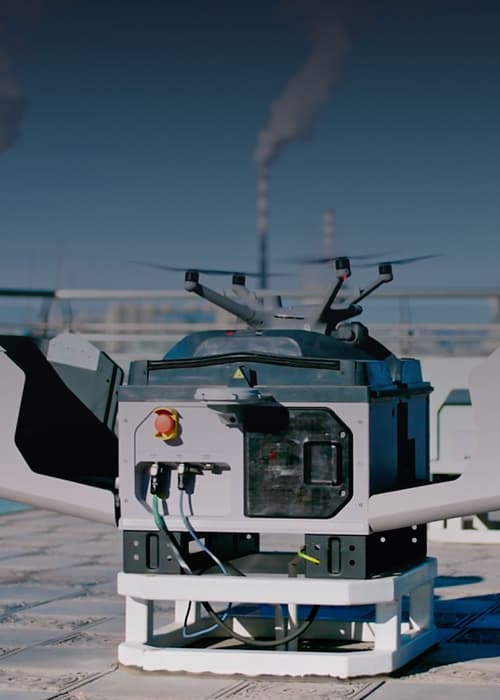

Open Ecosystem, Breaking Boundaries

Intelligent Algorithm Developer

Offers essential model training tools and supports the third-party developer certification process, enabling the expansion of new intelligent applications.

Learn more ▶

PSDK

E-Port and E-Port Lite encryption authentication provide secure and reliable payload integration, expanding the application possibilities of the Matrice 4D Series.

Learn more ▶

MSDK

Mobile SDK 5 streamlines app development for controlling the Matrice 4D Series. Fully open-source and backed by production-ready DJI Pilot 2 module samples, it ensures reliability and ease of integration.

Learn more ▶

Cloud-to-Cloud Coordinated Operation

Through DJI FlightHub 2's FlightHub Sync function, users can easily link it to a third-party cloud platform for flexible management of data.

Learn more ▶

Cloud API

DJI Pilot 2's Cloud API enables direct integration of the Matrice 4D Series with third-party cloud platforms, providing access to hardware, live video, and photo data—no app development required.

Learn more ▶

Third-Party Payloads

Enable more functionality by connecting third-party payloads such as parachute via the aircraft's E-Port or remotely control added payloads via DJI FlightHub 2. It also features an additional port for PSDK payload at the rear.

DJI Terra API

With the DJI Terra API, users can integrate its powerful mapping capabilities into their own platforms, achieving automated 2D and 3D reconstructions. Additionally, users can customize photogrammetry workflows as needed, allowing the Matrice 4D's operational results to meet the needs of various industry applications better.

Learn more ▶
