DJI Terra

Sale
Regular price R 48,499.00

Tax included.

Variant

Quantity

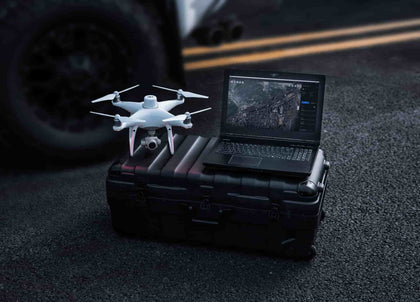

DJI Terra Mapping Software

Make the World Your Digital Asset

DJI Terra stands out as cutting-edge 3D model reconstruction software, showcasing photogrammetry as its foundational technology. This innovative platform excels in facilitating precise and efficient 2D and 3D reconstruction using visible light, coupled with seamless data processing capabilities through DJI LiDAR integration. Specifically designed to complement DJI Enterprise drones and their payloads, DJI Terra emerges as an indispensable tool in constructing comprehensive application solutions tailored for diverse industries.

With a strategic focus on verticals such as land surveying and mapping, power transmission, emergency services, construction, transportation, and agriculture, DJI Terra proves to be an invaluable asset. Its synergy with DJI Enterprise drones creates a powerful combination, empowering users to achieve unparalleled results in tasks ranging from surveying vast terrains to responding to emergencies with agility. The integration of advanced technologies positions DJI Terra as a pivotal player in driving efficiency and accuracy across a spectrum of professional applications.

Get a Quote

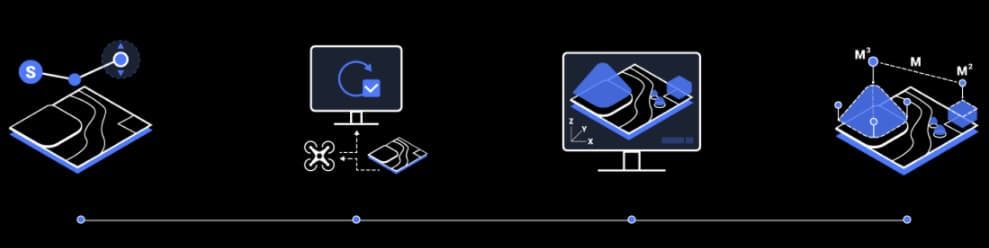

Plan. Process. Analyze and Execute.

Mission Planning

Data Acquisition

Area Mapping

Data Analysis

Digitize the World Around You

Construction

Collect, measure and analyze data with accuracy across projects

Infrastructure

Easily perform detailed inspections on complex assets and structures

Energy

Safely inspect vertical assets and structures, with special optimizations for power lines

Public safety

Achieve rapid turnaround time for gathering on-site critical information

Agriculture

Get an in-depth understanding of your field to help you generate greater yields

Filming

Optimize previsualization to improve planning workflows across your team

Area Mapping with DJI Terra

2D Maps

The algorithm is optimized according to the different scenarios to significantly improve processing efficiency, effectively avoid image warping and deformation, and obtain detailed and accurate measurement results for all your target objects and survey areas.

Real-time Mapping

Quickly generate a 2D orthomosaic of the selected area in real-time. Not only is this ideal for creating detailed flight paths in remote areas but it’s also useful for time-sensitive missions that require quick decision-making on site.

2D Reconstruction

Generate high resolution orthomosaics, enabling you to get detailed and accurate measurement results for all your critical projects.

2D Multispectral Reconstruction

Process multispectral images to generate vegetation index maps including NDVI and NDRE. Create prescription maps for variable rate application using DJI’s Agras drones to improve crop yields while driving down costs.

3D Models

Realistic 3D models can be generated in three resolutions—high, medium and low. Water surfaces in the model are automatically optimized through AI technology, and the formats commonly used in the industry are exported for image reconstruction in diverse scenarios, such as surveying and mapping, accident sites, power grid equipment, and progress-tracking for construction projects.

Real-time 3D Point Cloud

When efficiency is key, quickly render and visualize a 3D point cloud of the mapped area. Make decisions based on the preliminary model and check for completeness immediately or plan 3D flights on-site.

3D Reconstruction

Get sharp and realistic representations of your surroundings throughout various industrial applications, be it accident reconstruction, recreating thin power lines and complex vertical structures, managing major construction projects and more. The CUDA-based reconstruction algorithms are capable of quickly processing large amounts of data to deliver quality results.

With Region of Interest, image reconstruction can be performed to specific target region. In turn, this saves processing time and improves efficiency, while generating a clearer model or point cloud.

3d Models media

Seamless Workflows, Accurate Results

Unparalleled efficiency and user experience

Import images with ease while navigating the intuitively designed interface effortlessly.

Bulk process up to 400 images/1 GB of RAM¹, minimizing the wait time between field work and digital visualization.

Run reconstruction missions by employing multiple graphics cards simultaneously to improve efficiency.

Meet and exceed your project standards

Generate highly detailed 2D orthomosaics and 3D models with enhanced absolute accuracy by setting Ground Control Points (GCPs) and checkpoints, so you can measure and inspect with ease.

View a quality report of your mission to ensure the results meet your accuracy standards.

Compatibility and flexibility

Convert the coordinates of your maps and models into 8500+ major coordinate systems by simply selecting the output that fits your needs.

Incorporate POS data, GCPs, or both sets of data to create georeferenced maps and models with enhanced accuracy directly in the target coordinate system required by the project.

Mission Type

Waypoints Mission Planning

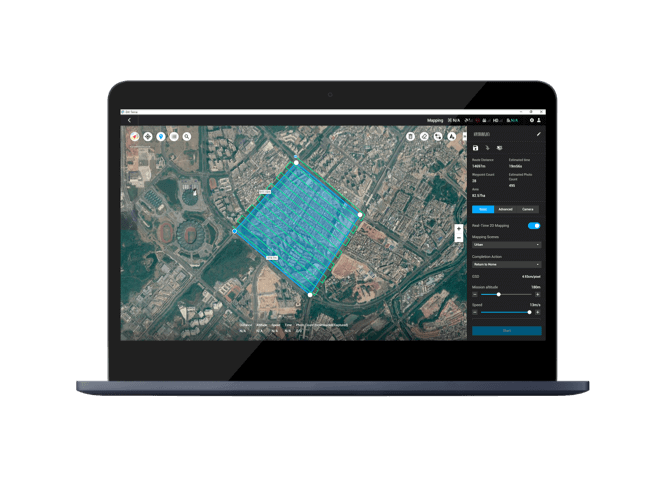

Area Mission Planning
Oblique Mission Planning
Corridor Mission Planning
Detailed Mission Planning

Create efficient flight paths using predefined waypoint actions and adjustable parameters like altitude, speed, gimbal pitch angle, aircraft heading and more. For more complex and tight missions that require high attention to detail, use 3D Flight Visualization to design and simulate tasks on existing 3D models.

With just a few taps on the screen, you can automate complex missions, allowing you to seamlessly capture imagery which can be processed to produce a variety of maps and models for further analysis, and to aid decision-making.

When accuracy is essential and details are vital to your critical operations, Oblique lets you capture a rich 3D model data set by adjusting the angle of the camera at a tilted angle, giving you an extra crisp view of the asset.

Create automated flight missions around roads and railways by simply drawing a line on the map. Adjust mission settings to change the total area mapped, giving you the flexibility to choose between creating high-definition 2D maps and 3D models or quick overviews.

Automatically generate waypoints and flight routes based on one or more points selected in a local 3D model or point cloud (or a third-party point cloud). A simulated camera view including the selected point is displayed onscreen to enable better waypoint selection and more efficient flight route planning, automating inspection workflows.

Data Analysis

Coordinate
Distance
Area
Volume

2D & 3D Measurements

Acquire key dimensions across an array of terrains with easy-to-use analysis tools that enable you to obtain a variety of measurement data based on linear, area and volumetric measurements.

Annotation

Edit labels of measurements on existing models, which can be used for reporting and improving communication throughout ongoing projects.

Photo Inspection

Closely inspect every photo of the model so you can pinpoint and highlight any critical elements in the real world.

The Beginning of Next Generation Mapping Solutions

Harness the power of AI-driven mapping solutions designed to take your industrial projects to the next level. Whether it’s object classification, site inspections and more, you can start developing task-specific mapping solutions to seamlessly carry out missions.

Data acquisition

Define mission objective, plan desired flight plan, and with a tap of a few buttons, autonomously collect critical data so you can achieve the required outcome.

Data Processing

Utilize refined image recognition technology to generate 2D and 3D data, resulting in a more realistic representation of your assets, objects, surroundings and more.

Data Application

Implement tools and machine learning techniques, which can be used across a variety of different industries – like classification algorithms for identifying trees, objects, and other scenarios.

Execution

Take the required action, and enjoy more efficient processes with machine control – be it automated crop spraying, monitoring work sites, transporting materials and more.

Terra License Plans

Feature/Version	Agriculture	Pro	Electricity	Cluster	Education
Real-time 2D Mapping	✔	✔	✔	✔	✔
Agricultural application	✔	✔	✔	✔	✔
2D Reconstruction (Field)	✔	✔	✔	✔	✔
2D Multispectral Reconstruction	✔	✔	✔	✔	✔
2D Reconstruction (Urban)		✔	✔	✔	✔
KML file import		✔	✔	✔	✔
Output Coordinate System		✔	✔	✔	✔
ROI Reconstruction		✔	✔	✔	✔
Image POS import		✔	✔	✔	✔
Multi-GPU Reconstruction		✔	✔	✔	✔
3D Reconstruction		✔	✔	✔	✔
3D Mission planning		✔	✔	✔	✔
Real-time 3D Mapping		✔	✔	✔	✔
GCPs		✔	✔	✔	✔
LiDAR Point Cloud Accuracy Optimization		✔	✔	✔	✔
LiDAR Point Cloud Smoothing		✔	✔	✔	✔
Categories of ground points of LiDAR point cloud		✔	✔	✔	✔
Electricity Application			✔	✔	✔
Detailed Inspection			✔	✔	✔
Cluster Computation				✔
Bind Device	3 devices	1 device	1 device	1 Device 3 nodes	Contact Us
Authorization mode	Online	Online/Offline	Online	Offline	Online
Validity Period	1 year	1 Year / Permanent (Free update for the first year, paid update from the next year)	1 year	Permanent (Free update for the first year, paid update from the next year)	Permanent

Note:

1. The processing capacity of 400 images/1 GB of RAM is estimated using the size of images captured using the Phantom 4 RTK. This is the equivalent of processing 8 gigapixels of data/1 GB of RAM.

2. System requirements: Windows 7 or above (64 bit, 16GB RAM), NVIDIA graphics card (4GB) with compute capability 3.0 or above.

3. Aircraft supported: P4 Multispectral
Multispectral Imaging Bands supported:
Blue (B): 450 nm ± 16 nm, green (G): 560 nm ± 16 nm, red (R): 650 nm ± 16 nm, red edge (RE): 730 nm ± 16 nm, near-infrared (NIR): 840 nm ± 26 nm
Vegetation indices supported: NDVI, GNDVI, NDRE, LCI, OSAVI.

4. Feature only available when using the Phantom 4 RTK or Phantom 4 Pro V2.0.
