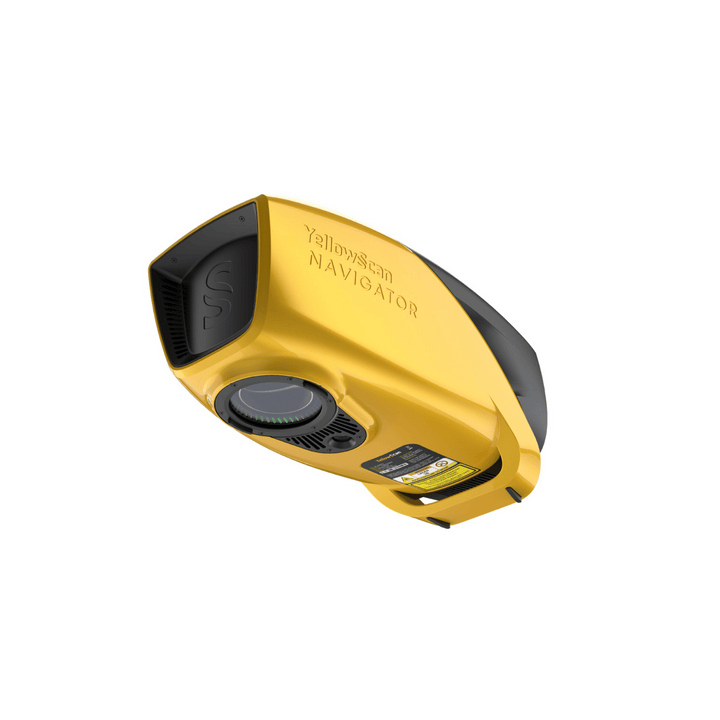

YellowScan Navigator Bathymetric & Topographic UAV LiDAR Solution

Tax included.

Please CONTACT US if you are interested in this product.



YellowScan Navigator

Bathymetric & topographic LiDAR solution for UAVs

The YellowScan bathymetric LiDAR is an innovative solution for exploring underwater and ground topography with a single-button operation. Its compact design allows for operating on various UAV platforms without compromising water penetration. Survey shorelines, rivers or ponds with ease, by getting simultaneous land and underwater topography.

Compatible with:
DJI Matrice 350 RTk
DJI Matrice 300 RTK
DJI Matrice 600
DJI Matrice 210 RTK
DJI Matrice 200

Package includes:

  • YellowScan Navigator
  • Rugged pelicase
  • 2 Batteries
  • UAV GNSS antenna and cable
  • 2 USB flash drives
  • Documentation
  • Laser Safety Goggles

Technology inside

YellowScan laser scanner

IMU solution

SBG Quanta Micro

YellowScan Navigator Bathymetric & Topographic UAV LiDAR Solution

YellowScan Navigator Key Features

AGL Altitude

Up to 100m

System Precision

3cm

System Accuracy

3cm

Battery Weight excl.

3.7kg


YellowScan Navigator Differentiators

  • Topography & water mapping
  • Easy to use and process
  • Safe operational range

YellowScan Navigator Integrations

  • Single rotor UAV
  • Multirotor UAV
YellowScan Navigator Bathymetric & Topographic UAV LiDAR Solution
Specifications

Precision

3 cm (1.2")

Accuracy

3 cm (1.2")

Typ. flight speed

5 m/s

Max. AGL altitude

100m

Laser range

Up to 120 m

Laser scanner

YellowScan development

GNSS-Inertial solution

SBG Quanta Micro

Echoes per shot

SBG Quanta Micro

Shots per second

Up to 20 000

Scanning frequency

Up to 50 Hz

Weight

3.7 kg (8.2 lbs) battery excl.

Size

L 350 x W 160 x H 190 mm

Autonomy

45 min. typ.

Power consumption

120 W

Operating temperature

0° to +40 °C

Nominal ocular hazard distance

25 m

Laser class

Class 3B
