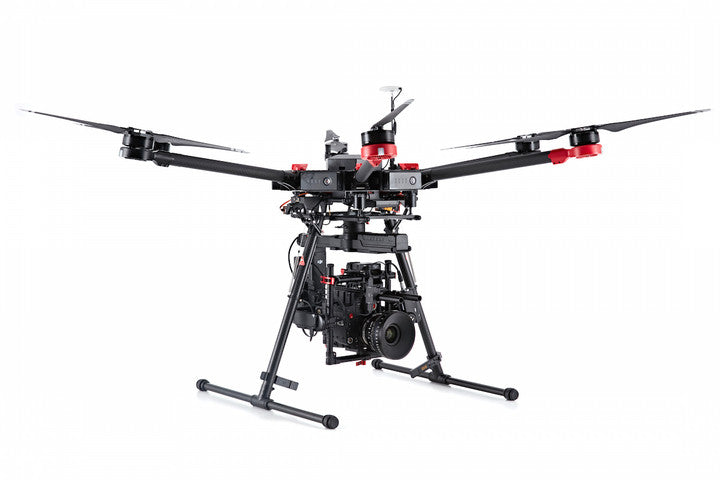

Matrice 600 Pro

  • Sale
  • Regular price R 110,000.00
Tax included.

Please CONTACT US if you are interested in this product.

<

M600PRO

SIMPLY PROFESSIONAL PERFORMANCE

The Matrice 600 Pro (M600 Pro) inherits everything from the M600 with improved flight performance and better loading capacity.Pre-installed arms and antennas reduce time required for setup, and the system’s modular design makes it easy to mount additional modules.The airframe is equipped with the latest DJI technologies, including the A3 Pro flight controller, Lightbridge 2 HD transmission system, Intelligent Batteries and Battery Management system. All Zenmuse cameras and gimbals are natively compatible and full integration with third party software and hardware make the M600 Pro ideal for professional aerial photography and industrial applications.

AERIAL IMAGING SOLUTION

Dustproof propulsion systems simplify maintenance and active cooling motors ensure that operation is reliable for extended periods of time. The M600 Pro is natively compatible with current Zenmuse cameras and gimbals. With a maximum payload of 6kg, it effortlessly supports the Ronin-MX gimbal, DJI Focus and a range of cameras from Micro Four Thirds systems to the RED EPIC.


EXTENDED FLIGHT TIME AND TRANSMISSION RANGE

The M600 Pro has an extended flight time and a 5km* long-range transmission. A comprehensive battery management system means that if any of its six Intelligent Batteries are turned on or off, the rest will follow suit. The battery management system monitors every battery during flight, ensuring safe landing in the event of single battery failure. Compared to traditional non-intelligent batteries, the M600 Pro’s battery management system simplifies maintenance while enhancing security.



PROFESSIONAL HD TRANSMISSION

DJI Lightbridge 2 has been designed to meet all the requirements of professional broadcasting, offering high frame rates and HD live streaming. USB, mini-HDMI, 3G-SDI ports and Lightbridge 2 Ground Unit all support video output at up to 1080p/60fps. Dynamic, self-adaptive wireless data links enable long-range transmission with ultra-low latency, supporting a broadcast standard output of 720p/59.94fps and 1080i/50fps, enabling even more creative opportunities for aerial imaging.

D-RTK GNSS

Using dual antennas, the D-RTK GNSS system is a significant breakthrough for high-precision industrial applications. It is able to withstand strong magnetic interference and provides centimeter-level accuracy in environments with metal structures.

OPEN SDK DEVELOPMENT

The M600 Pro is fully compatible with the DJI Onboard SDK and Mobile SDK to meet the requirements of those building software for various industrial applications. It has four — dual parallel — CAN ports and one API port for connecting DJI devices, including the D-RTK GNSS units or third party components of your choice.

POWERFUL APP CONTROL

The M600 Pro supports the DJI GO app and DJI Assistant 2. Get a live HD view, battery status, redundancy status, transmission strength and much more, straight from the DJI GO app. DJI GO is also the control center for the camera, giving access to shutter speed, ISO, photo or video capture, on any Zenmuse series camera and remote focus and aperture control on the Zenmuse X5 and X5R cameras. DJI Assistant 2 supports firmware updates and Ground Station, and comes with a built-in flight simulator.

AIRCRAFT

Diagonal Wheelbase 1133 mm
Dimensions 1668 mm × 1518 mm × 727 mm with propellers, frame arms and GPS mount unfolded (including landing gear)
437 mm × 402 mm × 553 mm with propellers, frame arms and GPS mount folded (excluding landing gear)
Package Dimensions 525 mm × 480 mm × 640 mm
Weight (with six TB47S batteries) 9.5 kg
Weight (with six TB48S batteries) 10 kg
Max Takeoff Weight Recommended 15.5 kg
Hovering Accuracy (P-GPS) Vertical: ±0.5 m, Horizontal: ±1.5 m
Max Angular Velocity Pitch: 300°/s, Yaw: 150°/s
Max Pitch Angle 25°
Max Wind Resistance 8 m/s
Max Ascent Speed 5 m/s
Max Descent Speed 3 m/s
Max Service Ceiling Above Sea Level
  • 2170R propellers: 2500 m;
  • 2195 propellers: 4500 m
Max Speed 40 mph / 65 kph (no wind)
Hovering Time* (with six TB47S batteries) No payload: 32 min, 6 kg payload: 16 min
Hovering Time* (with six TB48S batteries) No payload: 38 min, 5.5 kg payload: 18 min
Supported DJI Gimbals Ronin-MX; Zenmuse Z30, Zenmuse X5/X5R, Zenmuse X3, Zenmuse XT; Zenmuse Z15 Series HD Gimbal: Z15-A7, Z15-BMPCC, Z15-5D III, Z15-GH4
Flight Control System A3 Pro
Propulsion System
  • Motor model: DJI 6010
  • Propeller model: DJI 2170R
Retractable Landing Gear Standard
Operating Temperature 14° Fto 104° F (-10° C to 40° C)

CHARGER (MODEL: MC6S600)

Voltage Output 26.1 V
Rated Power 600 W
Single Battery Port Output Power 100 W

OPTIONAL BATTERY (MODEL: TB48S)

Capacity 5700 mAh
Voltage 22.8 V
Battery Type LiPo 6S
Energy 129.96 Wh
Net Weight 680 g
Operating Temperature 14°F to 104° F (-10°C to 40° C)
Max Charging Power 180 W
