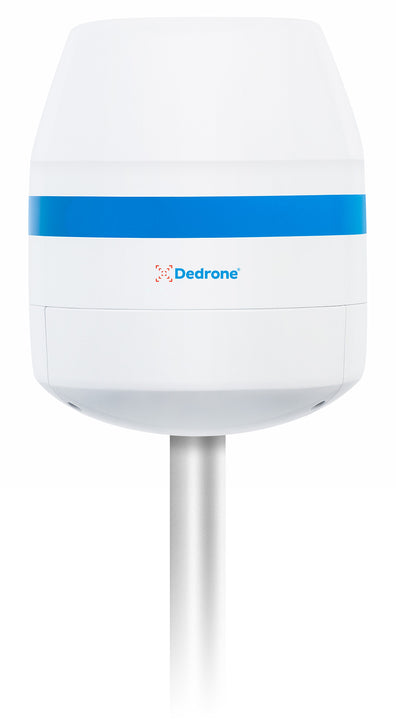

Dedrone RF-160 Sensor

Tax included.

Please CONTACT US if you are interested in this product.



Dedrone RF-160 Sensor

Start your airspace surveillance immediately with Dedrone’s new radio frequency sensor, the RF-160, connected to cloud-based DroneTracker software.

Now with up to 5 km range in drone detection.

Benefits

  • Long-range detection and early-warning

  • Fast installation and start-up thanks to integrated LTE.

  • Provides meaningful data for risk assessments


Set Up in 15 Minutes

1. Out of the Box Hardware

Place the RF Sensor on a pole. We’ll support you with a manual, video tutorial and are available via phone or video chat. All you’ll need is a power supply – no further technical knowledge is needed

Dedrone RF-160 Sensor set up

2. Browser-Based Software

Login to DroneTracker with your credentials that we have sent you by email. The RF Sensor connects automatically. You can access DroneTracker on your desktop or via mobile interface.

Dedrone RF-160 Sensor set up

3. Get Drone Alerts and Insights

You'll get drone alerts immediately in your preferred channels - via web, email, mobile or API. All drone intrusions and corresponding data are saved and analyzed automatically.

Dedrone RF-160 Sensor set up

RF-160 Specifications

Range (line of sight)

Under normal conditions 1.0 mi (1.6 km) for most drones. Under ideal conditions up to 3.1 mi (5.0 km) for specific drones.

Device Type

Sensor

Radio Frequency

Omnidirectional passive detection and classification

L x W x H

1 ft x 1 ft x 1.33 ft (300 mm x 300 mm x 405 mm)

Weight

15 lb (6.8 kg)

Ingress Protection Rating

IP65

Operating Temperature

-4 °F to +131 °F (-20 °C to +55 °C)

Power Supply on Premises Operation

PoE IEEE 802.3bt (60 W) or AC 100-240V 50/60 Hz max. 1 A

Power Supply Cellular Operation

AC 100-240V 50/60 Hz max. 1 A

Power Consumption

21 W (typical)

Connectivity

Via LAN to existing IT infrastructure or via the integrated mobile connection in the Dedrone Cloud

Communication Technologies

Cellular Communication* or Ethernet

Configuration, Operation, and Alarms

Via the browser-based DroneTracker software (software version >= 4.2 and valid license)

Software Updates

Firmware and DroneDNA updates via a DroneTracker instance (cloud or server)
