The RF-360 is a passive, network-attached radio sensor for the detection, classification, and localization (geolocation) of drones and their remote controls.

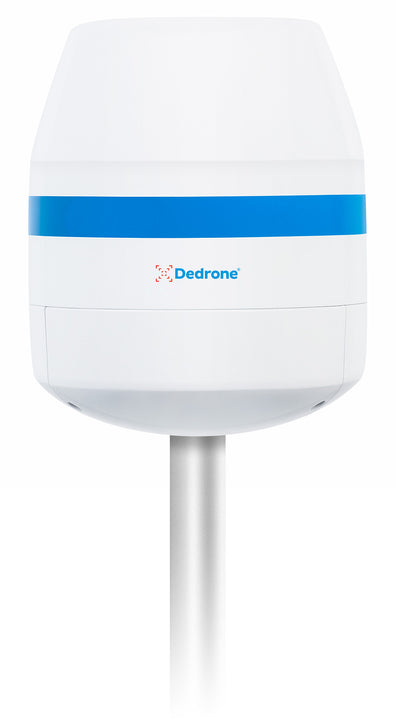

Dedrone RF-360 Sensor
Benefits
-
RF-based localization finds drones and pilots and plots them on a map
-
Long-range drone detection and direction finding (up to 5 km)
-
Fast installation and start-up due to cloud-readyness thanks to integrated LTE and GPS
-
Provides information on “hotspots” of drone activity
-
Optimized for RF noisy environments
-
No legal authorization required
| RF-360 Specifications | |
| Range (line of sight) | Under normal conditions 1.25 mi (2.0 km) for most drones, under ideal conditions up to 3.1 mi (5.0 km) for specific drones |
| Device Type | Sensor |
| Radio Frequency | Omnidirectional, passive detection, classification, and direction finding |
| L x W x H | 12" x 12" x 15.96" (300 mm x 300 mm x 405 mm) |
| Weight | 15.5 lb (7.0 kg) |
| Ingress Protection Rating | IP65 |
| Operating Temperature | -4 °F to +131 °F (-20 °C to +55 °C) |
| Power Supply Cellular Operation | AC 100-240V 50/60 Hz max. 1 A |
| Power Supply on Premises Operation | PoE IEEE 802.3bt (60 W) or AC 100-240V 50/60 Hz max. 1 A |
| Power Consumption | 24 W (typical) |
| Communication Technologies | Cellular Communication** or Ethernet |
| Connectivity | Via LAN to existing IT infrastructure or via the integrated mobile connection in the Dedrone Cloud |
| Configuration, Operation, and Alarms | Via the browser-based DroneTracker software (software version >= 4.2.15 and valid license) |
| Software Updates | Firmware and DroneDNA updates via a DroneTracker instance (cloud or server) |
