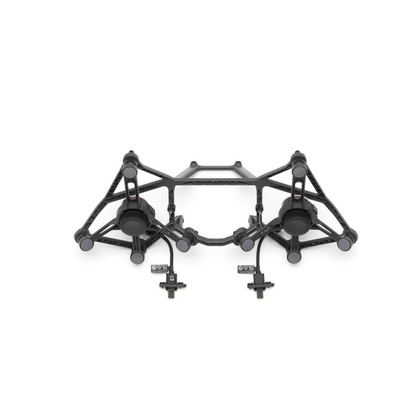

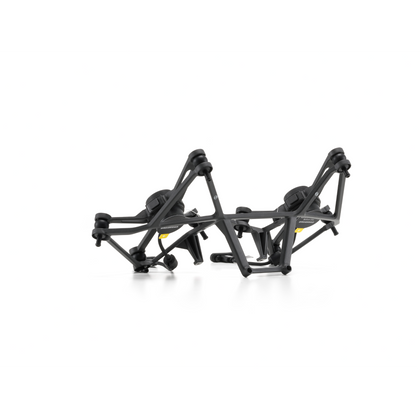

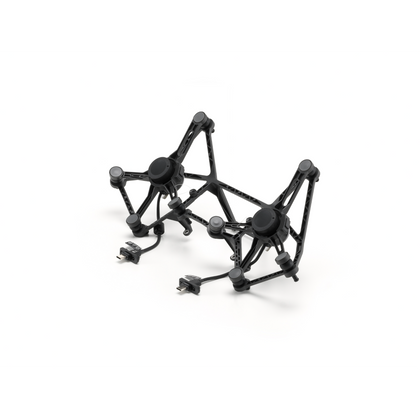

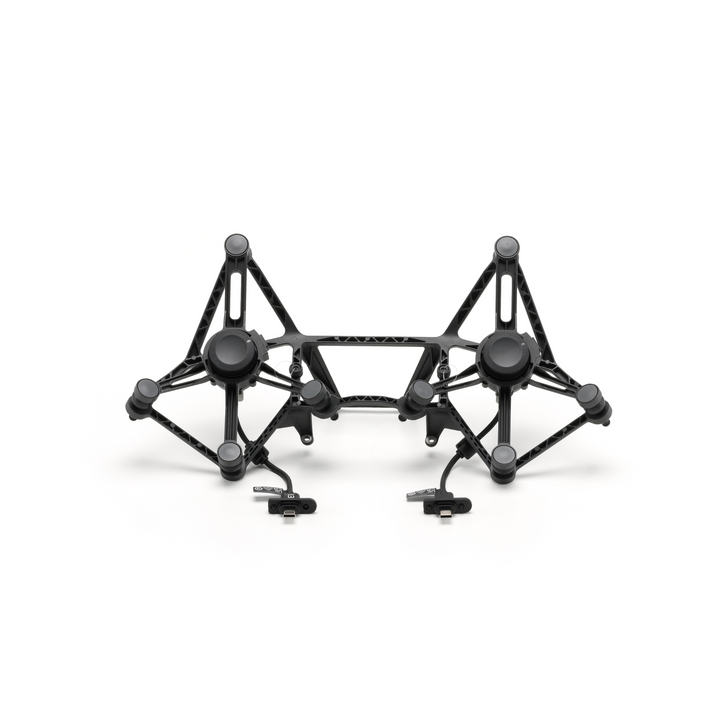

The DJI Matrice 400 Dual Gimbal Connector enables the dual downward gimbal configuration on the DJI Matrice 400, letting you mount and operate two downward-facing gimbals at the same time. It is the dedicated hardware for running two payloads side by side on a single flight, so you can combine complementary sensors or widen coverage without a second sortie.
Dual downward gimbals
Mount and operate two downward-facing gimbals simultaneously on the DJI Matrice 400 for combined-sensor missions.
950 g per mount
The Dual Gimbal Connector carries a maximum payload of 950 g per mount, per the DJI Matrice 400 specifications.
Matrice 400 compatible
Part of the Matrice 400 mounting ecosystem alongside single downward, third gimbal connector and Zenmuse L3 single gimbal options.
Two payloads, one flight
The Dual Gimbal Connector unlocks the dual downward gimbal configuration on the Matrice 400, so two downward-facing gimbals can be mounted and operated simultaneously. This lets operators pair complementary payloads on a single aircraft to gather more data per flight.
Each mount on the connector supports a maximum payload of 950 g per mount, as stated in the DJI Matrice 400 specifications.
Part of the Matrice 400 mounting system
The Matrice 400 supports several mounting options: single downward, dual downward, a third gimbal connector, and the Zenmuse L3 single gimbal connector. No upward gimbal connector can be installed on the Matrice 400.
The third gimbal connector supports up to 6 kg payload. When the single downward gimbal, the dual downward gimbal and the third gimbal connector are used simultaneously, the total weight of non-DJI payloads must not exceed 6 kg. DJI advises contacting the payload manufacturer for a test report to ensure safe flight during low-battery conditions.
Specifications
| Function | Enables the dual downward gimbal configuration on the DJI Matrice 400; mount and operate two downward-facing gimbals simultaneously |
|---|---|
| Maximum payload for Dual Gimbal Connector | 950 g per mount |
| Matrice 400 mounting options | Single downward, dual downward, third gimbal connector, and Zenmuse L3 single gimbal connector |
| Third gimbal connector | Supports up to 6 kg payload. With single downward, dual downward and third gimbal connector used simultaneously, the total weight of non-DJI payloads must not exceed 6 kg |
| Upward gimbal connector | No upward gimbal connector can be installed on the Matrice 400 |
| Compatible gimbal cameras (Matrice 400) | Zenmuse L3, Zenmuse H30, Zenmuse H30T, Zenmuse L2, Zenmuse P1 |
Compatibility and FAQ
Which aircraft does this connector work with?
The DJI Matrice 400 Dual Gimbal Connector is for the DJI Matrice 400. Important: accessories for the DJI Matrice 400 and DJI Matrice 350 are not compatible with each other. This part is also distinct from the DJI Matrice 300 Dual Gimbal Connector, which is a different accessory for a different aircraft. Please confirm your airframe before ordering.
How much can each mount carry?
The Dual Gimbal Connector has a maximum payload of 950 g per mount, as stated in the DJI Matrice 400 specifications.
Can I run more than two payloads at once?
The Matrice 400 mounting options include single downward, dual downward, a third gimbal connector, and the Zenmuse L3 single gimbal connector. The third gimbal connector supports up to 6 kg payload. When the single downward gimbal, the dual downward gimbal and the third gimbal connector are used simultaneously, the total weight of non-DJI payloads must not exceed 6 kg. DJI advises contacting the payload manufacturer for a test report to ensure safe flight during low-battery conditions. The aircraft also provides four external E-Port V2 ports, and the E4 port can be expanded into four payload ports via the E-Port HUB expansion plate, allowing up to seven payloads in total.
Which gimbal cameras are compatible with the Matrice 400?
Compatible gimbal cameras for the Matrice 400 include the Zenmuse L3, Zenmuse H30, Zenmuse H30T, Zenmuse L2 and Zenmuse P1.
