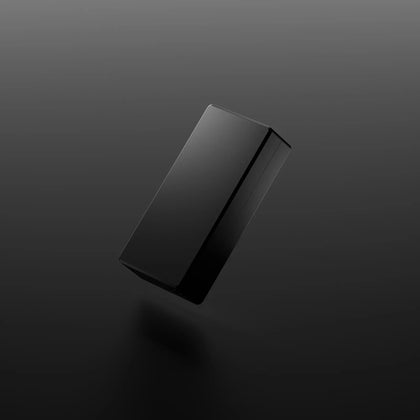

The DJI 240W Power Adapter (model CDX230-240) is the dedicated AC-mains power source for your compatible DJI charging hub. It delivers power to the hub through the SDC fast-charge interface, keeping your Matrice 4D Series batteries ready to fly at the pad or back at base.
Dedicated hub power
Supplies a compatible DJI charging hub through the SDC fast-charge interface using the dedicated SDC cable supplied with the hub.
Fast turnaround
Via the DJI Matrice 4D Series 240W Charging Hub in Ready-to-Fly Mode, about 30 minutes to charge one battery from 15% to 90% (DJI test-condition figure).
Model CDX230-240
The official adapter DJI also lists as the DJI 240W Portable Charger, matched to the 240W Charging Hub used by the Matrice 4D Series.
Built to power the hub, not a single battery
The DJI 240W Power Adapter feeds a compatible charging hub through the SDC interface. The dedicated SDC cable is supplied with the charging hub and is required for operation. On its own the adapter does not charge a standalone battery; it works as part of the hub-and-adapter system.
The DJI Matrice 4D Series charging hub cannot charge batteries using other USB-C chargers. The DJI 240W adapter, or a DJI Power series portable power station via its SDC port, is required to power the hub.
Charge modes for the 240W hub

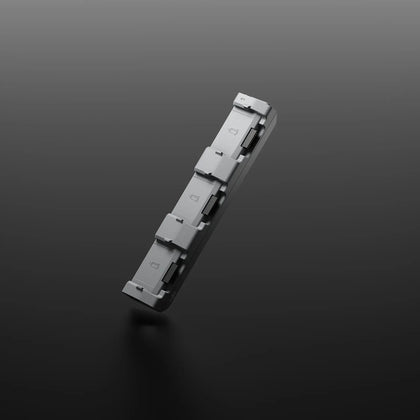

Used with the DJI Matrice 4D Series 240W Charging Hub, the hub offers two official modes. Standard Mode charges each battery to 100% in sequence. Ready-to-Fly Mode charges each battery to 90% and maintains that level for fast deployment.
Via the 240W hub, Standard Mode takes about 40 minutes to fully charge one Matrice 4D Series battery from 15%, and Ready-to-Fly Mode takes about 30 minutes to charge one battery from 15% to 90%. These are DJI test-condition figures; actual time varies with battery and ambient temperature, mains voltage, charging mode and connected devices.
Specifications
| Product name | DJI 240W Power Adapter (also listed by DJI as the DJI 240W Portable Charger) |
|---|---|
| Model | CDX230-240 |
| Function | 240W AC-mains power adapter that supplies a compatible DJI charging hub through the SDC fast-charge interface |
| Interface | SDC fast-charge interface; dedicated SDC cable supplied with the compatible charging hub is required |
| Compatible hub (primary) | DJI Matrice 4D Series 240W Charging Hub |
| Compatible hub (also named by DJI) | DJI Matrice 4 Series Charging Hub (200W), with the same adapter model CDX230-240 |
| Charge time (Standard Mode, via 240W hub) | About 40 minutes to fully charge one Matrice 4D Series battery from 15% (DJI test-condition figure) |
| Charge time (Ready-to-Fly Mode, via 240W hub) | About 30 minutes to charge one battery from 15% to 90% (DJI test-condition figure) |
| Alternative power source | A DJI Power series portable power station can power the charging hub through its SDC port (firmware must be up to date) |
DJI test-condition figures. Actual charge time varies with battery and ambient temperature, mains voltage, charging mode and connected devices.
Compatibility and FAQ
Can the adapter charge a battery on its own?
No. The DJI 240W Power Adapter supplies power to a compatible charging hub through the SDC interface. It must be used with the dedicated SDC cable supplied with the hub, and the batteries are charged in the hub, not directly from the adapter.
Which hubs and power sources work with this adapter?
The adapter (model CDX230-240) powers the DJI Matrice 4D Series 240W Charging Hub, and DJI also names the same model for the DJI Matrice 4 Series Charging Hub (200W). Alternatively, a DJI Power series portable power station can power a compatible charging hub through its SDC port, provided its firmware is up to date. The DJI Matrice 4D Series charging hub cannot be charged with other USB-C chargers.
