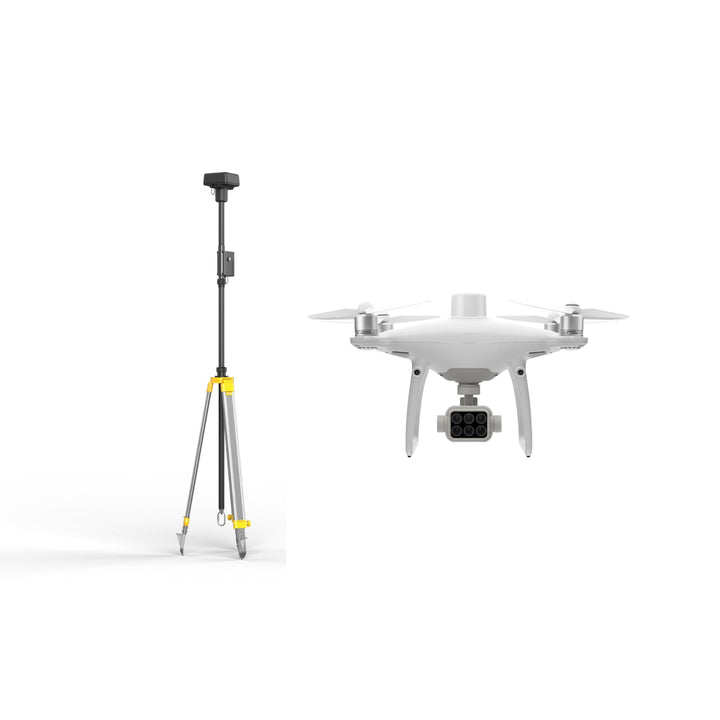

DJI P4 Multispectral Survey Drone + D-RTK 2 High Precision GNSS Mobile Station Combo

  • Sale
  • Regular price R 0.00
Tax included.



Farm to FiguresGain Immediate Insights into Plant Health

The P4 Multispectral consolidates the process of capturing data that gives insight into crop health and vegetation management. DJI has created this platform with the same powerful performance standards that DJI is known for, including 27 minutes max flight time and up to 7 km1 transmission range with the OcuSync system.

Aircraft

Takeoff Weight

1487 g

Diagonal Distance (Propellers Excluded)

350 mm

Max Service Ceiling Above Sea Level

19685 ft (6000 m)

Max Ascent Speed

6 m/s (automatic flight); 5 m/s (manual control)

Max Descent Speed

3 m/s

Max Speed

31 mph (50 kph) (P-mode); 36 mph (58 kph) (A-mode)

Max Flight Time

Approx. 27 minutes

Operating Temperature

0° to 40° C (32° to 104° F)

Operating Frequency

2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)

Transmission Power (EIRP)

2.4 GHz: < 20 dBm (CE / MIC / KCC)
5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Hover Accuracy Range

RTK enabled and functioning properly:
Vertical: ± 0.1 m; Horizontal: ± 0.1 m
RTK disabled:
Vertical: ± 0.1 m (with vision positioning); ± 0.5 m (with GNSS positioning)
Horizontal: ± 0.3 m (with vision positioning); ± 1.5 m (with GNSS positioning)

Image Position Compensation

The relative positions of the centers of the six cameras’ CMOS and the phase center of the onboard D-RTK antenna have been calibrated and are recorded in the EXIF data of each image.


GNSS

Single-Frequency High-Sensitivity GNSS

GPS + BeiDou + Galileo (Asia); GPS + GLONASS + Galileo (other regions)

Multi-Frequency Multi-System High-Precision RTK GNSS

Frequency Used
GPS: L1/L2; GLONASS: L1/L2; BeiDou: B1/B2; Galileo: E1/E5
First-Fixed Time: < 50 s
Positioning Accuracy: Vertical 1.5 cm + 1 ppm (RMS); Horizontal 1 cm + 1 ppm (RMS).
1 ppm indicates error with a 1 mm increase over 1 km of movement.
Velocity Accuracy: 0.03 m/s


Mapping Functions

Ground Sample Distance (GSD)

(H/18.9) cm/pixel, H indicates the aircraft altitude relative to the area mapped (unit: m)

Rate of Data Collection

Max operating area of approx. 0.47 km2 for a single flight at an altitude of 180 m, i.e., GSD is approx. 9.52 cm/pixel


Gimbal

Controllable Range

Tilt: -90° to +30°


Vision System

Velocity Range

≤ 31 mph (50 kph) at 6.6 ft (2 m) above ground with adequate lighting

Altitude Range

0 - 33 ft (0 - 10 m)

Operating Range

0 - 33 ft (0 - 10 m)

Obstacle Sensory Range

2 - 98 ft (0.7 - 30 m)

Operating Environment

Surfaces with clear patterns and adequate lighting (> 15 lux)


Camera

Sensors

Six 1/2.9” CMOS, including one RGB sensor for visible light imaging and five monochrome sensors for multispectral imaging.
Each Sensor: Effective pixels 2.08 MP (2.12 MP in total)

Filters

Blue (B): 450 nm ± 16 nm; Green (G): 560 nm ± 16 nm; Red (R): 650 nm ± 16 nm; Red edge (RE): 730 nm ± 16 nm; Near-infrared (NIR): 840 nm ± 26 nm

Lenses

FOV (Field of View): 62.7°
Focal Length: 5.74 mm (35 mm format equivalent: 40 mm), autofocus set at ∞
Aperture: f/2.2

RGB Sensor ISO Range

200 - 800

Monochrome Sensor Gain

1 - 8x

Electronic Global Shutter

1/100 - 1/20000 s (visible light imaging); 1/100 - 1/10000 s (multispectral imaging)

Max Image Size

1600×1300 (4:3.25)

Photo Format

JPEG (visible light imaging) + TIFF (multispectral imaging)

Supported File Systems

FAT32 (£ 32 GB); exFAT (> 32 GB)

Supported SD Cards

microSD with a minimum write speed of 15 MB/s. Max Capacity: 128 GB. Class 10 or UHS-1 rating required

Operating Temperature

0° to 40° C (32° to 104° F)


Remote Controller

Operating Frequency

2.4000 GHz to 2.4835 GHz (Europe, Japan, Korea)
5.725 GHz to 5.850 GHz (Other countries/regions)

Transmission Power (EIRP)

2.4 GHz: < 20 dBm (CE / MIC / KCC)
5.8 GHz: < 26 dBm (FCC / SRRC / NCC)

Max Transmission Distance

FCC / NCC: 4.3 mi (7 km)
CE / MIC / KCC / SRRC: 3.1 mi (5 km)(Unobstructed, free of interference)

Built-in Battery

6000 mAh LiPo 2S

Operating Current / Voltage

1.2 A @ 7.4 V

Mobile Device Holder

Tablets and smartphones

Operating Temperature

0° to 40° C (32° to 104° F)


Intelligent Flight Battery (PH4-5870mAh-15.2V)

Capacity

5870 mAh

Voltage

15.2 V

Battery Type

LiPo 4S

Energy

89.2 Wh

Net Weight

468 g

Operating Temperature

-10° to 40° C (14° to 104° F)

Charging Temperature

5° to 40° C (41° to 104° F)

Max Charging Power

160 W


Intelligent Flight Battery Charging Hub (PHANTOM 4 CHARGING HUB)

Voltage

17.5 V

Operating Temperature

5° to 40° C (41° to 104° F)


AC Power Adapter (PH4C160)

Voltage

17.4 V

Rated Power

160 W
