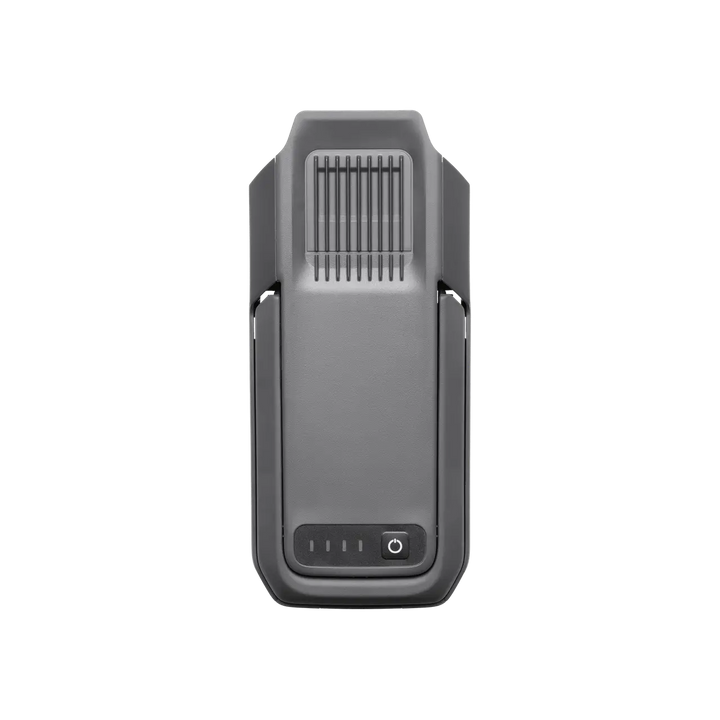

The DJI TB100 Intelligent Flight Battery is the dedicated power source for the DJI Matrice 400. With 977 Wh of energy from a 13S Li-ion cell pack, onboard self-heating and a rated 400 cycles, it is built to keep demanding mining, security, utilities and infrastructure missions in the air. The Matrice 400 carries a single TB100, so keeping a charged spare set ready is the fastest way to minimise ground time between sorties.
977 Wh of usable energy
A 20254 mAh, 48.23 V (13S Li-ion) pack delivering 977 Wh to power the Matrice 400 through extended enterprise flights.
Self-heating for cold starts
Supports low-temperature self-heating charging and onboard battery heating, so crews can deploy in demanding conditions.
Rated for 400 cycles
A 400-cycle count and a 4C discharge rate make the TB100 a hard-working, long-serving part of your fleet power plan.
Purpose-built for the Matrice 400
The TB100 is the Intelligent Flight Battery listed on DJI's official Matrice 400 specifications. Unlike earlier Matrice platforms that used dual batteries, the Matrice 400 runs on a single TB100, which simplifies swaps on the flight line and keeps your spares logistics straightforward.
Note that the TB100 is a distinct product from the TB100C Tethered Battery. If your operation uses a tethered system, confirm you are specifying the correct part before ordering.
Engineered for field conditions
The TB100 charges between 5 and 45 C (41 to 113 F) and discharges across a wide -20 to 75 C (-4 to 167 F) range, with battery heating supported at the single-battery, onboard and battery-station levels. Low-temperature self-heating charging helps crews prepare power even when ambient temperatures drop.
Each pack weighs 4720 +/- 20 g, with a 54.6 V maximum charging voltage and a 2C maximum charging power for efficient turnaround between flights.
A pack you can carry and swap
An integrated foldable carry handle is built into the TB100 housing, so a 4720 +/- 20 g pack can be lifted and changed quickly on the flight line. Keeping a spare TB100 charged means less ground time between sorties on the Matrice 400.
Specifications
| Model | TB100 |
|---|---|
| Capacity | 20254 mAh |
| Standard Voltage | 48.23 V |
| Max Charging Voltage | 54.6 V |
| Cell Type | Li-ion 13S |
| Energy | 977 Wh |
| Weight | 4720 +/- 20 g |
| Charging Temperature | 5 to 45 C (41 to 113 F) |
| Discharging Temperature | -20 to 75 C (-4 to 167 F) |
| Battery Heating | Supported (single battery, onboard, and battery station) |
| Discharge Rate | 4C |
| Max Charging Power | 2C |
| Low-Temperature Charging | Supports low-temperature self-heating charging |
| Cycle Count | 400 |
Compatibility and FAQ
Which aircraft does the TB100 power?
The TB100 is the Intelligent Flight Battery specified for the DJI Matrice 400. The Matrice 400 carries a single TB100 battery, unlike earlier Matrice platforms that used a dual-battery configuration.
Is the TB100 the same as the TB100C?
No. The TB100 is a flight battery and is distinct from the TB100C Tethered Battery, which is a separate product. Confirm the correct part for your application before ordering.
Can I charge or operate the TB100 in cold conditions?
The TB100 supports low-temperature self-heating charging and onboard battery heating at the single-battery, onboard and battery-station levels. Charging is rated for 5 to 45 C (41 to 113 F) and discharging for -20 to 75 C (-4 to 167 F).
How long does the battery last?
DJI rates the TB100 at a cycle count of 400. Actual service life depends on usage patterns, storage and charging practices.
