EagleNXT RedEdge-P Triple Superspectral Sensor

Name: EagleNXT RedEdge-P Triple Superspectral Sensor
Brand: GoUAV
Availability: InStock
Rating: 5 (5 reviews)

Sale
Regular price R 0.00

Tax included.

Superspectral sensor supporting agronomy and ecology.

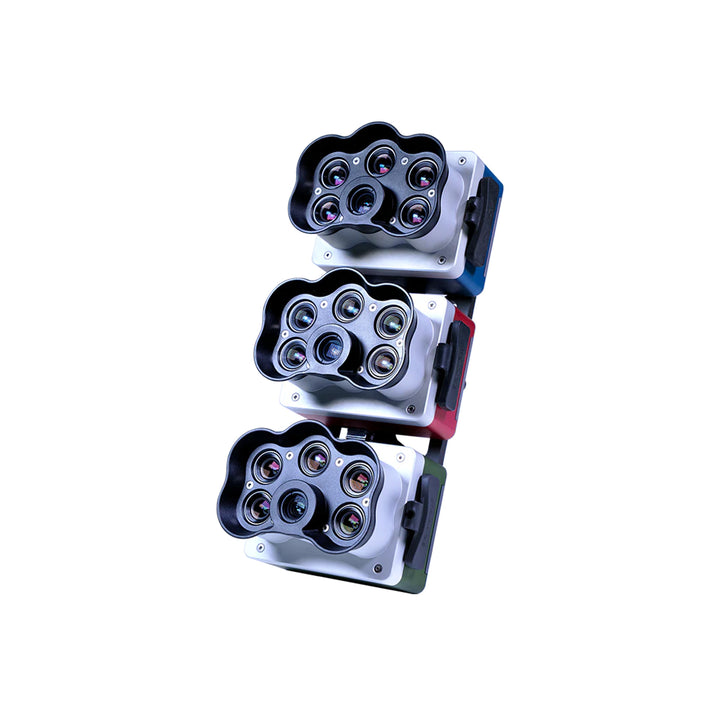

The RedEdge-P Triple camera features a 15-band multispectral camera with pan-sharpening for 2 cm (0.8 in) resolution at 120m (400 ft alt.), far exceeding typical 10 m (32 ft) satellite imagery.

Double radiometric calibration ensures reliable data in changing light, while narrow and multiple red-edge bands deliver high accuracy and advanced stress analysis. It captures three raw DNG images per second with synchronized 15-band triggering and geotagging for efficient flights and streamlined processing.

The system is RTK-enabled and NDAA compliant.

The RedEdge-P Triple forms part of GoUAV’s wider range of MicaSense Multispectral Drone Sensors, Drone Cameras and UAV Payloads, and Precision Agriculture & Farming Drones for crop analysis, vegetation mapping, environmental monitoring and advanced agricultural research.

Get in Touch

COMPATIBLE DRONES

For advanced DJI-based payload workflows, pair the RedEdge-P Triple with enterprise platforms such as the DJI Matrice 400 or explore GoUAV’s DJI Matrice 4 Series for compact enterprise mapping and inspection operations.

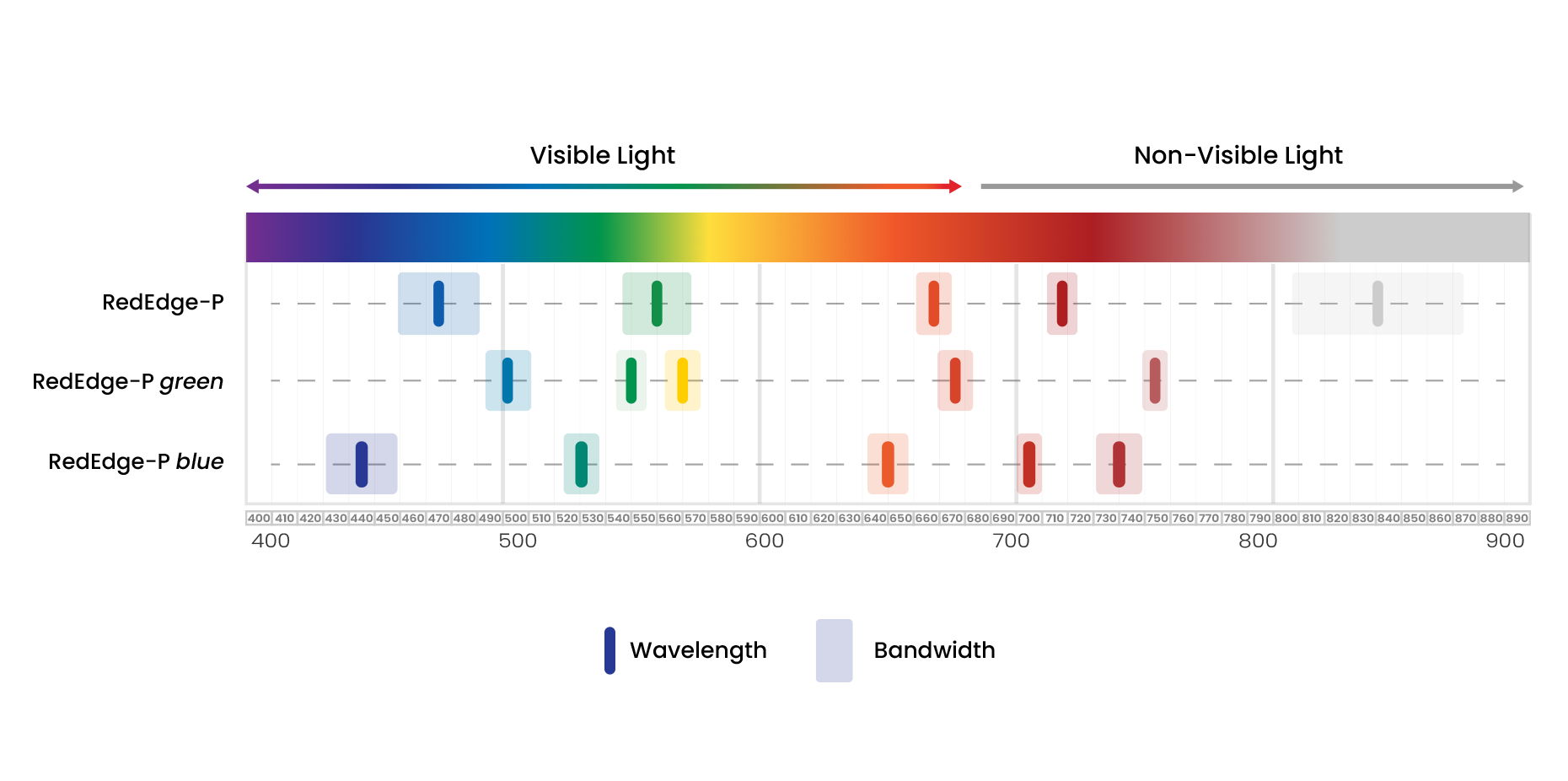

SYNCHRONIZED SUPERSPECTRAL CAPTURE

Simultaneous capture of up to 15 bands, enabling multiple high-resolution outputs such as RGB, crop vigor indices and composites (NDVI, NDRE, CIR), and high-resolution panchromatic.

Perform detailed analysis on carotenes and antrocyanin by using indices like PRI, ARI & CRI.

To process and analyse superspectral drone datasets, explore GoUAV’s Drone Software Solutions, including mapping and data-processing tools such as DJI Terra and UgCS Mapper.

15 multispectral bands

RedEdge-P

Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), Near-IR 842(57)

RedEdge-P green

Cyan 502(18), Green 550(12), Yellow 570(14), Red 678(14), Near-IR 754(10)

RedEdge-P blue

Ocean blue 444(28), Green 531(14), Red 650(16), Red Edge 705(10), Red Edge 740(18)

NDAA compliant

All MicaSense series sensors are NDAA compliant, designed, manufactured, and engineered in the USA.

FEATURES

Industry standard for data quality and repeatability

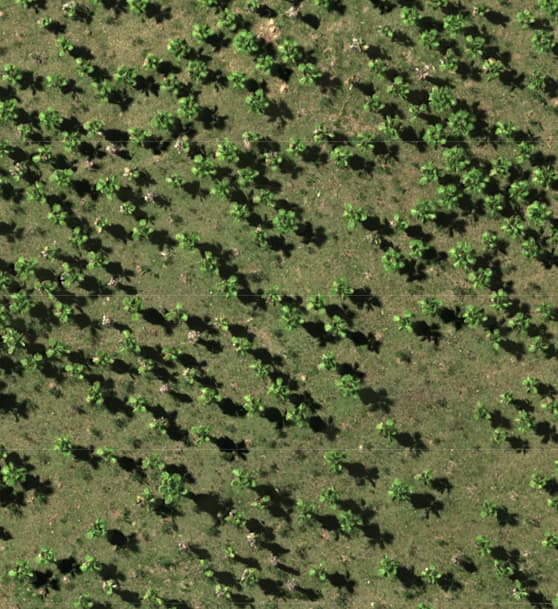

High resolution panchromatic sensor - RedEdge-P - Precision

With a high-resolution panchromatic imager, RedEdge-P enables higher-resolution RGB and multispectral outputs – 2 cm per pixel / 0.78 in per pixel resolution when flying at 60 m / 200 ft . With sharper imagery, you can spot smaller problems or features sooner and make more reliable management decisions across a variety of use cases.

For users comparing multispectral sensor options, view the MicaSense RedEdge-P Camera Sensor Kit or compare with the EagleNXT Altum-PT Multispectral & Thermal Drone Sensor.

Fast capture rate

RedEdge-P leverages CFexpress, a 2 TB removable storage that enables up to three captures per second*, immediate turnaround time between flights by swapping cards, and fast card-to-computer upload speeds for more efficient data management.

*depending on user configuration settings

Global shutter

The global shutter of RedEdge-P allows for distortion-free image captures.

WHY RedEdge-P

Increase data accuracy and repeatability

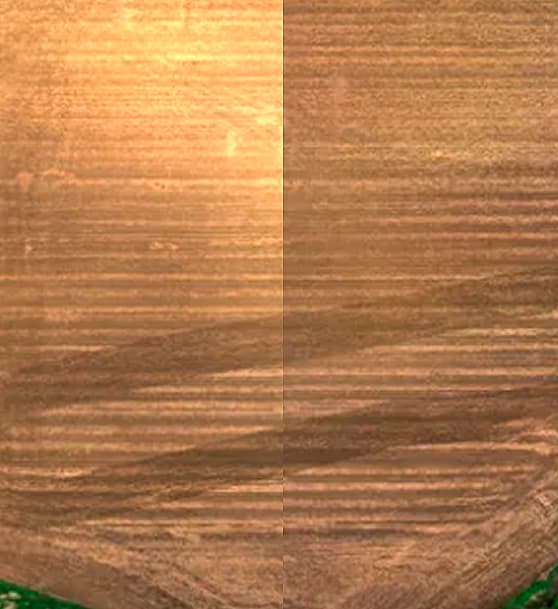

Calibrated multispectral imagery

Each RedEdge-P camera kit comes with a Reflectance Panel for on-the-ground calibration as well as a DLS2 light sensor for irradiance and sun angle measurements. These radiometric calibration tools account for different weather and light conditions, providing more accurate, reliable data that enable time series analysis and comparability of outputs over time.

For repeatable crop monitoring, environmental surveys and seasonal vegetation analysis, pair calibrated multispectral imagery with Precision Agriculture & Farming Drones and Natural Resource Management workflows.

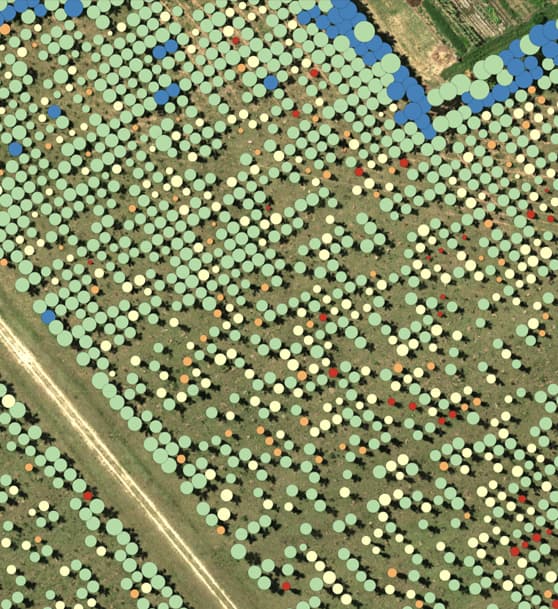

Powerful AI capabilities

Thanks to the panchromatic band, RedEdge-P enables high-resolution RGB and multispectral imagery for machine learning applications such as plant counting and advanced vegetation research applications.

RedEdge-P Triple data supports advanced vegetation analytics, plant counting, phenotyping and crop research. Explore GoUAV’s Precision Agriculture & Farming Drones and MicaSense Multispectral Drone Sensors for related solutions.

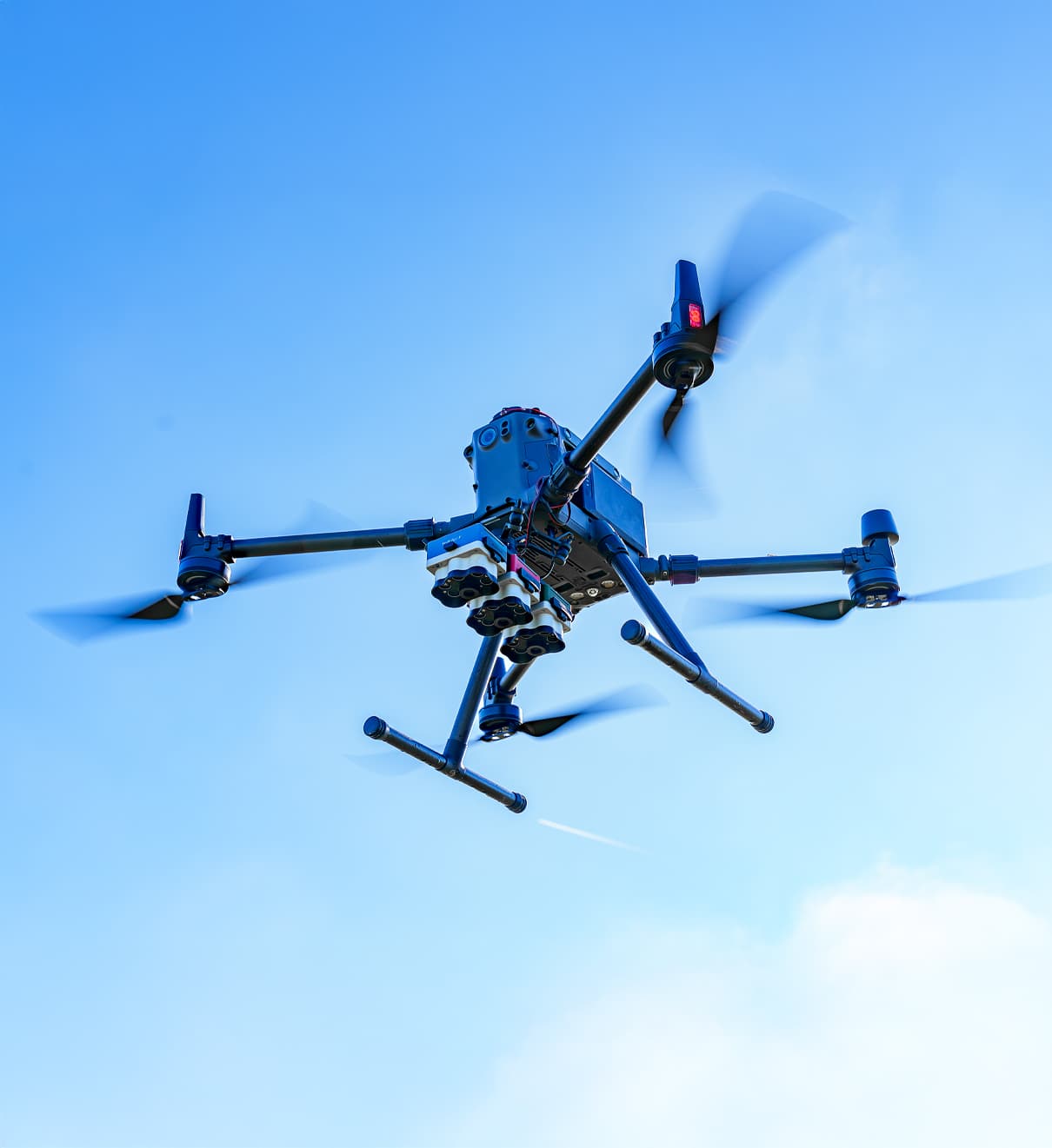

Compatible with a wide range of drones and processing software

The camera is compatible with DJI’s M350 platforms, and our new dovetail connector, available in early 2026, will enable seamless integration with Freefly and Inspired Flight drones.

USE CASES AND APPLICATIONS

Designed specifically for UAV and vegetation mapping

Plant Counting

Plant counting algorithms require high-resolution imagery. RedEdge-P combines a Panchromatic lens with 5-high-res multispectral lenses enabling high-res RGB and multispectral outputs, allowing plant count even at early growth stages.

Phenotyping

Manually measuring plant characteristics is time-consuming. RedEdge-P band combination enables high-resolution multispectral outputs, allowing the detection of variability at the leaf level.

Plant health mapping

RedEdge-P’s high-resolution multispectral outputs allow the generation of indices and composites to see individual chlorophyll levels in the plants and compare over time.

Fertilizer management

RedEdge-P’s high-res and accurate outputs allow easy identification of areas low in nutrients and help monitor the effects of fertilizer applications throughout the season and determine if, when, and where a new application is needed.

Disease identification

RedEdge-P captures a critical part of the light spectrum for studying plants (712–722 nm), called the red edge band. It is in this section of the spectrum that the first signs of stress start to show. Using analytics generated with the red edge band, it is possible to identify disease sooner and act faster to stop the spread.

Species differentiation

Some differences among species may not be visible to the naked eye. High-res multispectral data allows for species differentiation, weeds included, by highlighting characteristics such as chlorophyll content, vigor, and leaf size

Advanced crop scouting

High-res multispectral and RGB imagery provides advanced field scouting capabilities. In one flight, it is possible to collect accurate and geotagged information of a problem, making it easy to assess the situation and determine the appropriate intervention.

High-res 3D point clouds

RedEdge-P’s 5.1 megapixel panchromatic band provides over twice the ground resolution of the industry-standard RedEdge-MX, resulting in 3D point clouds with up to 4 times the point density.

For high-resolution mapping and 3D data workflows, explore GoUAV’s Mapping & Aerial Surveying, DJI Terra, and Drone Software Solutions.

These workflows are ideal for Precision Agriculture & Farming Drones, Natural Resource Management, MicaSense Multispectral Drone Sensors, and professional Mapping & Aerial Surveying applications.

GET THE RIGHT SENSOR

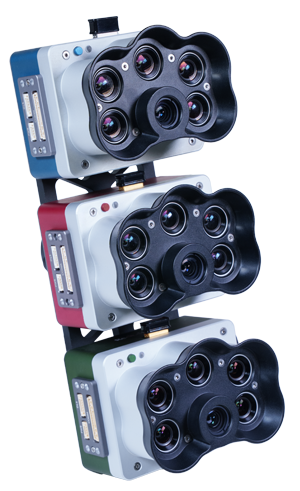

RedEdge-P Triple kit

Included:

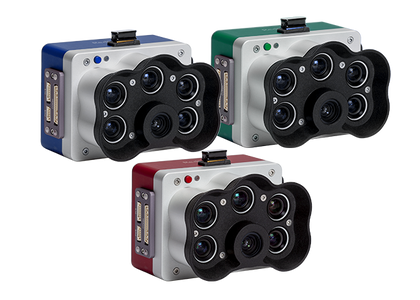

RedEdge-P, RedEdge-P blue and RedEdge-P green cameras
DLS 2 light sensor with embedded GPS
CRP2 Calibrated Reflectance Panel
USB Wi-Fi dongle
Lens cover
Integration cables
Assorted mounting hardware for dual and triple uses
CFexpress card
CFexpress card reader
Hard carrying case
Start guide

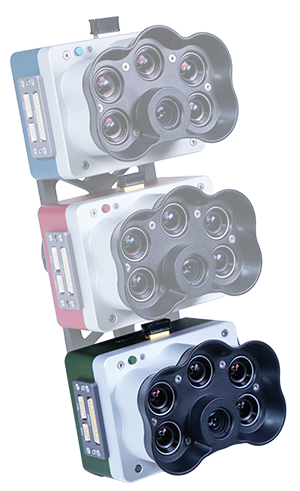

RedEdge-P green to Triple kit

Transform your RedEdge-P Dual into a RedEdge-P triple by adding the RedEdge-P green camera.

RedEdge-P green camera
USB Wi-Fi dongle
Lens cover
Integration cables
Triple Mounting hardware
CFexpress card
Hard carrying case
Start guide
