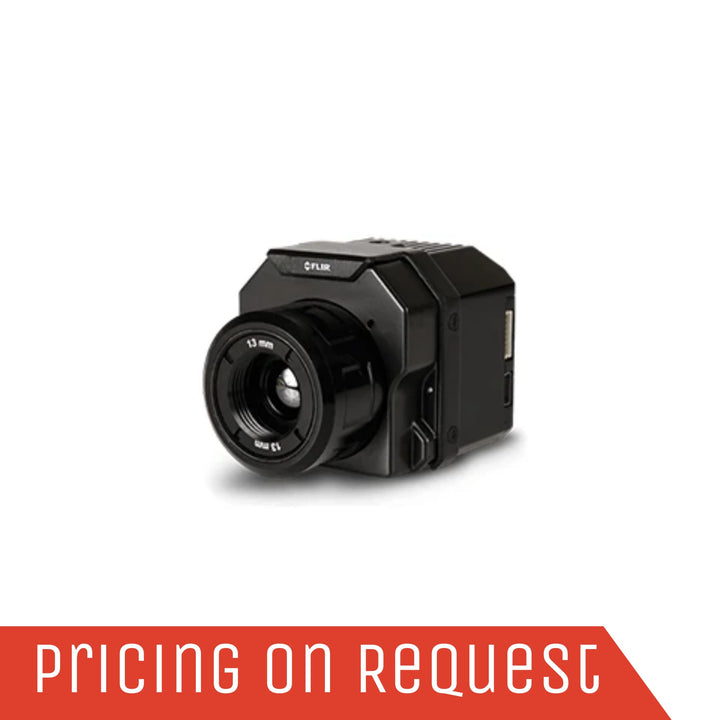

FLIR Vue Pro R Radiometric Drone Thermal Camera

Tax included.

Please CONTACT US if you are interested in this product.


The new Vue Pro R from FLIR gives both drone operators and certified thermographers the power to gather accurate, non-contact temperature measurements from an aerial perspective. Every still image the Vue Pro R saves contains accurate, calibrated temperature data embedded in every pixel, adding even more value to your sUAS operations and services than ever.

Keeping the same industry-leading thermal imaging quality, interfaces, and capability as the best-selling Vue Pro, the Vue Pro R adds fully radiometric data-gathering to sUAS applications as diverse as building and roof inspections, power grid inspections, infrastructure analysis, precision agriculture, and public safety.


The Vue Pro R is more than a thermal imager – it captures accurate, non-contact temperature measurements from an aerial perspective and saves images with calibrated temperature data embedded in every pixel.

FLIR Vue-Pro R Radiometry

On-Board Recording

Vue Pro R captures regular JPEGs and fully radiometric R-JPEGs that can be fully analyzed in FLIR Tools thermography analysis and reporting software. It also records 8-bit digital video in MJPEG or H.264 formats, and 14-bit TIFFs right on the camera so you won’t lose any of your data to transmission loss. Imagery is saved to the micro-SD card and can be retrieved either directly from the card or by plugging the camera into a USB cable, where your computer will see it as a storage device.

MAVLink Integration & Camera Control

Like Vue Pro, Vue Pro R’s Accessory Port connection gives you access to MAVLink commands camera controls over PWM commands, so you can select color palettes, start and stop recording, or trigger the camera's e-zoom in-flight from your radio controller. If MAVLink is enabled, two camera controls are available; without MAVLink you can control up to four camera controls.

Easy to Configure

Vue Pro R comes with a built-in, low-power Bluetooth module, so you can easily configure your camera with our custom iOS or Android apps before you take off. Change color palettes, set your image optimization features, configure your PWM inputs, and start recording all without lugging a computer to the field.

Power & HDMI Video Module

An optional accessory, the Power/Video Module makes Vue Pro R easier to integrate than ever. Its 10-pin mini-USB connector accepts a much wider span of input power – from 5 to 28 VDC – and provides reverse polarity protection. This connector still provides analog video output and gives you access to the camera’s on-board storage like any other USB device.

Its micro-HDMI connector outputs HDMI video that is compatible with digital drone airborne systems like DJI Lightbridge and 3DR Solo, making full digital downlink of thermal video a breeze. All this in a package that’s only 11 mm thick and weighs 15 grams.

The Power & HDMI Video Module is an accessory and is sold separately.


With the same powerful thermal imaging core used in the most popular cameras in the world, FLIR Vue Pro R brings affordable, calibrated radiometry to drone operators, making it perfect for myriad applications like:

  • Roof inspections
  • Power line inspections
  • Substation inspections
  • Cell tower inspections
  • Search and rescue
  • Precision agriculture
  • Security
  • Surveying

FLIR Vue Pro R Specifications

FLIR Vue Pro R Specifications

Uncooled VOx Microbolometer

Sensor Resolution



Lens Options(FOV for Full-Sensor Digital Output)

9 mm; 69° × 56°13 mm; 45° × 37°19 mm; 32° × 26°

6.8 mm; 45° × 35°9 mm; 35° × 27°13 mm; 25° × 19°

Lens Options*(FOV for NTSC Analog Output)

9 mm; 62° × 49°13 mm; 45° × 35°19 mm; 32° × 24°

6.8 mm; 44° × 33°9 mm; 34° × 26°13 mm; 24° × 18°

Spectral Band

7.5 - 13.5 μm

Full Frame Rates

30 Hz (NTSC); 25 Hz (PAL)

Exportable Frame Rates

7.5 Hz (NTSC); 8.3 Hz (PAL)

Measurement Accuracy

+/-5°C or 5% of reading in -25°C to +135°C range

+/-20°C or 20% of reading in -40°C to +550°C range


2.26" x 1.75" (including lens)

Precision Mounting Holes

Two M2x0.4 on each of two sides & bottomOne 1/4-20 threaded hole on top

Image Optimization for sUAS


Scene Presets & Image Processing?

Yes – Adjustable in App

Invertable Image?

Yes - Adjustable in App

Color Palettes

Yes – Adjustable in App and via PWM


Yes – Adjustable in App and via PWM

Input Voltage

4.8 - 6.0 VDC

Power Dissipation (peak)

2.1 W (3.9 W)

Radiometric Temperature Range

0°C to +40°C

Operating Temperature Range

-20°C to +50°C

Non-Operating Temperature Range

-55°C to +95°C

Operational Altitude

+40,000 feet

Input Power Range

5 VDC – 28 VDC

Reverse Polarity Protection?


Analog Video Output?


HDMI Output

1280x720 @ 50 Hz, 60 Hz
