MicaSense AgEagle Altum-PT Synchronized Thermal & Multispectral Sensor

  • Sale
  • Regular price R 0.00
Tax included.

Please CONTACT US if you are interested in this product.



MicaSense Altum Synchronized Thermal & Multispectral Sensor

Integrates a radiometric thermal camera with five high-resolution narrow bands, producing advanced thermal, multispectral and high-resolution imagery in one flight for advanced analytics.

Key Features

INCREASED STORAGE

New professional removable storage standard in CFexpress, enabling over two captures per second, immediate turnaround time between flights by swapping cards, and super-fast card-to-computer upload speeds for more efficient data management.

TWICE THE SPATIAL RESOLUTION OF THE PREVIOUS ALTUM

Altum-PT features an ultra-high resolution panchromatic sensor which allows for “pan-sharpening” the multispectral imagery, ultimately increasing the spatial resolution of the multispectral data: 1.2 cm (0.47in) pan-sharpened ground resolution when flying at 60m (200ft).

UPGRADED THERMAL SENSOR

Altum-PT features a built-in 320 x 256 FLIR Boson® that enables thermal maps at twice the ground resolution of Altum - 17cm from 60m flight altitude.


CALIBRATED MULTISPECTRAL IMAGERY

CRP 2  A new compact version of our Calibrated Reflectance Panel. Same functionality, now in a smaller size and easier to carry!

**Note: Each camera kit comes with the radiometric calibration tools you need to enable comparison over time.

DLS 2 Our next-generation light sensor, with cutting-edge technology for irradiance and sun angle measurements. It provides more accurate, reliable data, greatly reduces the need for post-processing, and substantially improves radiometric accuracy. With the integrated GPS, setup with any aircraft is simple.

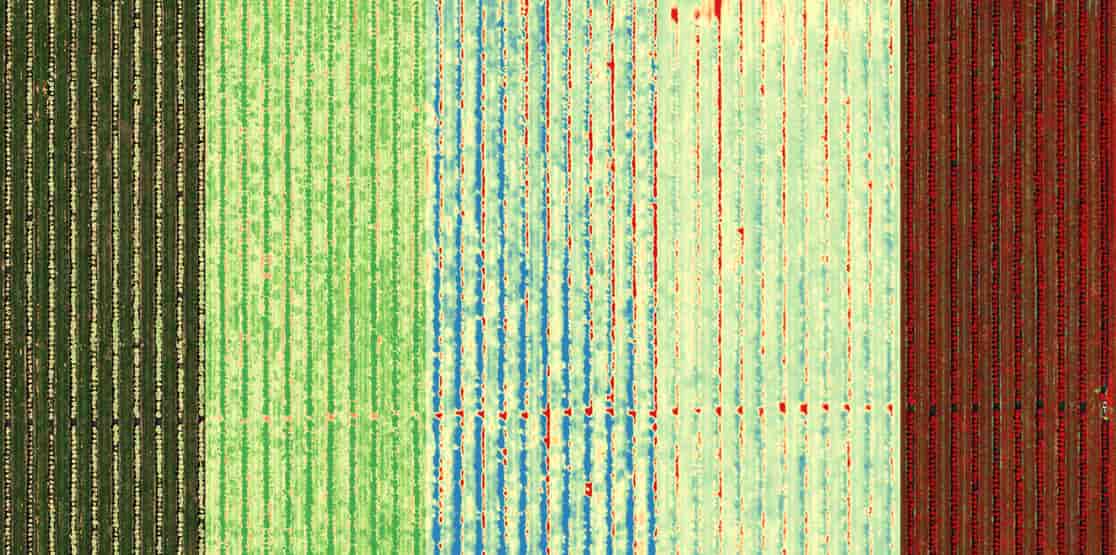

SYNCHRONIZED THERMAL AND MULTISPECTRAL IMAGERY

The MicaSense Altum-PT captures synchronized multispectral, thermal, and panchromatic data for pixel-aligned outputs at incredibly high resolutions. The capture of these bands happens simultaneously, eliminating the need for data alignment in post-processing.

ULTRA-HIGH RESOLUTION, UNLIMITED ANALYTICAL CAPABILITIES

RGB, multispectral, and thermal imagery at higher resolutions for advanced vegetation research applications.

IRRIGATION SCHEDULING

Determining irrigation time, frequency, and duration is a critical factor in production agriculture since it directly impacts the health of crops. Altum-PT thermal imagery provides powerful insights into water management, helping irrigation managers determine the correct watering and identify leaks or clogs in the irrigation system by the difference in crop canopy and soil temperature.

DISEASE, PEST AND NUTRIENT DEFICIENCY DETECTION

With the high-resolution multispectral imagery from Altum-PT, users have a better chance to identify problems affecting the physiology of the plant canopy. Diseases, insects, and nutrient issues often cause physiological damage before symptoms are visible in RGB. Using the different multispectral indices and composites of the pan-sharpened data, these issues can be detected sooner.

PLANT PHENOTYPING

Manually measuring plant characteristics is time-consuming. Altum-PT captures more data in less time, allowing researchers to more easily understand how different traits react to different growing conditions.

FRUIT YIELD ESTIMATIONS

Popular fruit yield estimation methods like manual fruit count or time series analysis are time-consuming and expensive. Altum-PT offers a combination of high-resolution RGB, multispectral, and thermal imagery, enabling more precise yield predictions by allowing algorithm-based fruit counts and temperature analysis.

WATER STRESS PREDICTION

Canopy temperature is a valuable indicator of plant stress. Altum-PT thermal imager allows farmers to periodically evaluate plant physiological status and detect subtle changes in canopy temperature that could be an indicator of water stress.

PRESSURE ISSUES AND CLOG DETECTION IN IRRIGATION SYSTEMS

Altum-PT's thermal imagery can help identify clogs and irrigation leaks through the water cooling effects or lack thereof on the vegetation and ground. Areas with excessive irrigation will appear noticeably cooler than the rest of the field. Areas with no irrigation will show higher temperatures than the rest of the field.


MICASENSE INCREASES DATA ACCURACY AND REPEATABILITY

You know the benefits of forecasting and data precision.
We focus on accuracy and repeatability in our data so that you can trust the results of your analysis.

Altum-PT Sensor Specifications

Weight

460 g (16.2 oz.)
Altum-PT + DLS2

Dimensions

11.0 x 8.0 x 6.9 cm
(4.3 in x 3.1 in x 2.7 in)

External Power

7.0 V - 25.2 V

Power Input

5.5/7.0/10W (standby, average, peak)

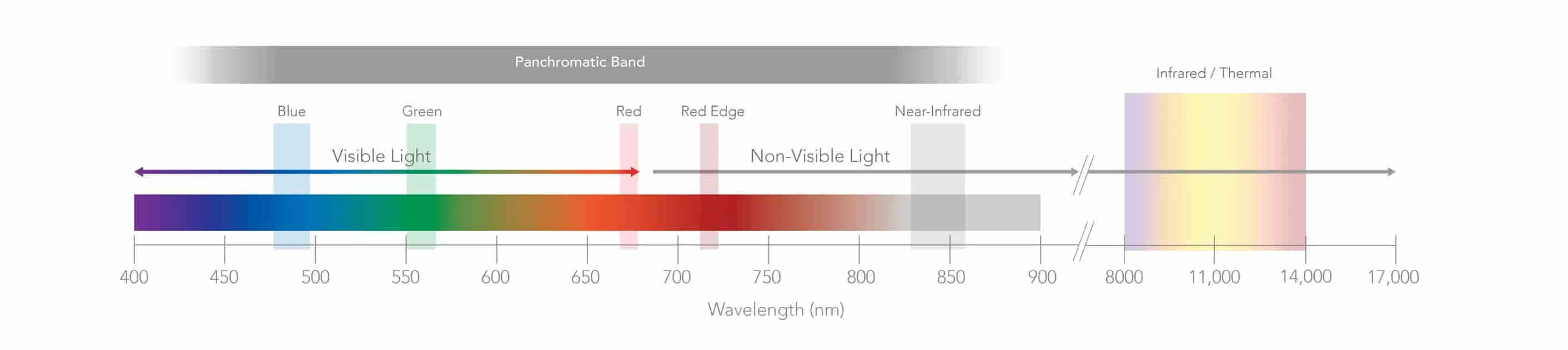

Spectral Bands

Blue 475(32), Green 560(27), Red 668(14), Red Edge 717(12), NIR 842(57)

Sensor Resolution

2064 x 1544 (3.2MP per MS band)
4112 x 3008 (12MP per PAN band)
320 × 256 thermal infrared

RGB Color Output

12.4 MP (global shutter, aligned with all bands)

Thermal

FLIR LWIR thermal infrared 7.5-13.5um radiometrically calibrated

Multispec GSD (per multispec band)

5.28 cm per pixel at 120 m

Thermal GSD

33.5 cm per pixel at 120 m

Capture Rate

2 capture per second raw DNG*

Interfaces

3 configurable GPIO: select from trigger input, PPS input, PPS output, and top of frame signals. Host virtual button. USB 2.0 port for WiFi. Serial. 10/100/1000 Ethernet. CFexpress for storage

Field of View

50° HFOV x 38° VFOV (multispectral)
46° HFOV x 35° VFOV (panchromatic)
48o x 39o (thermal)

Storage

CFexpress Card

Altum Sensor Kit Details

Standard KitAltum Kit Includes:

  • Altum Sensor
  • DLS 2 with Embedded GPS
  • Lens Cover
  • External Storage Device (USB 3.0 - 128 GB)
  • Calibrated Reflectance Panel (CRP)
  • Cables and Mounting Screws
  • Hard Carrying Case
  • Quick Start Guide

DJI Skyport Kit Altum Kit Includes:

  • Altum Sensor
  • DLS 2 with Embedded GPS
  • Lens Cover
  • SkyPort Adapter
  • External Storage Device (USB 3.0 - 128 GB)
  • Calibrated Reflectance Panel (CRP)
  • Cables and Mounting Screws
  • Hard Carrying Case
  • Quick Start Guide
