RedEdge-MX and RedEdge-MX blue Sensors
Mounting Plate with Quick Connector
DLS 2 and CRP
Hard-Sided Carrying Case
Wire Harnesses
Mounting screws
Lens cover for both sensors
This product is EOL. Please see the following alternative product:

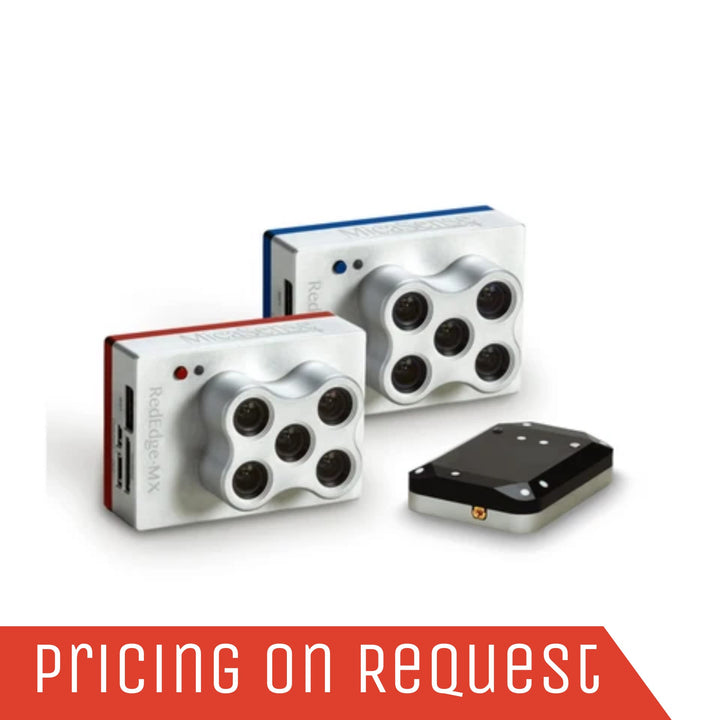

MicaSense RedEdge-MX Dual Camera Imaging System
2 Cameras. 10 Bands. Unlimited Indices.
Choose Your Dual Camera Kit
Dual Camera Kit
Complete Dual Camera Kit Includes:
Dual Camera Kit
RedEdge-MX Upgrade Kit Includes:
RedEdge-MX blue Sensor
Mounting Plate with Quick Connector
Hard-Sided Carrying Case
Wire Harnesses
Mounting screws
Lens cover
Dual Camera Kit
RedEdge-M Upgrade Kit Includes:
RedEdge-MX blue Sensor
DLS 2 and CRP
Mounting Plate with Quick Connector
Hard-Sided Carrying Case
Wire Harnesses
Mounting screws
Lens cover
Double The Spectral Resolution.
Half the Hassle.
Integrating two five-band cameras, the RedEdge-MX and the new RedEdge-MX blue, this solution enables the most advanced remote sensing and vegetation research applications.
Introducing
The New RedEdge-MX Blue Sensor
The performance you rely on from RedEdge-MX with a new coastal blue band, a new green band, and three new bands in the red to red-edge region of the spectrum.
Combined with the bands in RedEdge-MX, the 10 bands in the Dual Camera System enable direct comparison between satellite and drone data.
Already have a RedEdge-M or RedEdge-MX? Buy the new RedEdge-MX blue kit and get double the spectral resolution.
Direct Data Comparison Between Satellite and Drone Imagery
Need More Information?
FEATURES
- Synchronized capture of all 10 bands for pixel aligned imagery
- Standard 12 bit TIFF file outputs with embedded metadata for full access to raw data
- Combined Downwelling Light Sensor and GPS for streamlined integration, accurate ambient light calibration. Only one DLS required.
- Radiometrically calibrated spectral imagers for precise, repeatable measurements
- Global shutters on all 10 lenses for distortion-free results on every platform
- Comes standard with fixed bracket and quick-mount connector for easy integration
BENEFITS
- Compare imagery directly with Landsat and Sentinel satellite data
- Data is easily processed using Pix4D, Agisoft, and other MicaSense data partners
- Double the bands for double the analytical capabilities
- Monitor shallow water environments with the new coastal blue aerosol band
- Perform detailed analysis on chlorophyll efficiency with new red, green, and two new red edge bands strategically located on the red edge slope
RedEdge-MX Dual Camera Specifications
| Weight | 508.8 g |
| Dimensions | 8.7cm x 12.3cm x 7.6cm (3.4in x 4.8in x 3.0in) |
| External Power | 4.2 V DC - 15.8 V DC |
| Power Input | 8.0/16.0W (nominal, peak) |
| Spectral Bands | Coastal blue 444(28)*, blue 475(32), green 531(14)*, green 560(27), red 650(16)*, red 668(14), red edge 705(10)*, red edge 717(12), red edge 740(18)*, NIR 842(57) |
| RGB Color Output | 3.6 MP (global shutter, aligned with all bands) |
| Sensor Resolution | 1280 x 960 (1.2 MP per EO band) |
| Ground Sample Distance (GSD): | 8 cm per pixel (per band) at 120 m (~400 ft) AGL |
| Capture Rate | 1 capture per second (all bands), 12-bit RAW |
| Interfaces | Serial, 10/100/1000 ethernet, removable Wi-Fi, external trigger, GPS, SDHC |
| Field Of View | 47.2° HFOV |
| Heat | 0-40C ambient (no airflow); 0-50C ambient with |
| Triggering Options | Timer mode, overlap mode, external trigger mode (PWM, GPIO, serial, and Ethernet options), manual capture mode |
Download RedEdge-MX Dual Sensor Camera Data Sheet, White Paper and Integrations Guide
Works With What You Have
(Drones, processing, flight planning)
FLY
Flying with two cameras is as easy as flying with one. This solution is compatible with a wide range of aircraft, from large fixed wings to small multirotors, and comes standard with an integration kit for DJI drones.
PROCESS
Because the two cameras are both versions of RedEdge-MX, flight planning and data processing can be done with industry-standard tools like Pix4D and Agisoft.
ANALYZE
Double the bands mean double the analytical capabilities. This solution captures synchronized, pixel-aligned imagery which allows the bands from both cameras to be used interchangeably for the creation of more indices.
