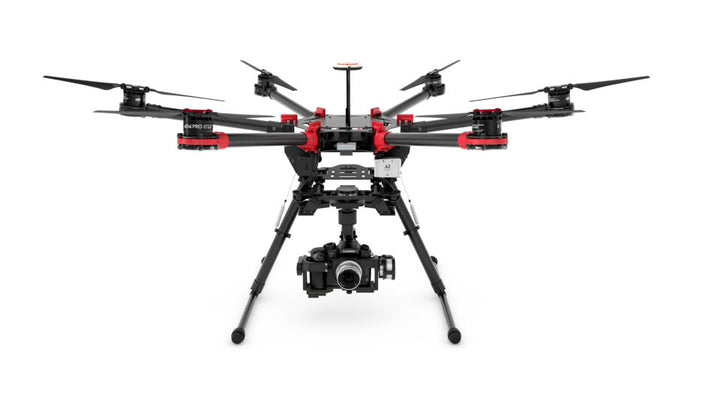

Spreading wings 900
Highly portable, powerful aerial system for the demanding filmmaker.
LIGHTWEIGHT, STRONG AND STABLEThe S900’s arms and landing gear are made of sturdy carbon fiber, greatly reducing weight while increasing stability and strength. This enables a long flight time without sacrificing performance.
HIGHLY PORTABLE, EASY TO CARRYWith arms that fold in to save space, the S900 is built to be taken wherever you need to go. Then when you want to fly, it can be ready to go in just a few minutes. Never before has a professional hexacoptor been so portable and easy to transport.
REMOVABLE UPPER CENTER BOARDThe upper center board can be removed, allowing easy access to install your flight controller and IMU, and giving you a convenient way to setup the power distribution system. Even installation of your main controller, iOSD, Light bridge, or any other accessories is faster and easier than ever before.This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.
NEW POWER DISTRIBUTION SYSTEMA redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.
SPARK PROOF PLUGPrevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.
WIDE RANGE OF SHOOTING ANGLESRetractable landing gear and a special low gimbal mounting bracket gives you an extremely wide range of possible shooting angles and camera motions.
COMPATIBLE WITH ZEN MUSE GIMBALSDJI’s Zen muse camera gimbals are known for their stability, providing smooth footage capture in even the most difficult of conditions. The S900 fully supports the Zen muse Z15, GH3, GH4, and BMPCC gimbals.
REDUCED VIBRATIONS, CLEARER FOOTAGEThe S900’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.
GREATER POWERA 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S900 a maximum thrust of 2.5Kg. Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.
INNOVATIVE ARM DESIGN | Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.
Specifications
FRAME |
900mm |
358mm |
316g |
272mm |
1185g |
460mm(Length)×450mm(Width)×360mm(Height) |
ESC |
40A |
6S LiPo |
30Hz ~ 450Hz |
8KHz |
35g |
FLIGHT PARAMETERS |
4.7Kg ~ 8.2Kg |
3.3Kg |
LiPo (6S、10000mAh~15000mAh、15C(Min)) |
3000W |
1000W (@6.8Kg Takeoff Weight) |
18min (@12000mAh& 6.8Kg Takeoff Weight) |
-10 °C ~ +40 °C |
MOTOR |
41×14mm |
400rpm/V |
500W |
158g |
FOLDABLE PROPELLER (1552/1552R) |
High strength performance engineered plastics |
15×5.2inch |
13g |
GAIN VALUE SETTINGS |
Basic: Roll 110%, Pitch 110%, Yaw 120% Attitude: Roll 220%, Pitch 220%, Vertical 120% |
Basic: Roll 160%, Pitch 160%, Yaw 160% Attitude: Roll 190%, Pitch 190%, Vertical 100% |
