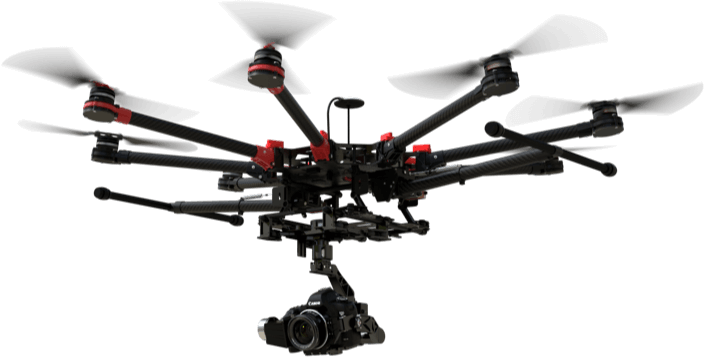

Spreading Wings S1000+

  • Sale
  • Regular price R 0.00
Tax included.

Please CONTACT US if you are interested in this product.



YOUR DSLR IN FLIGHT

LARGE CARRYING CAPACITY, STRONG AND STABLE

Free yourself from weight limits and fly with heavy DSLR cameras such as the 5D Mark III with the advanced eight-rotor propulsion system of the S1000+. The S1000+’s arms and landing gear are made of sturdy carbon fiber, giving remarkable stability and strength. You’re flying in a variety of flight conditions with confidence, knowing your gear is safe.



HIGHLY PORTABLE, WITH FOLD-ABLE ARMS

With arms that fold in to save space, the S1000+ is built to be taken wherever you need to go. Then when you want to fly, you are ready to start shooting in just a few minutes.

REMOVABLE UPPER CENTER BOARD

The upper center board can be removed, giving you access to the IMU. Additionally, there are eight positions reserved for your extra equipment. So installation of your main controller, iOSD, Light bridge, or any other accessories is faster and easier than ever before. This new center board structure is perfectly compatible with the DJI WKM and A2 flight controllers.


NEW POWER DISTRIBUTION SYSTEM

A redesigned, rebuilt power distribution system improves safety and reliability. Gold-plated metal bearings with a unique screw design secure the power cords, ensuring cables will not come loose during flight and allowing easy setup.

SPARK PROOF PLUG

Prevent short circuits and easily plug in your power supply with the AS150 sparkproof plug.

PROFESSIONAL QUALITY

Weighing just 4.4kg, the S1000+ has a maximum takeoff weight of 11kg. This means you can easily carry most cameras and gimbals, including your 5D Mark III. Used with a 6S 15000mAh battery, it can fly for up to 15 minutes.*

WIDE RANGE OF SHOOTING ANGLES

Retractable landing gear and a low gimbal mounting bracket combine to enable a wide range of possible shooting angles and camera motions.

COMPATIBLE WITH ZENMUSE GIMBALS

Full compatibility with DJI’s entire line of Zenmuse Z15 camera gimbals, including the new Z15-5D III (HD), provides unmatched stability in flight.

REDUCED VIBRATIONS, CLEARER FOOTAGE

The S1000+’s gimbal bracket is separated from the main frame by specifically designed dampers. This significantly reduces high-frequency vibrations and makes your shots clearer and sharper.

GREATER POWER

A 40A electronic speed controller (ESC), our fastest available, is built in to each arm. The 4114 pro motors, high performance 1552 folding propellers, and V-type mixer design combine to give each arm of the S1000+ a maximum thrust of 2.5Kg.

Our latest motor adopts a single wire stator design, offering improved heat dissipation, better performance, and a tidier, more reliable system.


INNOVATIVE ARM DESIGN

Each arm is designed with an 8° inversion and a 3° inclination, making the aircraft more stable when rolling and pitching, yet more flexible when rotating.



FRAME
1045mm
386mm
325g
337mm
1520g
460mm(Length)×511mm(Width)×305mm(Height)
ESC
40A
6S LiPo
30Hz ~ 450Hz
8KHz
35g
FLIGHT PARAMETERS
6.0Kg ~ 11.0Kg
4.4Kg
LiPo (6S,10000mAh~20000mAh,15C(Min))
4000W
1500W (@9.5Kg Takeoff Weight)
15min (@15000mAh & 9.5Kg Takeoff Weight)
-10 °C ~ +40 °C
MOTOR
41×14mm
400rpm/V
500W
158g
FOLDABLE PROPELLER (1552/1552R)
High strength performance engineered plastics
15×5.2inch
13g
GAIN VALUE SETTINGS
Basic: Roll 120%, Pitch 120%, Yaw 120%Attitude: Roll 170%, Pitch 170%, Vertical 120%
Basic: Roll 130%, Pitch 130%, Yaw 120%Attitude: Roll 180%, Pitch 180%, Vertical 120%
