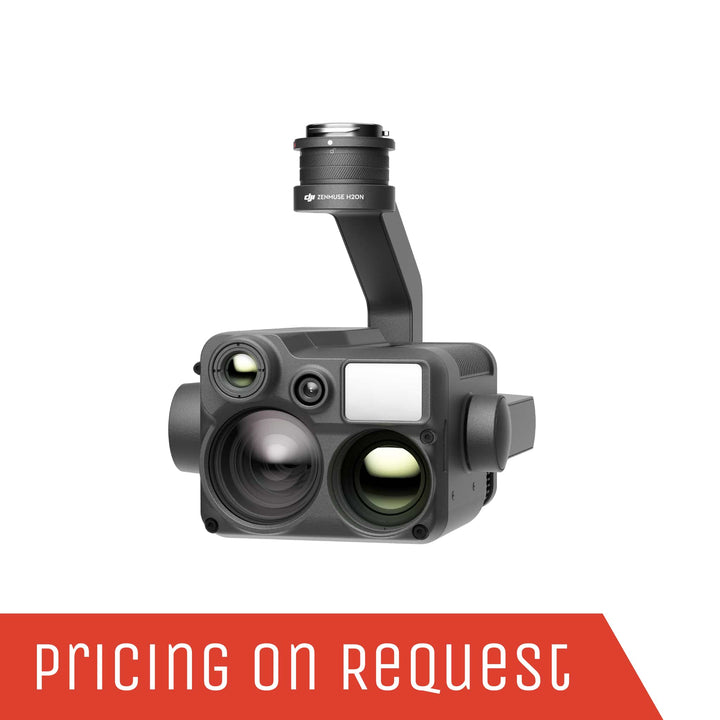

The H20N's ultra-low-illumination starlight-grade night vision camera can capture the scene clearly, even in darkness, setting a new standard for search and rescue operations or emergency situations requiring immediate recognition.
The H20N features starlight-grade night vision with low illumination to 0.0001 Lux, a 20x hybrid optical zoom, 640 x 512 resolution thermal imaging camera, 2x\8x optical zoom and a laser rangefinder with 1200m range.
Compatible with: DJI Matrice 300 RTK
Starlight Night Vision
Synchronized Split-screen Zoom
640×512 Dual Thermal Cameras
2×, 8× Optical Zoom
Intelligent Night Scene Enhancement
20× Hybrid Optical Zoom
20× Hybrid Optical Zoom
Laser Rangefinder
1200 m Max Range
-20°C to 50°C
Operating Temperature
Dual Thermal Cameras
Resolution: 640×512
2x Zoom (Equivalent Focal Length: 53 mm)
8x Zoom (Equivalent Focal Length: 196 mm)
Night Vision Zoom Camera
Starlight Sensor: 4MP
20× Optical Zoom, 128× Max Zoom
Low-Light Details
Night Vision Wide Camera
Starlight Sensor: 2MP
Stronger Low-Light Performance
Laser Rangefinder
Range: 3 m to 1200 m
Accuracy: ± (0.2 m + D×0.15%)2
The zoom and wide-angle cameras are equipped with starlight sensors that are tailor-made for low-light environments.
Two thermal cameras respectively provide 2× and 8× zoom, together enabling up to 32× zoom. Find hotspots and inspect in close detail after zoom-in.
H20N supports synchronized zoom between thermal and starlight night vision cameras. Users can scale both images at the same time. This doubles efficiency and makes it easier to compare details side by side.
Adjust the colors applied to the thermal data based on the mission requirements.
Visualize a specific band of temperatures to highlight your targets.
Receive instant notifications in DJI Pilot when object temperatures exceed your preset alert values.
Adjust gain modes to change the temperature range captured: High Gain Mode covers a smaller temperature range but is more sensitive to temperature differences; Low Gain Mode covers a wider temperature range.
Images captured by the Zenmuse H20N are in R-JPEG format with embedded temperature information. By importing these images into the DJI Thermal Analysis Tool, you can measure temperature, and adjust parameters such as Emissivity, and Reflected Temp.
