The DJI BS100 Intelligent Battery Station is the dedicated charging and management hub for the DJI Matrice 400 platform. Built into a rugged rolling case, it keeps your TB100 flight batteries, TB100C tethered batteries and WB37 batteries ready for back-to-back missions across mining, security, utilities, energy and infrastructure operations.

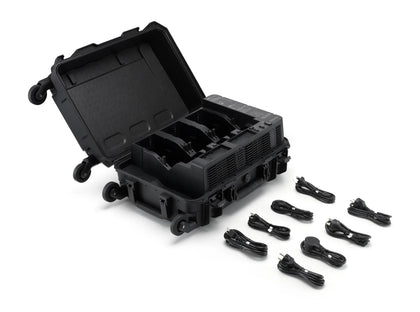

Multi-battery charging
Charges across three TB100 channels and two WB37 channels, plus USB-C output, supporting the TB100 Intelligent Flight Battery, TB100C Tethered Battery and WB37 Battery.
Fast turnaround
Fast Charging Mode charges a TB100 or TB100C from 0% to 100% in approximately 45 minutes at 220 V, measured at 25 C. Silent Mode is available when quiet operation matters.

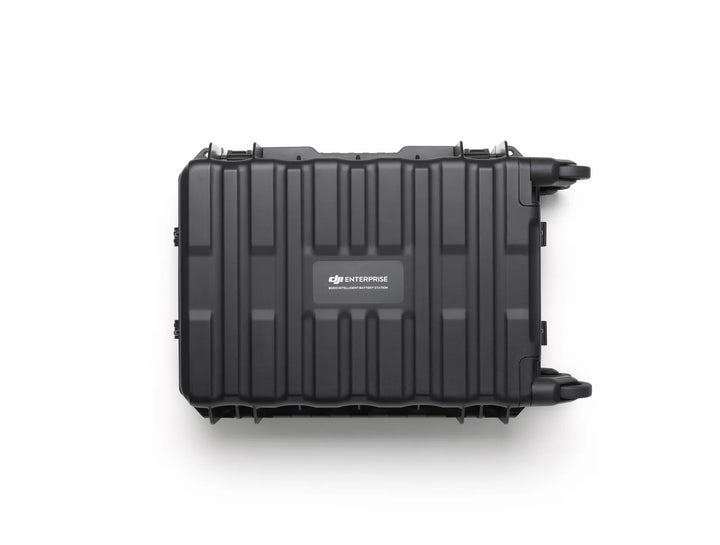

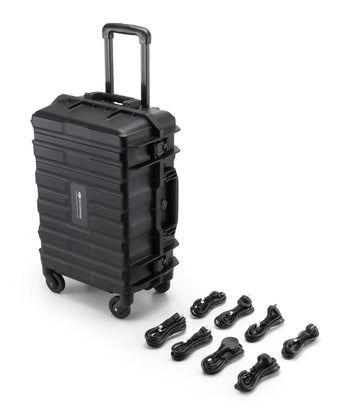

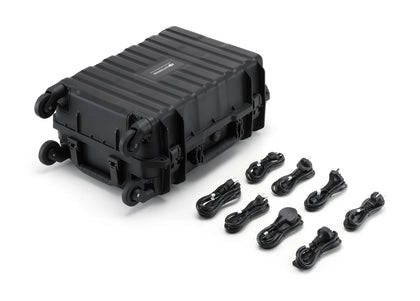

Field-ready case
An 11.8 kg rolling case with telescopic handle and a wide operating range of -20 to 40 C, built for deployment and transport between sites.
Purpose-built for the Matrice 400
The BS100 is the battery station defined in the official DJI Matrice 400 specifications. It manages the full Matrice 400 power ecosystem so crews can rotate charged packs quickly and keep the aircraft flying.
Supported batteries: TB100 Intelligent Flight Battery, TB100C Tethered Battery and WB37 Battery. Battery heating is supported at the battery station, helping prepare packs for cold-weather operations.
Charging modes that suit the mission
Choose Ready-to-Fly Mode for a 90% charge when you need packs back in the air fast, or Standard Mode for a full 100% charge. Fast Charging Mode and Silent Mode are both supported.
Charging time for a TB100 or TB100C from 0% to 100% is approximately 45 minutes in Fast Charging Mode at 220 V and 110 minutes in Silent Mode; at 110 V it is approximately 70 minutes in Fast Charging Mode and 110 minutes in Silent Mode. All charging times are measured in a test environment at 25 C.
Specifications
| Model | BS100 |
|---|---|
| Net Weight | 11.8 kg |
| Dimensions | 605 x 410 x 250 mm (L x W x H) |
| Supported Batteries | TB100 Intelligent Flight Battery, TB100C Tethered Battery, WB37 Battery |
| Operating Temperature | -20 to 40 C (-4 to 104 F) |
| Input | 100-240 V (AC), 50-60 Hz, 10 A |
| Output (TB100 Battery Interface) | 100-110 V: approx. 1185 W; 110-180 V: approx. 1474 W; 180-240 V: approx. 2184 W |
| Output (WB37 Battery Interface) | 100-240 V: approx. 52 W |
| Output (USB-C) | 5.0 V 3.0 A, 9.0 V 3.0 A, 12.0 V 3.0 A, 15.0 V 3.0 A, 20.0 V 3.25 A |
| Number of Charging Channels | Three TB100 and two WB37 batteries |
| Charging Mode | Ready-to-Fly Mode 90%; Standard Mode 100%; supports Fast Charging Mode and Silent Mode |
| Charging Time (TB100/TB100C, 0% to 100%) | 220 V: 45 minutes (Fast Charging Mode), 110 minutes (Silent Mode); 110 V: 70 minutes (Fast Charging Mode), 110 minutes (Silent Mode). Charging time is measured in a test environment with a temperature of 25 C (77 F). |
| Battery Heating (Battery Station) | Supported |
Compatibility and FAQ
Which batteries does the BS100 charge?
The BS100 charges the TB100 Intelligent Flight Battery, the TB100C Tethered Battery and the WB37 Battery. It provides three TB100 charging channels and two WB37 charging channels.
How fast does it charge a TB100?
A TB100 or TB100C charges from 0% to 100% in approximately 45 minutes in Fast Charging Mode at 220 V. In Silent Mode this is approximately 110 minutes. At 110 V, Fast Charging Mode is approximately 70 minutes and Silent Mode approximately 110 minutes. All times are measured in a test environment at 25 C (77 F).
Is the BS100 the same as the BS65, BS60 or BS30?
No. The BS100 is a distinct, newer station designed for the DJI Matrice 400 power ecosystem and the TB100 battery family. It is different from the earlier BS65, BS60 and BS30 stations and from the TB100 battery itself.
Can it operate in cold conditions?
The BS100 has an operating temperature range of -20 to 40 C (-4 to 104 F), and battery heating is supported at the battery station to help prepare packs in cold environments.
