The DJI Manifold 3 Accessory Kit (Matrice 4D Series) is the dedicated hardware set that connects and secures the DJI Manifold 3 onboard computer to the DJI Matrice 4D Series aircraft. It ships with the correct connector, coaxial cable, mounting hardware and tools for a clean, vibration resistant install. The Manifold 3 computer is sold separately.
Purpose built connection
Connects and secures the DJI Manifold 3 onboard computer to the DJI Matrice 4D Series aircraft using the matched connector and coaxial cable.
Vibration resistant install
Includes connector screws and coaxial cable screws, with a hex key to tighten the connector and help prevent screws loosening from flight vibrations.
Tools in the box
A Phillips screwdriver and a hex key are supplied, so no separate tools are needed for a standard installation.
Designed for the Matrice 4D Series
This kit is the Matrice 4D / 4TD Series variant of the Manifold 3 mounting kit. It is not interchangeable with the Matrice 4 Series kit or the Matrice 400 kit, so you get the connector and cable matched to your aircraft.
The supplied coaxial cable screws should be fully tightened to prevent disconnection or reduced water resistance due to flight vibrations, per the official installation tips.
Everything for the install

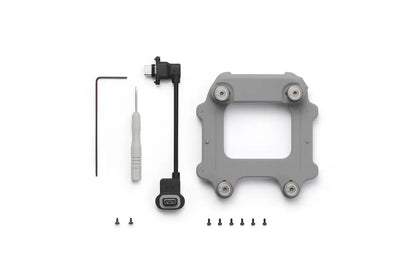

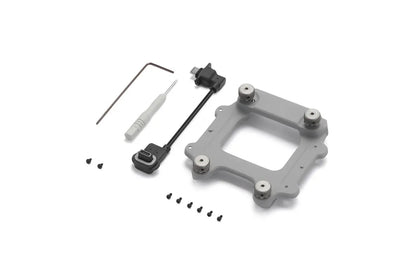

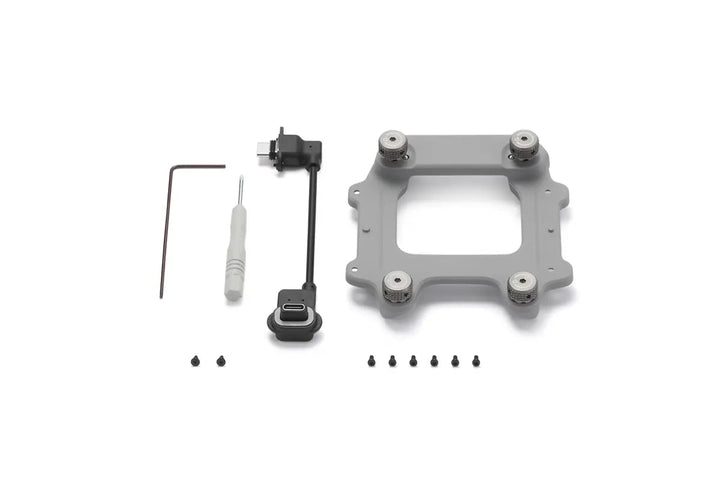

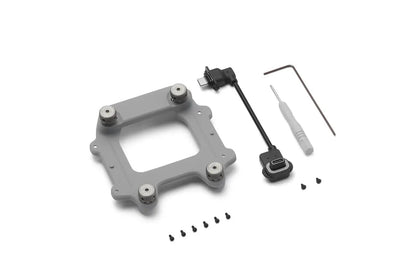

Each kit contains the connector, coaxial cable and all required screws for mounting the Manifold 3 to a Matrice 4D Series aircraft. The hex key can also be used to press the Manifold 3 reset button to restore factory settings.
- 1x Connector (Matrice 4D)
- 1x Coaxial Cable (Matrice 4D)
- 6x Connector Screw (Manifold 3)
- 2x Coaxial Cable Screw (Manifold 3)
- 1x Phillips Screwdriver
- 1x Hex Key
Specifications
| Function | Connects and secures the DJI Manifold 3 onboard computer to the DJI Matrice 4D Series aircraft |
|---|---|
| Weight | 28 g (measured for the connector, cable and required screws only; excludes the screwdriver and hex key) |
| Compatibility | DJI Manifold 3; DJI Matrice 4D Series. Not the Matrice 4 Series (4E/4T) and not the Matrice 400, which use separate kits |
| In the box | 1x Connector (Matrice 4D), 1x Coaxial Cable (Matrice 4D), 6x Connector Screw (Manifold 3), 2x Coaxial Cable Screw (Manifold 3), 1x Phillips Screwdriver, 1x Hex Key |
Compatibility and FAQ
Does this kit fit my aircraft?
This kit is specific to the DJI Matrice 4D Series. It is not compatible with the Matrice 4 Series (4E/4T), which uses a separate kit, or the Matrice 400, which uses a separate kit. Confirm your exact airframe before ordering.
Is the Manifold 3 computer included?
No. The DJI Manifold 3 onboard computer is sold separately. This kit provides only the connector, coaxial cable, screws and tools needed to mount and connect it to a Matrice 4D Series aircraft.
What tools do I need?
None beyond the kit. A Phillips screwdriver and a hex key are supplied. Ensure the coaxial cable screws are fully tightened, and use the hex key to tighten the connector screws to help prevent loosening from flight vibrations.
Can the hex key be used for anything else?
Yes. The supplied hex key can also be used to press the Manifold 3 reset button to restore factory settings.
