YellowScan Voyager

  • Sale
  • Regular price R 0.00
Tax included.

Please CONTACT US if you are interested in this product.

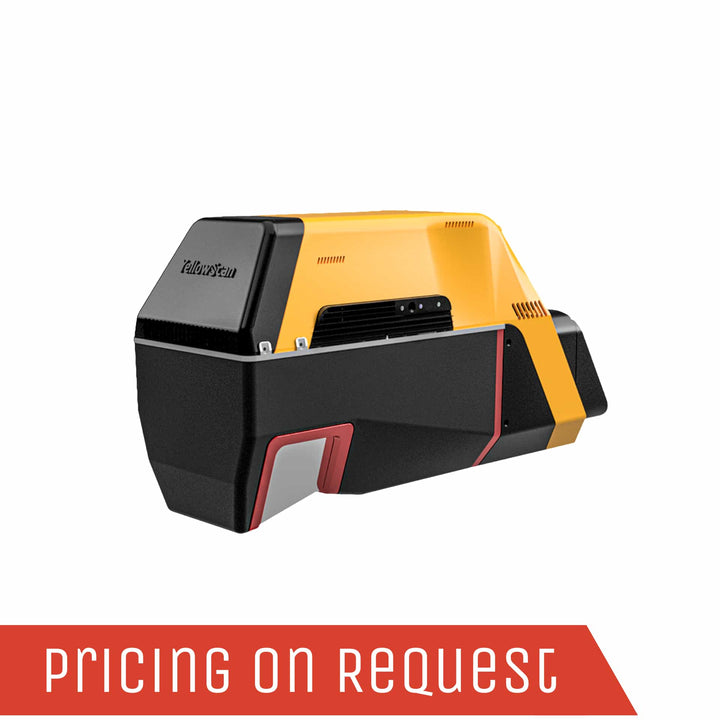

YellowScan Voyager UAV Lidar Solution

Where precision meets reality.

The Voyager is YellowScan's highest range LiDAR solution, with a range of up to 760m. Its laser scanner’s wide field of view of 100° and its extremely fast data acquisition rate of up to 1.8 MHz, makes this solution the best option for projects requiring the highest point density.

AGL Altitude

Up to 440m

System Precision

0.5cm

System Accuracy

1cm

Battery Weight excl.

3.5kg


Key differentiators

  • 1.5 million pts/second
  • Up to 15 echoes
  • Multi-platform

Technologies inside

  • RIEGL VUX-120 laser scanner Scanner
  • Applanix AP+ 50 AIR
  • or Applanix AP+ 30 AIR

Integrations

  • Manned aircraft
  • Multirotor UAV
  • Fixed-wing UAV

Be more productive in the field

This system can be mounted on light-crewed aircraft, helicopters, or UAV platforms and is our highest range LiDAR solution with a flying height of up to 440m (1440 ft.).

The YellowScan Voyager is a powerful solution for both manned and unmanned aircrafts.

The laser scanner’s specs can be personalized to fit your different project and platform needs.

With its laser scanner’s wide field of view, the entirety of the points are oriented towards the ground, meaning no loss of points.

The Voyager captures 2 million useable points per second, a feature that would be impossible for a 360˚ scanner.

With the 100°scanner, the entirety of the points are oriented towards the ground, meaning no loss of points.

The YellowScan Voyager’s detection and processing of up to 15 target echoes per laser pulse allows for unparalleled vegetation penetration.

Its extremely fast data acquisition rate of up to 1800 kHz, makes this solution the best option for projects requiring the highest point density.

Combined with YellowScan’s full suite of software solutions to easily extract, process, merge, and colorize your pointcloud data.

We offer our users a highly accurate set of tools to also meet the needs of a wide variety of industries.

YellowScan Voyager

Vertical Mapping-Ready

Designed for people who require less than 1cm precision and want to efficiently cover complex and vertical targets with ease..

Collect LiDAR and RGB data

The Voyager is compatible with an optional built-in 20 or 60 MP camera module.

YellowScan Voyager

Specifications

General Characteristics

Precision (1)(3)

0.5cm

Accuracy (2)(3)

1cm

Laser scanner

RIEGL VUX-120

Laser Pulse Repetition Rate

Up to 1800 kHz

Echoes per shot

Up to 15

Wavelength

Near infrared

Range

Up to 760 m

Shots per second

Up to 240k

Scanner field of view

100°

GNSS-Inertial solution

Applanix AP+ 30 AIR or AP+ 50 AIR

Size

L 36.9 x W 11.7 x H 18.3 cm

Weight batt. excl.

13.5kg (7.7lbs)

Autonomy

1 hours typ.

Power consumption

55W

Operating temperature

-10 to +40°C

(1) Precision, also called reproducibility or repeatability, is the degree to which further measurements show the same result.

(2) Accuracy is the degree of conformity of a measured quantity to its actual (true) value.

(3) One sigma @ 150 m range under RIEGL test conditions.

Voyager @1800 kHz PRF

  • Platform: Multirotor UAV
  • AGL altitude: 80 m AGL
  • Speed: 5 m/s

Add-ons

Camera module

High Resolution Camera Module – more information available soon…

Stand-alone mounting bracket

Designed for DJI M600, Acecore Noa or Hexadrone Tundra (more to come).

Add Strip Adjustment, Terrain Colorization modules to your wrokflow.
