Drones in Mining: Drill and Blast
DJI Geospatial Mining Solutions | Part 2 of 6
This is the second article in GoUAV’s six-part DJI Geospatial Mining Solutions series, examining how mining drones, aerial surveying and geospatial data can support the full mining lifecycle. The series covers six key applications: exploration and construction, drill and blast, load and transport, mining operations management, safety monitoring, and reclamation.
In Part 2, we focus on how drone mapping, precise positioning, terrain modelling and post-blast assessment can support drill-and-blast operations. We explore how DJI Enterprise drone solutions can assist with terrain-data collection, blast-hole layout, safety monitoring, three-dimensional modelling and fragmentation assessment.
We also consider how these technologies can support mining operations across South Africa and Southern Africa by creating a more connected workflow from pre-blast surveying through to post-blast evaluation.
Mining Industry Overview
Mining teams are under increasing pressure to improve productivity, manage operating costs, strengthen safety, and oversee large or remote sites more effectively. Accurate and timely site data has therefore become essential for better planning and decision-making.
Why Mining Operations Are Changing
-
Global demand for minerals continues to place pressure on mining operations.
-
Labour constraints and rising operating costs can affect productivity.
-
Large and remote mining areas can be difficult and time-consuming to survey manually.
-
Exploration and operational data is often collected through disconnected systems.
-
Drone-based workflows can capture detailed site information while reducing unnecessary personnel exposure to difficult terrain.
Drone Solutions Across the Mining Lifecycle
Drone surveying, aerial mapping, thermal imaging, LiDAR and automated data capture can support mining teams throughout the lifecycle of a site. Applications extend from early exploration and construction planning to drill and blast, load and transport, operational management, safety monitoring and eventual reclamation.
Exploration and Construction
Drill and Blast
Load and Transport
Operation Management
Safety Monitoring
Reclamation
Exploration and Construction
Load and Transport
Safety Monitoring
Drill and Blast
Operation Management
Reclamation
Drone Mapping and Data for Smarter Drill-and-Blast Operations
Drill and blast is a critical stage of the mining lifecycle. The quality of terrain information, blast-hole positioning, site monitoring and post-blast assessment can influence fragmentation, loading efficiency, hauling productivity, equipment utilisation and operating costs.
Open-pit mining operations develop blast plans according to site conditions, bench geometry, geological information and the physical properties of the material being mined. Once drilling and blasting have taken place, the fragmented material must be assessed before loading and hauling operations can proceed efficiently.
Traditional drill-and-blast methods remain essential, but they may rely heavily on manual surveying, isolated field measurements and visual inspections. These methods can be slow across large or difficult-to-access areas and may not provide a complete digital view of the blast site.
DJI Enterprise drone technology allows mining teams to collect detailed aerial information before and after blasting, creating a more connected workflow from initial terrain capture through to post-blast evaluation.
The Challenge with Traditional Drill and Blast
Mining teams commonly encounter four interconnected challenges when planning, monitoring and evaluating drill-and-blast operations.

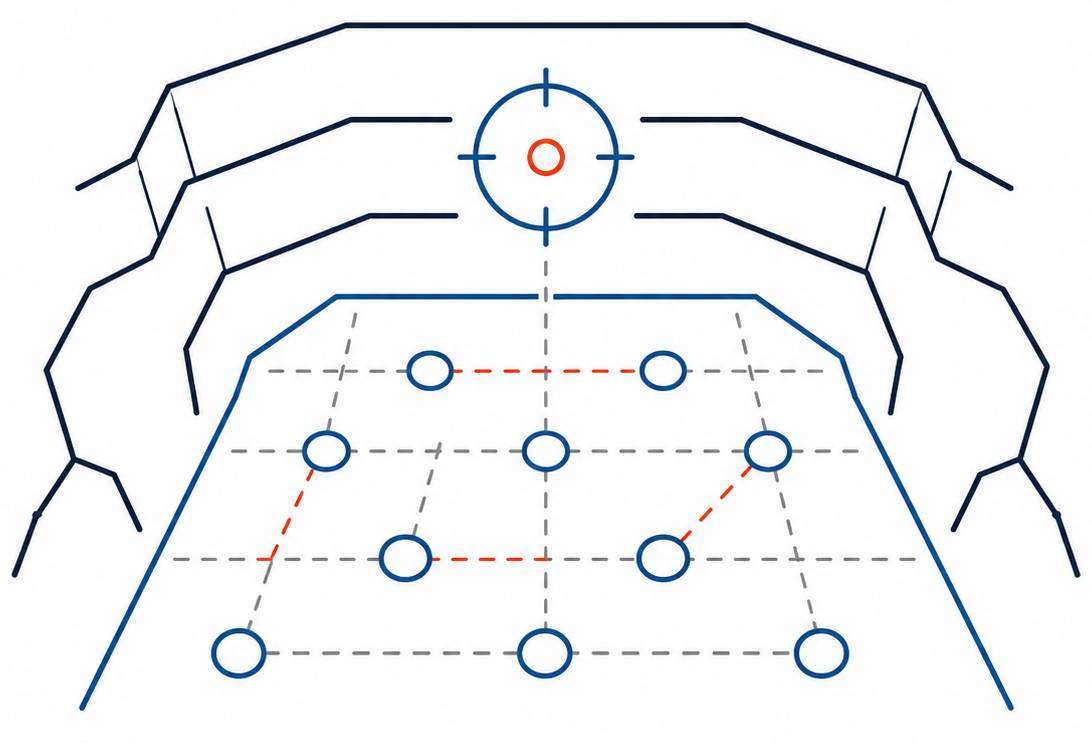

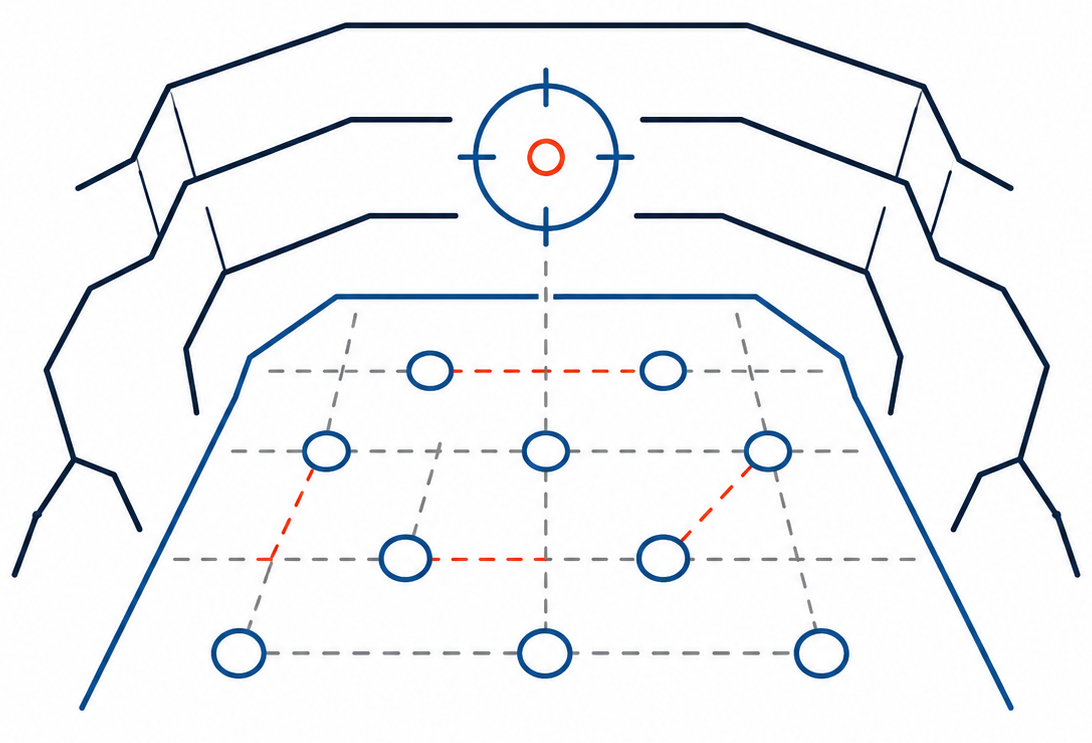

Inaccurate Drilling
Incomplete terrain information or inaccurate blast-hole positioning can affect the intended drilling pattern. This may result in uneven fragmentation, wasted ore, rework and higher operating costs.

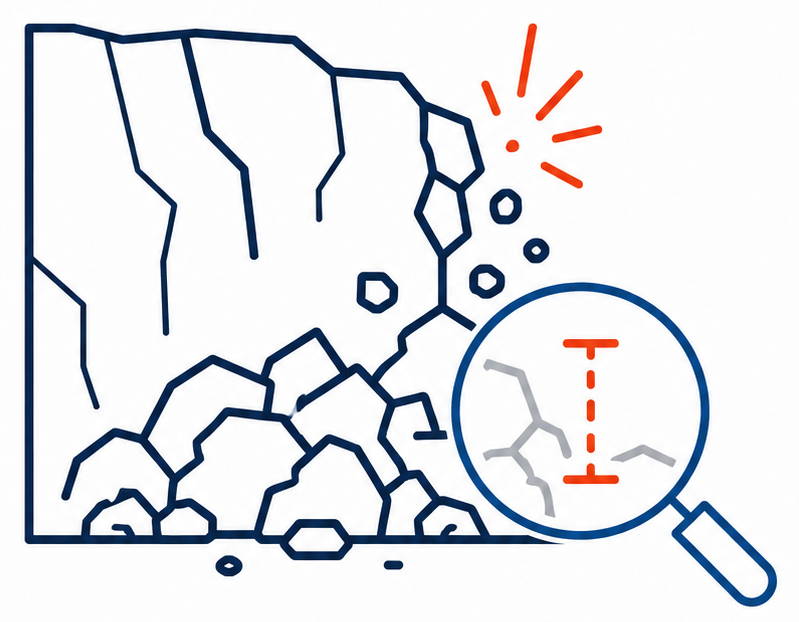

Difficult Blast Evaluation
Blast performance can be difficult to evaluate consistently when teams rely on limited visual inspection or isolated physical samples.

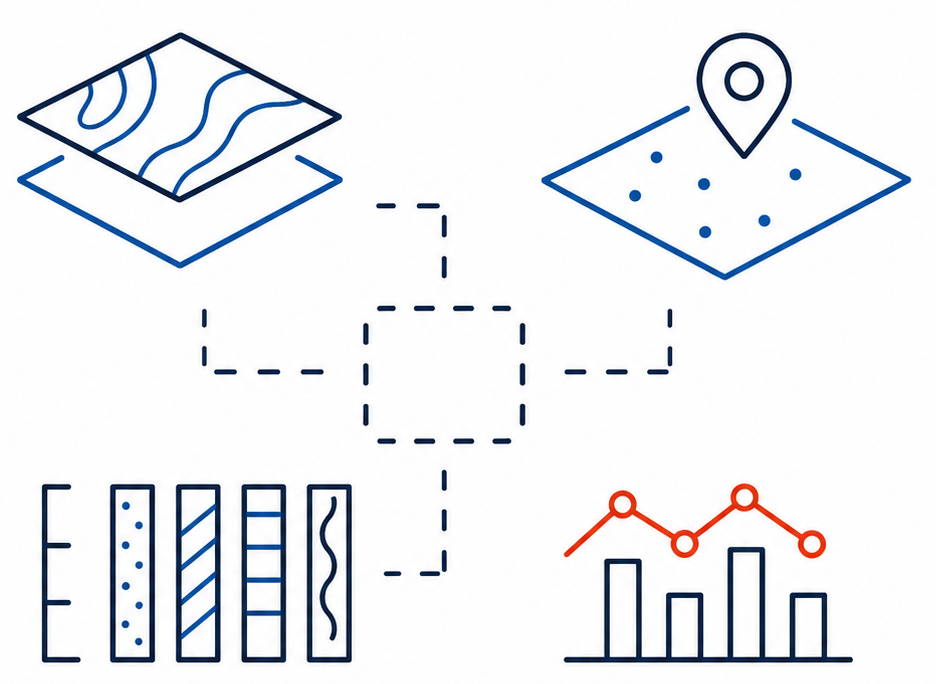

Incomplete Information
Disconnected survey, geological, drilling and blast data can make it difficult to compare the approved design with the conditions encountered in the field.

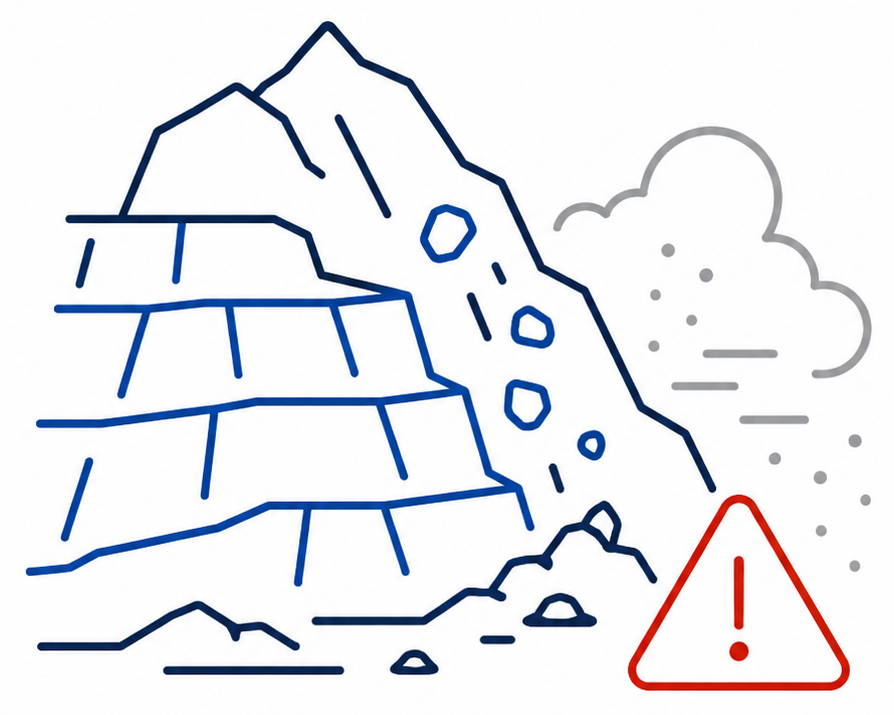

Harsh Environments
Active mining areas may contain unstable terrain, loose material, dust, heavy equipment and restricted access. These conditions can increase risk and make manual surveying or inspection more difficult.
Drone-based data collection helps teams examine blast areas from a safer operating position while creating a more complete digital record of site conditions.
A Connected Drone Workflow for Drill and Blast
DJI Enterprise drone solutions can connect several stages of the drill-and-blast workflow.
A typical workflow may include:
- Pre-blast terrain surveying
- Blast-area mapping
- Ground-control-point collection
- Blast-hole layout planning
- Drilling-progress monitoring
- Safety monitoring around the blast area
- Three-dimensional terrain reconstruction
- Comparison of planned and actual conditions
- Post-blast aerial data capture
- Fragmentation assessment
- Historical documentation for future planning
By connecting these stages, mining teams can build a clearer record of what was planned, what occurred in the field and where future drill-and-blast processes may be improved.

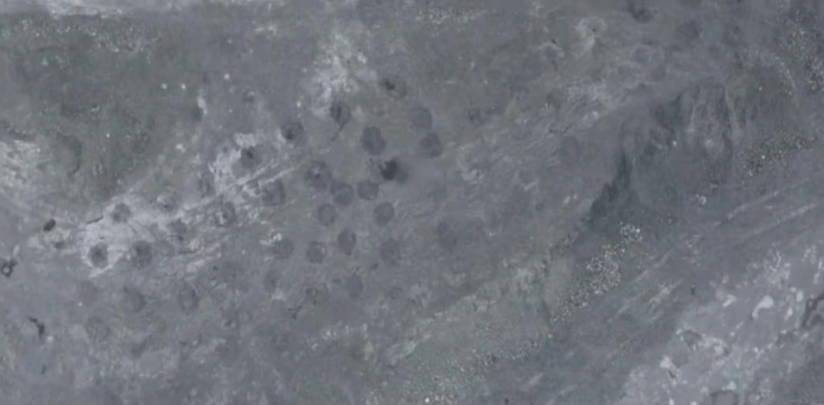

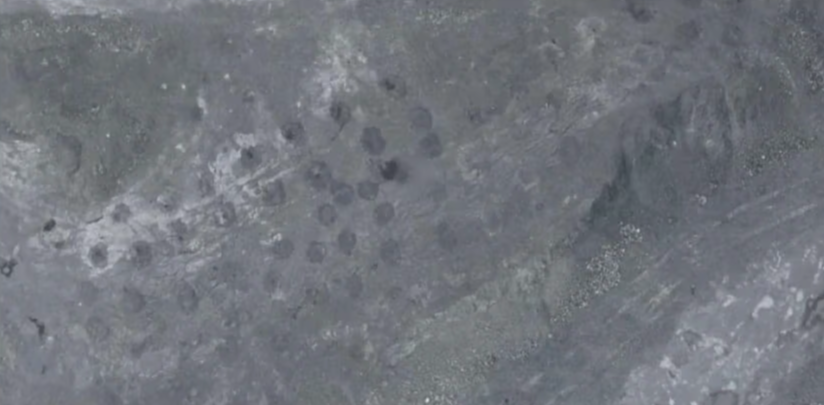

Pre-Blast Terrain Mapping with the DJI Matrice 4E
Accurate terrain data provides the spatial foundation for drill-and-blast planning.
The DJI Matrice 4E can capture detailed aerial imagery across a proposed blast area, helping mining teams document benches, slopes, access routes, boundaries and existing surface conditions before drilling begins.
The collected data can support:
- High-resolution aerial mapping
- Terrain and elevation modelling
- Blast-area measurement
- Bench and slope assessment
- Ore and waste boundary mapping
- Blast-hole pattern planning
- Pre-blast site documentation
- Repeatable progress monitoring
Drone mapping allows teams to cover a broader area efficiently and provides a consistent aerial record that can be shared between surveyors, mine planners, drilling teams and blasting professionals.
Drone-derived terrain information provides a detailed spatial foundation for pre-blast planning and site assessment.
Blast-Area Monitoring with the DJI Matrice 4T
Drilling and blasting require strict control of personnel, vehicles, equipment and surrounding activity.
The DJI Matrice 4T can support aerial monitoring around the blast area by providing visual and thermal information from a safer operating position.
This can help mining teams observe:
- Access roads
- Exclusion zones
- Equipment positions
- Personnel movement
- Surrounding terrain
- Potential heat sources
- Areas that may require further inspection
Drone monitoring does not replace the mine’s safety procedures or authorised ground inspections. It provides an additional layer of visibility that can support situational awareness before and after blasting activities.
Precise Positioning with the DJI D-RTK 3
Accurate positioning is essential when transferring a digital blast plan into physical locations on the ground.
The DJI D-RTK 3 Multifunctional Station can support high-precision positioning and ground-control-point collection, helping improve the alignment of aerial survey information.
Within a drill-and-blast workflow, this can support:
- Ground-control-point placement
- Survey-data alignment
- Blast-area boundary verification
- Blast-hole positioning
- Repeat survey consistency
- Comparison between planned and completed drilling
- More accurate site documentation
The final blast-hole layout and blasting parameters must always be determined and approved by appropriately qualified mining, surveying and blasting professionals.
From Aerial Data to a Three-Dimensional Site Model
Once the aerial survey has been completed, the captured information can be processed in DJI Terra.
DJI Terra can transform aerial survey data into detailed maps and three-dimensional representations of the blast area. These outputs allow mining teams to examine terrain, benches, slopes, access routes and site boundaries in greater spatial detail.
The resulting data can support:
- Pre-blast terrain assessment
- Blast-area measurement
- Blast-hole layout planning
- Drilling-progress verification
- Ore and waste boundary assessment
- Comparison of repeated surveys
- Post-blast terrain documentation
- Coordination between mining teams
By creating an accurate digital representation of the site, GoUAV helps mining teams establish a stronger spatial foundation for drill-and-blast planning.
Drone-derived terrain models can be used to support precise blast-hole layout and distinguish relevant mining boundaries.
Precise Blast-Hole Layout
Accurate blast-hole positioning supports more consistent drilling and improves the connection between the digital plan and the physical site.
Drone-derived terrain models and high-precision positioning information can help teams review the relationship between the proposed blast-hole pattern and the surrounding terrain.
This may support:
- Blast-hole location planning
- Hole-pattern alignment
- Boundary verification
- Drilling-progress reviews
- Identification of possible deviations
- Comparison between planned and completed work

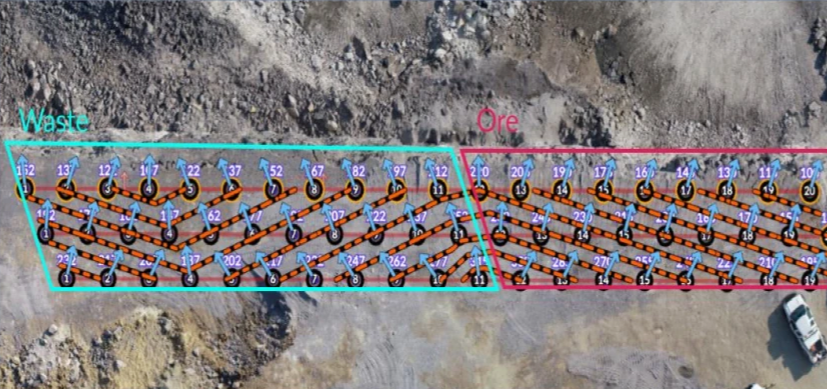

An aerial view of the proposed blast-hole layout can help teams compare drilling positions with mapped ore and waste boundaries.
Pre-Blast Design and Site Verification
Before drilling begins, mining teams need to understand how the proposed blast area relates to the actual terrain.
Drone-generated maps and models can help teams visualise:
- Bench geometry
- Slope changes
- Surface variations
- Access constraints
- Existing infrastructure
- Ore and waste boundaries
- The position of the proposed blast area
Repeat drone surveys can also help teams document drilling progress and compare the site with the approved plan.
This creates a digital record covering:
- Existing terrain conditions
- The proposed blast area
- Planned blast-hole positions
- Drilling and preparation progress
- Conditions immediately before blasting
- Post-blast terrain and fragmentation
Why Fragmentation Matters
The purpose of blasting is not simply to break rock. It is to produce fragmented material that supports efficient loading, hauling, crushing and downstream processing.
Material that is too coarse may:
- Slow excavation and loading
- Produce oversized rock
- Increase the need for secondary breaking
- Increase equipment wear
- Reduce hauling efficiency
Material that is excessively fine may:
- Increase explosive consumption
- Create unnecessary dust
- Affect material handling
- Increase the amount of fine material entering downstream processes
The preferred fragmentation profile depends on factors including:
- Rock type and hardness
- Geological structure
- Bench geometry
- Hole spacing and depth
- Explosive design
- Loading-equipment requirements
- Hauling conditions
- Downstream processing requirements

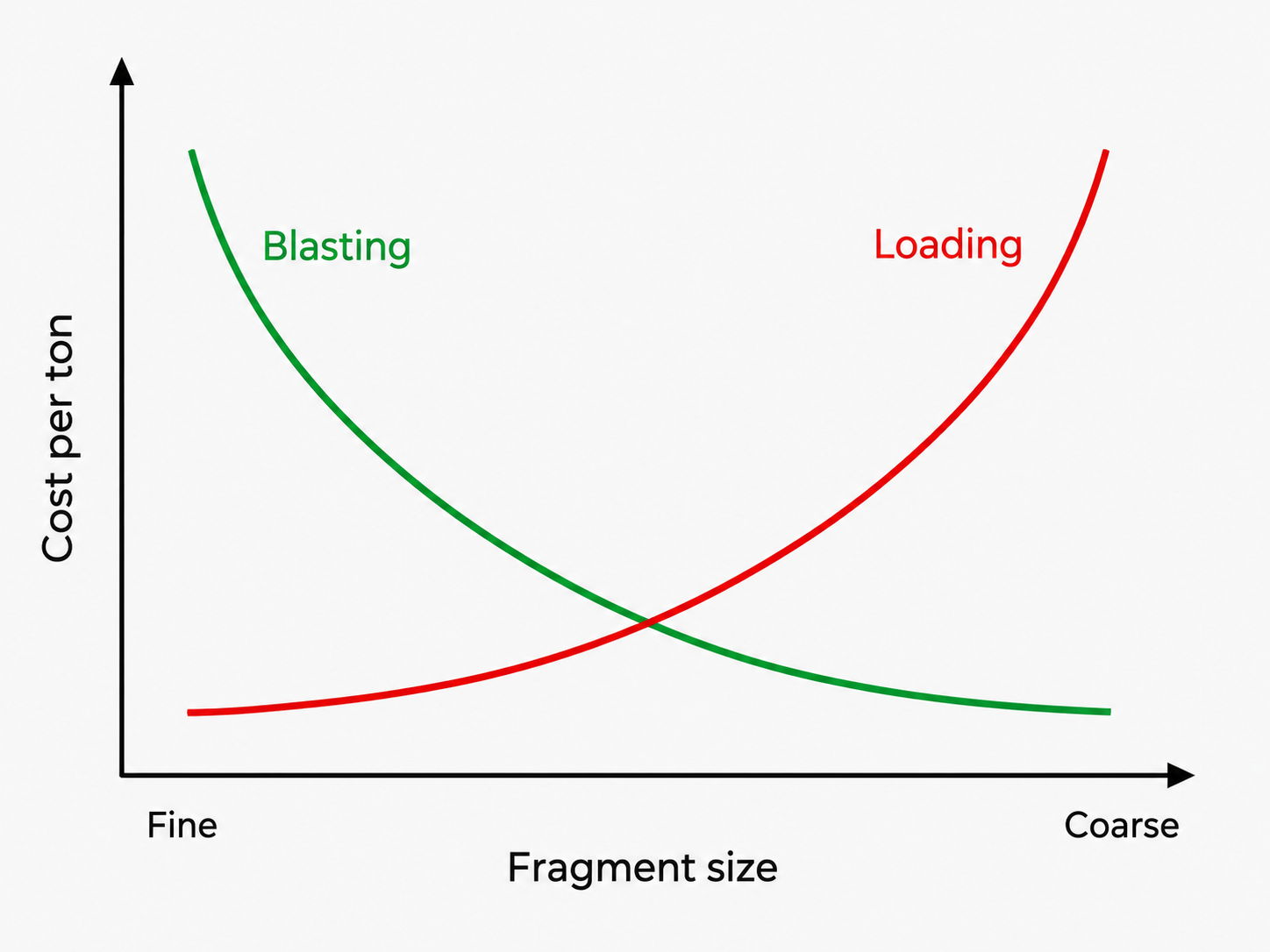

A well-planned blast therefore requires a balance between the cost of blasting and the operational cost of handling the resulting material.
Effective blast planning aims to balance blasting requirements with the cost and efficiency of loading fragmented material.

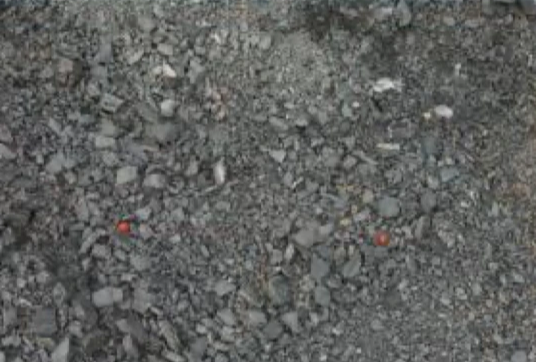

Post-Blast Fragmentation Assessment
Once the blast area has been declared safe, drones can capture high-resolution aerial imagery of the fragmented material.
This provides broader site coverage than isolated ground photographs and creates a consistent visual record of the blast result.
Post-blast aerial imagery can help teams:
- Examine fragmentation across the blast area
- Identify areas containing oversized material
- Compare fragmentation consistency
- Document changes in terrain
- Support loading and hauling planning
- Compare the completed blast with the pre-blast model
- Build a historical record for future reviews
The captured imagery supports professional evaluation but does not replace physical site verification or assessment by qualified blasting personnel.
INSERT RAW POST-BLAST AERIAL IMAGE HERE
Post-blast aerial imagery provides a broader view of fragmented material across the blast area.
Evaluating Fragmentation Across the Blast Area
A structured post-blast review can help mining teams assess how the fragmented material varies across the site.
The evaluation process may include:
- Capturing aerial photographs after the area has been declared safe
- Mapping the extent of the fragmented material
- Identifying areas containing oversized rock
- Comparing different sections of the blast area
- Reviewing the results against the pre-blast terrain model
- Recording observations for future blast planning
Drone imagery creates a repeatable visual reference that can be compared across multiple blasts over time.
Comparing Pre-Blast and Post-Blast Conditions
One of the main benefits of a connected drone workflow is the ability to compare the site before and after blasting.
Pre-blast and post-blast surveys can help teams review:
- Changes in terrain
- Movement of fragmented material
- Blast-area boundaries
- Bench and slope conditions
- Loading access
- Areas containing oversized material
- The relationship between the planned and completed work
This comparison provides mining teams with a clearer record of the blast outcome and supports more informed planning for future operations.

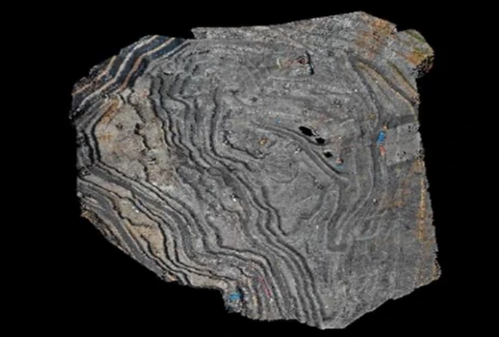

INSERT THREE-DIMENSIONAL MINE MODEL HERE
Three-dimensional site models provide additional spatial context for pre-blast planning and post-blast evaluation.
Supporting Safer Fieldwork
Blast areas can contain unstable ground, loose rock, steep benches, dust and moving heavy equipment.
Drone-based data collection allows teams to gather visual and spatial information without requiring personnel to enter every part of the site.
Potential safety benefits include:
- Reduced time spent in difficult terrain
- Remote observation of restricted areas
- Improved visibility of access routes
- Better documentation of site conditions
- Reduced exposure during initial post-blast assessment
- Additional information for authorised safety teams
Drones support the site-safety process but do not replace mine procedures, exclusion zones, ground inspections or professional safety decisions.
Better Information for Loading and Hauling
Fragmentation affects the processes that follow blasting.
Consistent fragmentation can help loading equipment work more efficiently and may reduce interruptions caused by oversized material.
Post-blast aerial information can help teams understand:
- Where loading should begin
- Whether access routes are clear
- Where oversized material may be located
- How fragmented material is distributed
- Whether additional inspection is needed
- How the terrain has changed after blasting
This provides useful information for coordinating drill, blast, loading and hauling teams.
Creating a Repeatable Digital Record
A major benefit of drone-based drill-and-blast workflows is the ability to create a repeatable digital record.
Each survey can contribute to a growing dataset that documents:
- Terrain before drilling
- Blast-area boundaries
- Drilling progress
- Pre-blast site conditions
- Post-blast fragmentation
- Changes in terrain
- Loading and hauling access
- Areas requiring further investigation
Over time, this information can help mining teams compare results, review operational patterns and improve coordination between departments.
Supporting Better Cost Control and Operational Efficiency
A connected drill-and-blast workflow can help reduce dependence on isolated measurements and improve the information available to mining teams.
Potential operational benefits include:
- Reduced manual surveying in active mining areas
- Better alignment between terrain data and blast plans
- Improved visibility of drilling progress
- More consistent post-blast evaluation
- Earlier identification of fragmentation issues
- Better comparison of planned and actual conditions
- Reduced secondary breaking and rework
- Improved coordination between mining teams
- Stronger historical records
- More informed planning for future blasts
Drone technology supports decision-making, but it does not replace qualified blasting professionals, physical site verification or the mine’s regulatory and safety requirements.
Better Data for Better Blasts
Drill-and-blast performance affects much more than the moment of detonation. It influences loading, hauling, crushing, processing, equipment productivity and the overall cost of mining.
By combining DJI Enterprise drones, high-precision positioning, aerial mapping, DJI Terra and post-blast imagery, GoUAV helps mining teams create a connected workflow from initial terrain capture through to post-blast evaluation.
This provides teams with a clearer understanding of:
- Existing terrain conditions
- The planned blast area
- Drilling and preparation progress
- Site activity and safety conditions
- The post-blast result
- Areas that may require additional investigation
For drill and blast, drone technology is not simply a faster way to capture images. It creates a repeatable digital record that supports safer fieldwork, informed planning, measurable evaluation and long-term operational improvement.
GoUAV supports DJI Enterprise solutions for mining surveying, terrain mapping, precise positioning, blast-area monitoring, three-dimensional modelling and connected drill-and-blast workflows across Southern Africa.
