Drones in Mining: Operations Management
DJI Geospatial Mining Solutions | Part 4 of 6
This is the fourth article in GoUAV’s six-part DJI Geospatial Mining Solutions series, examining how mining drones, aerial surveying and geospatial data can support the full mining lifecycle.
The series covers six key applications: exploration and construction, drill and blast, load and transport, mining operations management, safety monitoring, and mine reclamation and environmental monitoring.
In Part 4, we focus on how DJI Enterprise drone solutions can support mine-wide operations management through repeatable site surveys, production visibility, terrain monitoring, equipment-area awareness and more consistent digital records.
Mining operations change continuously. Active faces advance, stockpiles grow or deplete, haul roads shift, equipment moves and temporary risks develop between shifts. Current aerial data can help teams understand these changes and improve coordination between survey, production, maintenance, safety and management personnel.
Mining Industry Overview
Mining teams are under increasing pressure to improve productivity, manage operating costs, strengthen safety, and oversee large or remote sites more effectively. Accurate and timely site data has therefore become essential for better planning and decision-making.
Why Mining Operations Are Changing
Modern mining operations generate large volumes of information across survey, production, maintenance, safety and logistics teams.
However, this information is often collected through separate systems, at different intervals and in formats that do not provide a consistent view of current site conditions.
Traditional operational reporting may depend on shift narratives, manual inspections, isolated photographs and survey information collected only when personnel and equipment are available.
As mines become larger, deeper and more dynamic, teams increasingly need repeatable site data that can be collected efficiently, compared over time and shared across departments.
The Role of Drone Data in Operations Management
DJI Enterprise drones can provide a repeatable aerial view of active mine areas without requiring personnel to enter every operational zone on foot.
Depending on the aircraft, payload and processing workflow, drone data can support orthomosaic mapping, point-cloud generation, three-dimensional modelling, terrain analysis, volume assessment and visual documentation.
These outputs can contribute to a more connected operational picture and help mining teams compare planned activity with changing site conditions.
Drone Solutions Across the Mining Lifecycle
Mining operations management connects the information generated throughout the mining lifecycle and supports the daily coordination of production, survey, maintenance, safety and material-movement activities.
Operations Management
Exploration and Construction
Load and Transport
Safety Monitoring
Drill and Blast
Operation Management
Reclamation
Key Challenges in Mining Operations Management
Shift Handover
Critical hazards, temporary controls and operational changes may be communicated inconsistently between shifts, increasing the risk of repeated exposure or incomplete follow-through.
Equipment Readiness
Machine condition, operating-area access and temporary risks may be reviewed unevenly, making available equipment not always immediately ready for safe deployment.
Limited Transparency
Without current maps, dashboards or repeatable survey information, teams may struggle to obtain a shared view of production progress and changing site conditions.
Disconnected Workflows
Survey, production, maintenance and safety information may remain separated, making it difficult to connect field conditions with operational planning and management decisions.
Creating a Repeatable Operational Picture
Operations management depends on understanding what has changed, where it has changed and how those changes may affect production, safety or access.
Repeatable drone surveys can provide time-stamped aerial records of active mine areas, including working faces, haul roads, stockpiles, benches, slopes and temporary operational zones.
When surveys follow consistent flight plans and processing methods, teams can compare current conditions with previous datasets and identify visible differences more efficiently.
Supporting Better Shift Handover
A current aerial map or three-dimensional model can provide a shared visual reference during shift handover.
This can help teams communicate changes in access routes, active loading areas, temporary obstructions, maintenance zones, stockpile boundaries and terrain conditions.
Drone data does not replace authorised handover procedures. It provides an additional visual record that can make operational updates easier to understand and verify.
Repeatable aerial surveys can provide a shared and time-stamped view of active faces, haul roads, stockpiles and changing operational areas.
Production Visibility Through Repeatable Surveys
Mining managers often require information that extends beyond verbal shift reports.
Repeatable aerial surveys can support visibility of active faces, pit advancement, material areas, haul-road changes, stockpile growth or depletion and other visible production indicators.
When processed consistently, survey outputs can help teams compare current conditions with planned activity and previous survey periods.
Daily or High-Frequency Site Snapshots
The appropriate survey frequency depends on the size of the mine, operational tempo, required outputs, aviation approvals and available processing capacity.
Some sites require weekly or milestone-based surveys, while highly dynamic areas may benefit from more frequent capture.
Automated drone-in-a-box solutions such as DJI Dock 3 can support scheduled and repeatable missions where the site, approvals and operational procedures allow remotely managed operations.
Current aerial and site imagery can give mining teams greater visibility of active production areas, equipment activity and changing operational conditions.
Supporting Volume and Tonnage Reconciliation
Production reporting often requires teams to understand how much material has moved between survey periods.
Drone-derived surface models can support the calculation of cut-and-fill differences, stockpile changes and other measurable surface-volume variations.
Where agreed density factors and validated survey methods are available, volume information may contribute to tonnage reconciliation and production reporting.
The accuracy of these calculations depends on positioning, flight planning, surface visibility, ground control, processing methods and professional validation.
Building Consistent Baselines
Reliable change analysis requires surveys to be compared against consistent and appropriately validated baseline surfaces.
Using repeatable capture and processing workflows helps reduce unnecessary variation between datasets and provides a clearer basis for identifying genuine site changes.
Survey outputs should be reviewed by suitably qualified personnel before they are used for contractual measurement, reconciliation or operational decision-making.

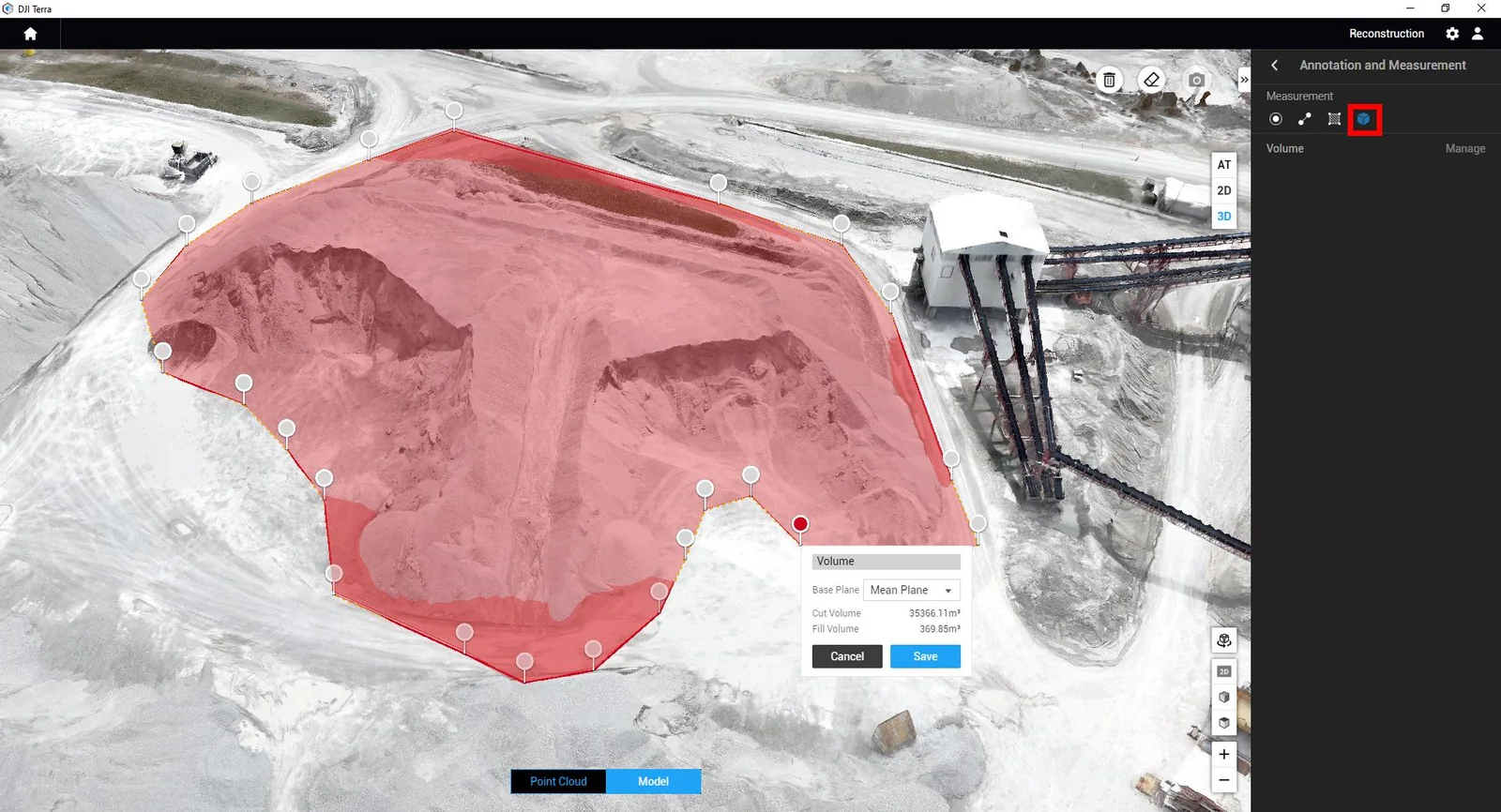

DJI Terra can apply volumetric measurement tools to reconstructed surfaces to support stockpile assessment, change analysis and validated production reporting.
Large-Scale Mine Surveying with DJI Enterprise

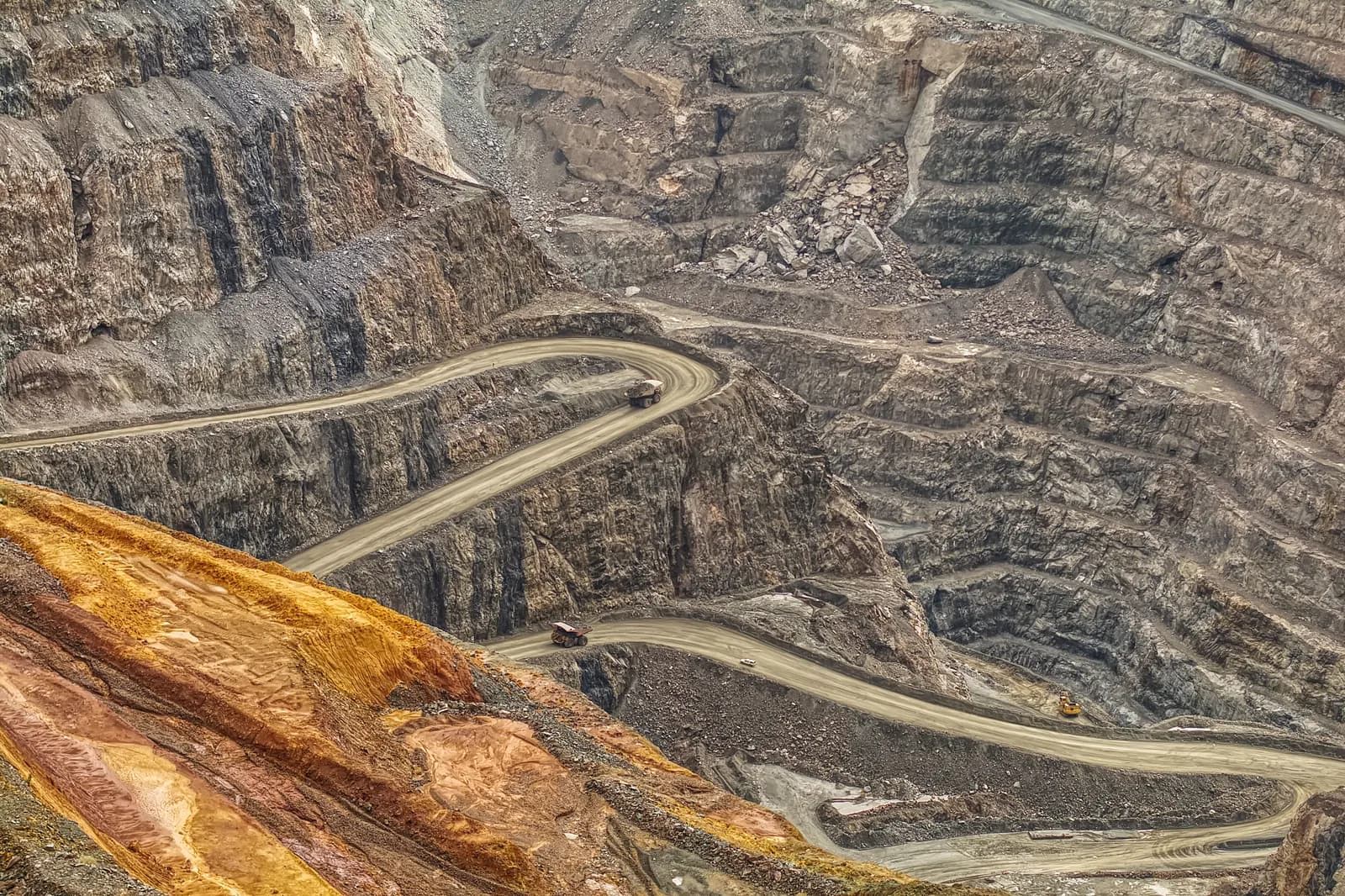

Large and deep open-pit mines can create significant challenges for conventional field inspection and survey activity.
Long travel distances, high walls, restricted access and active machinery may limit the areas that can be assessed safely from the ground.
DJI Enterprise aircraft and mapping payloads can support aerial data collection across extensive mine areas while reducing the need for personnel to enter every survey zone.
Aerial surveying can provide a broad view of extensive mine areas, helping teams document complex terrain and operational zones that may be difficult to assess safely from the ground.
DJI Matrice 400 and Zenmuse L3
For large-scale or complex mine surveying, the DJI Matrice 400 can be paired with the Zenmuse L3 LiDAR payload and DJI positioning solutions.
This combination can support the capture of detailed point-cloud information across benches, high walls, stockpiles and complex terrain.
LiDAR data can be particularly valuable where detailed surface geometry, elevation information and terrain modelling are required.
The most appropriate configuration depends on the site, required accuracy, surface conditions, flight constraints and final data outputs.

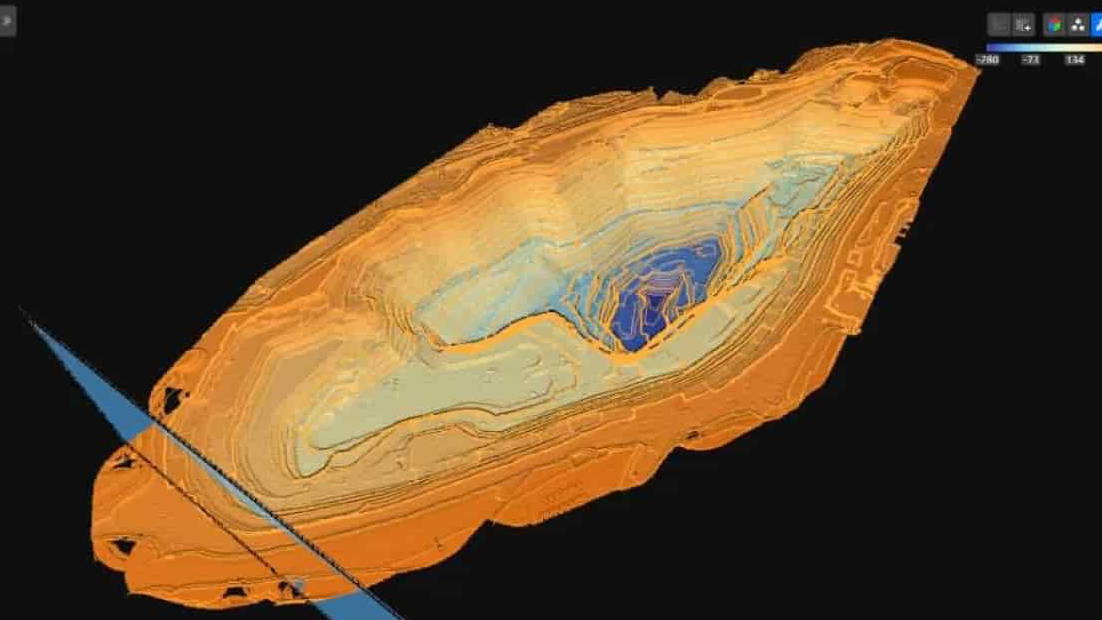

DJI Matrice 400 and Zenmuse L3 can support detailed point-cloud capture and three-dimensional terrain modelling across large and complex mining sites.
Processing Operational Data with DJI Terra
Data captured by DJI Enterprise drones can be processed in DJI Terra to generate outputs such as orthomosaic maps, point clouds, digital surface models and three-dimensional reconstructions.
These outputs can help operations teams review terrain, compare survey periods, measure visible surface changes and maintain updated digital records of the mine.
DJI Terra outputs can also be exported in standard formats for use in compatible survey, GIS, engineering and mine-management systems.
Elevation profiles can help authorised teams review terrain height, gradients and vertical changes across selected mine sections.
From Field Capture to Operational Insight
A connected workflow begins with a clearly defined operational question.
The site is then surveyed using an appropriate DJI Enterprise platform and flight plan. Captured data is processed, reviewed for completeness and compared with approved baselines or previous surveys.
Relevant findings can then be shared with survey, production, maintenance, safety and management teams.
The greatest value comes from repeating this process consistently so that teams can monitor visible changes and maintain an auditable record over time.
Monitoring Surface Change and Geotechnical Risk
Surface cracks, slope changes, subsidence, erosion and drainage conditions can create serious operational and safety risks at mining sites.
Manual inspection of large, unstable or difficult-to-access areas can be resource-intensive and hazardous.
Repeatable drone surveys can provide aerial imagery and terrain models that support the documentation of visible cracks, surface deformation, drainage changes and changing terrain conditions.

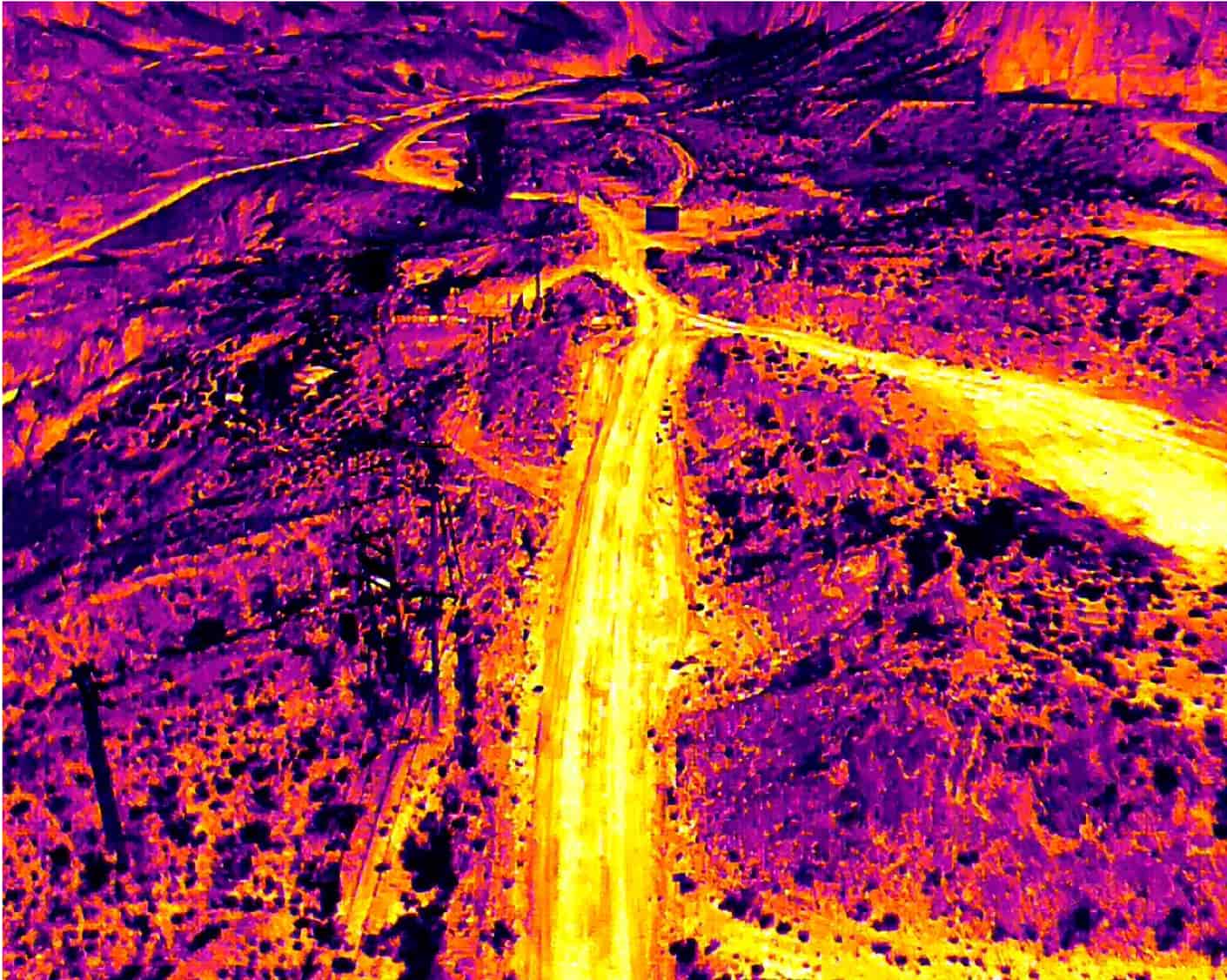

Thermal aerial imagery can provide an additional layer of site information for authorised teams reviewing surface conditions and areas that may require closer investigation.
Supporting Repeatable Terrain Monitoring
Operational productivity and site safety should not be treated as separate objectives.
Current aerial data can help teams identify access constraints, temporary obstructions, terrain changes and areas requiring closer inspection before personnel or equipment are deployed.
This can support more informed planning without requiring teams to depend only on verbal reports or outdated site information.
Automated Monitoring with DJI Dock 3
DJI Dock 3 can support repeatable and remotely managed drone missions for sites that require regular monitoring of defined operational areas.
Scheduled missions may help teams maintain a more consistent record of surface conditions, active areas and visible changes between survey periods.
Where unexpected events occur, approved missions may also support additional site capture once aviation, weather and operational conditions allow.

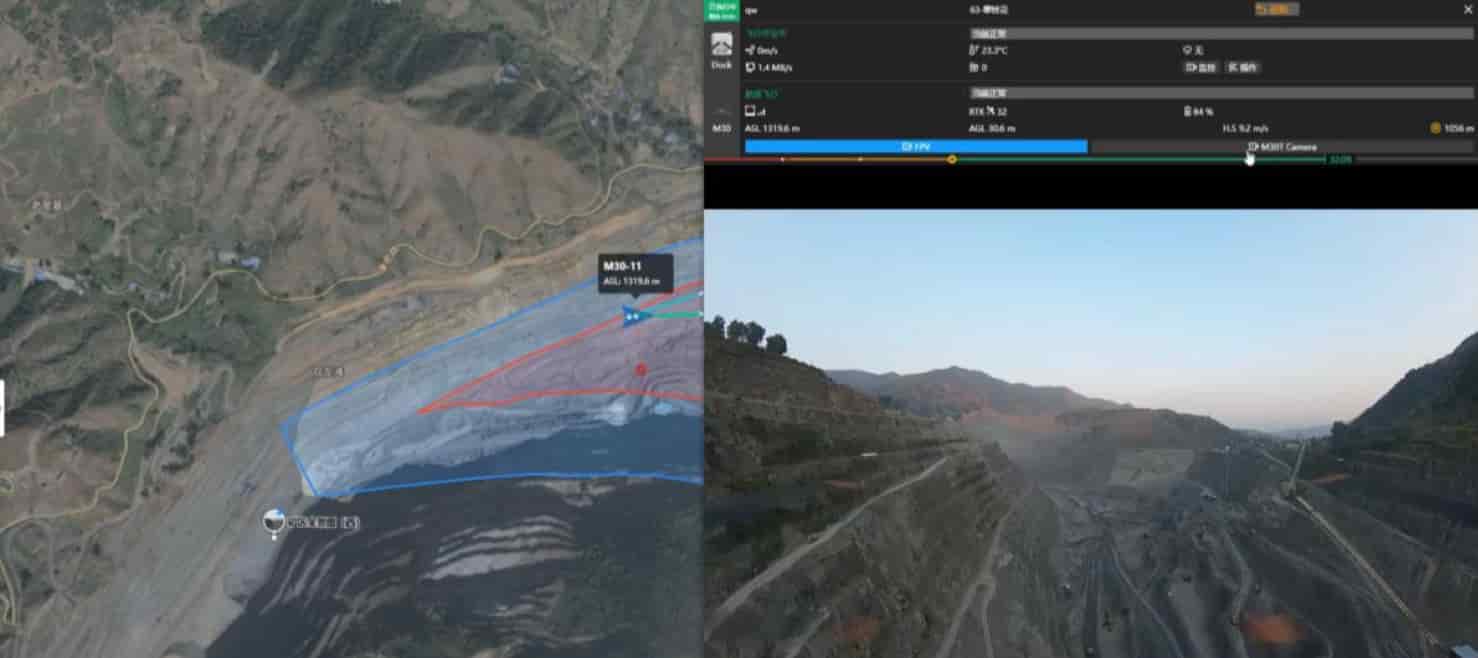

DJI Dock 3 can support scheduled and repeatable missions for monitoring defined operational areas where aviation approvals and mine procedures permit.
Connecting Dock Data with Mine Systems
Drone imagery and processed survey outputs may be shared with compatible cloud, GIS, engineering or mine-management systems.
This can help connect field data with existing planning, monitoring and reporting workflows.
Any integration should be designed around the mine’s approved systems, cybersecurity requirements, data ownership, professional responsibilities and operational procedures.
Turning Surface Change into Production Information
Processed point clouds, three-dimensional models and surface comparisons can help teams identify visible gains, losses and changes across active mine areas.
These findings may support the review of pit advancement, cut-and-fill activity, stockpile changes, haul-road development and other production indicators.
Where validated measurement procedures and agreed density factors are used, volume differences may contribute to daily or periodic tonnage reconciliation.
The final outputs should always be reviewed against the mine’s professional survey, production and reporting requirements.
Supporting Safety-Driven Production Management
Processed point clouds, three-dimensional models and surface comparisons can help teams identify visible gains, losses and changes across active mine areas.
These findings may support the review of pit advancement, cut-and-fill activity, stockpile changes, haul-road development and other production indicators.
Where validated measurement procedures and agreed density factors are used, volume differences may contribute to daily or periodic tonnage reconciliation.
The final outputs should always be reviewed against the mine’s professional survey, production and reporting requirements.
Potential operational benefits
Improved visibility during shift handover
More consistent records of active mine areas
A stronger digital record for management review
Earlier identification of visible terrain or access changes
Better coordination between survey, production, maintenance and safety teams
Repeatable comparison of stockpiles, faces, roads and operational areas
More informed production reporting and reconciliation
Reduced unnecessary exposure during broad site inspection
Drone surveys support operations management but do not replace mine procedures, engineering assessments, professional survey controls, equipment inspections, traffic-management plans or authorised safety decisions.
A Connected Digital Record of Mine Operations
Each repeat survey can contribute to a growing digital record of the mine.
This record may document active faces, pit advancement, haul-road changes, loading areas, stockpile boundaries, material movement, terrain changes, drainage conditions, maintenance interventions and areas requiring further investigation.
Over time, comparable datasets can help mining teams identify recurring patterns, review operational outcomes and improve communication between departments.
Better Information for More Coordinated Mine Operations
Drone technology is not only a method of capturing aerial photographs.
When integrated into a repeatable and professionally managed workflow, it can support a more current and connected view of mine operations.
DJI Enterprise drones, positioning solutions and processing software can help teams collect consistent site information, compare changes and share relevant outputs across survey, production, maintenance, safety and management functions.
The result is not automatic decision-making. It is a stronger information foundation for authorised teams to plan, investigate and coordinate mine activity.
More Visible, Repeatable and Connected Mine Management
Effective mining operations management depends on reliable information about current site conditions and visible changes between shifts and survey periods.
By combining DJI Enterprise drones, automated missions, LiDAR or photogrammetry capture, precise positioning and DJI Terra processing, mining teams can develop more repeatable digital records across large and complex sites.
These workflows can support production visibility, volume assessment, terrain monitoring, shift communication and better coordination between operational departments.
GoUAV supports DJI Enterprise drone solutions for mine surveying, automated monitoring, production visibility, terrain modelling and repeatable operational data capture across South Africa and Southern Africa.
