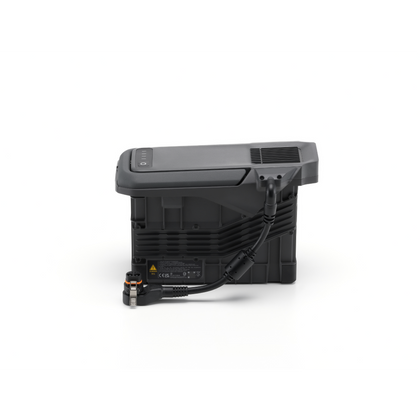

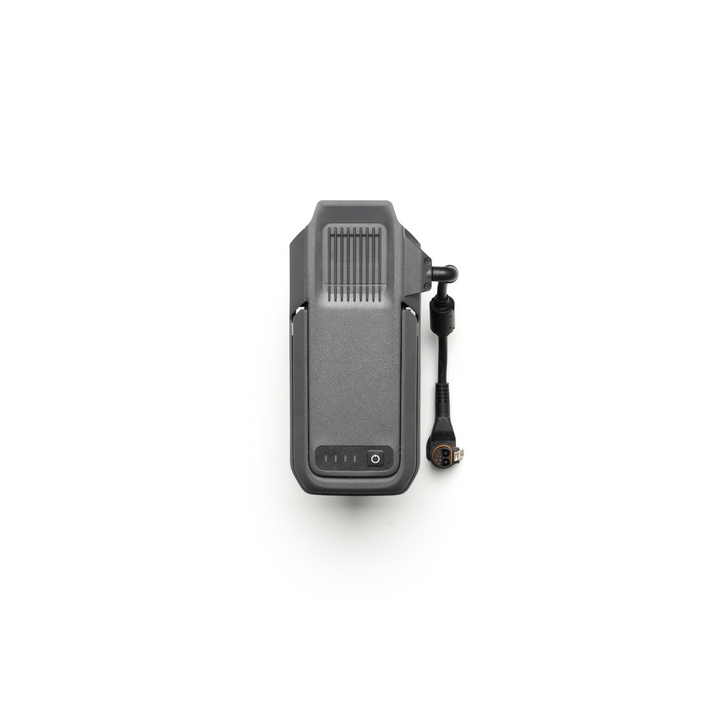

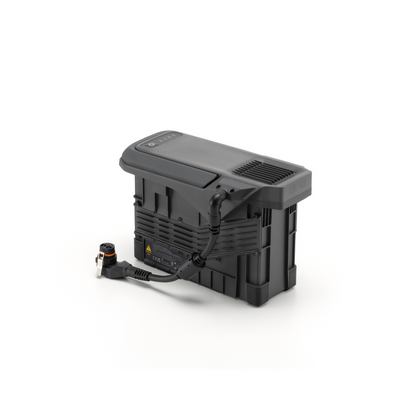

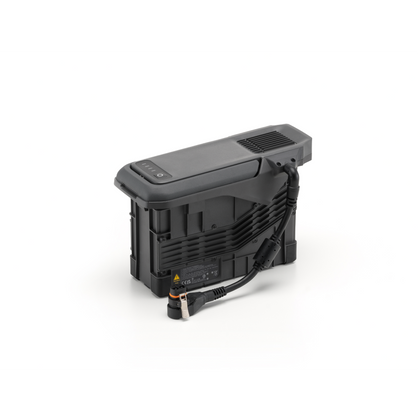

The DJI TB100C Tethered Battery is the tethered power variant built for the DJI Matrice 400. Connected through its tether, it supplies continuous power while tethered so your aircraft can stay airborne for persistent monitoring and extended station-keeping missions.
Continuous tethered power
Delivers continuous power to the DJI Matrice 400 while the aircraft is tethered. It is designed for sustained operations rather than a single flight on internal charge.
20254 mAh Li-ion cell
A 20254 mAh Li-ion battery using a LiNiMnCoO2 chemical system, engineered for the Matrice 400 platform.
Fast station charging
Compatible with the DJI BS100 Intelligent Battery Station, which charges the TB100 and TB100C from 0 to 100 percent in 45 minutes at 220 V in Fast Charging Mode.
Purpose-built for tethered operations
The TB100C is a dedicated tethered battery for the DJI Matrice 400. Instead of relying on an onboard charge for a limited flight window, it is supplied with power through the tether to keep the aircraft running for persistent surveillance, security overwatch and extended inspection tasks. The TB100C provides continuous power while tethered.
Note that the DJI Matrice 400 uses a single battery, and the TB100C is purpose-made for this role.
Managed charging and handling
The TB100C is one of the supported batteries of the DJI BS100 Intelligent Battery Station, alongside the TB100 Intelligent Flight Battery and the WB37 battery. Through the BS100, the TB100 and TB100C can be charged from 0 to 100 percent in 45 minutes at 220 V in Fast Charging Mode.

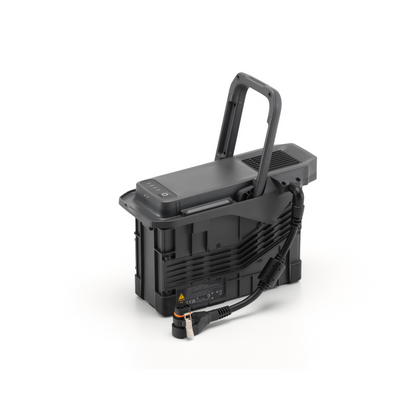

The recommended charging temperature range is 5 to 45 C (41 to 113 F). The integrated handle makes transport and station mounting straightforward.
Specifications
| Model | TB100C-20254-48.23 |
|---|---|
| Capacity | 20254 mAh |
| Battery Type | Li-ion |
| Chemical System | LiNiMnCoO2 |
| Charging Temperature | 5 to 45 C (41 to 113 F) |
| Compatibility | DJI BS100 Intelligent Battery Station |
| BS100 charging time (TB100 / TB100C) | 0 to 100 percent in 45 minutes at 220 V (Fast Charging Mode) |
Compatibility and FAQ
Is the TB100C the same as the TB100 Intelligent Flight Battery?
No. The TB100C is the tethered variant and is a distinct product from the DJI TB100 Intelligent Flight Battery. The TB100 is a standard intelligent flight battery, while the TB100C is designed to supply continuous power while tethered. Do not conflate the two.
Which aircraft does the TB100C work with?
The TB100C is a DJI Matrice 400 accessory that provides tethered continuous power. The DJI Matrice 400 uses a single battery.
How is the TB100C charged?
The TB100C is supported by the DJI BS100 Intelligent Battery Station. Via the BS100, the TB100 and TB100C charge from 0 to 100 percent in 45 minutes at 220 V in Fast Charging Mode. The charging temperature range is 5 to 45 C (41 to 113 F).
Does the TB100C allow unlimited flight time?
No. The TB100C provides continuous power while the aircraft is tethered. It does not promise indefinite or unlimited flight; actual operation depends on your tethered setup and operating conditions.
